| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T900-M6x25 | STUDS M6x25 | 1 | 915324-0625 |
| 2 | GB/T900-M6x30 | STUDS M6x30 | 1 | 915324-0630 |
| 3 | T18-05000037 | GASKET B,INTAKE MANIFOLD | 1 | 350-02105-3 |
| 4 | T18-05000100 | INTAKE MANIFOLD ASSY | 1 | 362-02100-1 |
| 5 | GB/T818-M3x6 | SCREW M3x6 | 6 | |
| 6 | GB/T93-3 | WASHER, SPRING 3 | 6 | |
| 7 | T18-05000103 | LIMITATIVE PLATE,VALVE | 2 | |
| 8 | T18-05000102 | VALVE,INTAKE | 2 | |
| 9 | T18-05000101 | SEAT,INTAKE MANIFOLD | 1 | |
| 10 | T18-05000001 | GASKET A,INTAKE MANIFOLD | 1 | 350-02104-2 |
| 11 | GB/T6170-M8 | NUT M8 | 1 | 930103-0800 |
| 12 | GB/T97.1-8 | WAHSER 8 | 1 | 334-66233-0 |
| 13 | T18-05000031 | TIE-IN,CONNECTING ROD | 1 | 350-03176-0 |
| 14 | GB 29.2-M5x6 | BOLT M5x6 | 1 | 910903-0506 |
| 15 | T18-05000300 | ROCKER ARM ASSY,THROTTLE | 1 | 3M2-03167-0 |
| 16 | T18-05000030 | CONNECTING ROD,CARBURETOR | 1 | 350-03174-0 |
| 17 | GB/T818-M6x20 | SCREW M6x20 | 1 | 9215F1-0620 |
| 18 | GB/T5783-M6x35 | BOLT M6x35 | 1 | 916124-0635 |
| 19 | GB/T97.1-6 | WASHER 6 | 9 | 940121-0600 |
| 20 | T18-05010103 | AIR TAP | 1 | 338-01131-1 |
| 21 | GB/T5782-M6x28 | BOLT M6x28 | 4 | 916124-0628 |
| 22 | T18-05000002 | INTAKE MANIFOLD | 1 | 3M2B02010-1 |
| 23 | GB/T6170-M6 | NUT M6 | 2 | 930121-0600 |
| 24 | GB/T97.1-5 | WASHER 5 | 1 | 941303-0500 |
| 25 | GB/T5782-M5x50 | BOLT M5x50 | 1 | 916103-0550 |
| 26 | F15-07080000 | FUEL FILTER ASSY | 1 | 3AD-02230-0 |
| 27 | F15-07080001 | ELEMENT, FILTER | 1 | |
| 28 | GB/T3452.1-33X2.0 | SEAL,FILTER CUP | 1 | |
| 29 | F15-07080002 | CUP, FILTER | 1 | |
| 30 | F4-04000030 | CLIP SPRING B | 2 | 338-02215-0 |
| 31 | T18-05000041 | FUEL HOSE | 1 | 98AB-50-220 |
| 32 | GB/T5782-M6x80 | BOLT M6x80 | 2 | 916103-0680 |
| 33 | T18-05000904 | GASKET,INTAKE SILENCER | 1 | 3G2-02414-1 |
| 34 | T18-05000901 | INTAKE SILENCER | 1 | 3G2-02411-0 |
| 35 | GB/T818-M5x12 | SCREW M5x12 | 2 | 922553-0512 |
| 36 | F2.6-05000004 | RUBBER PLUG, CIRCULAR | 1 | 345-67117-0 |
| 37 | T18-05000902 | CHOCK LEVER ASSY | 1 | 3G2-67152-0 |
| 38 | GB/T896-5 | CIRCLIP 5 | 1 | |
| 39 | T18-05000903 | PIN,CHOCK LEVER | 1 |

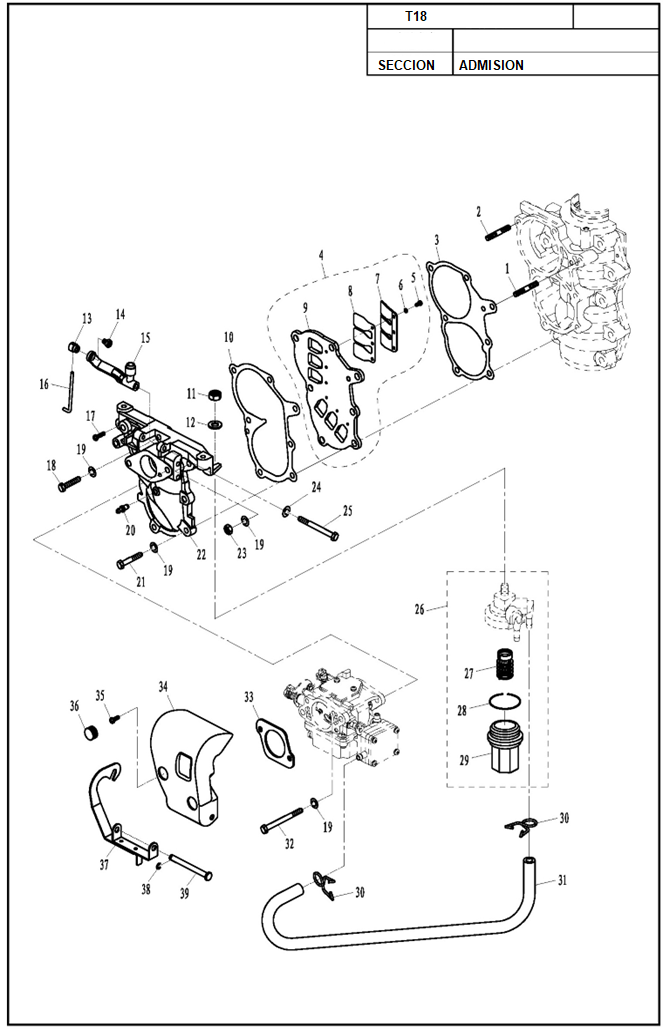

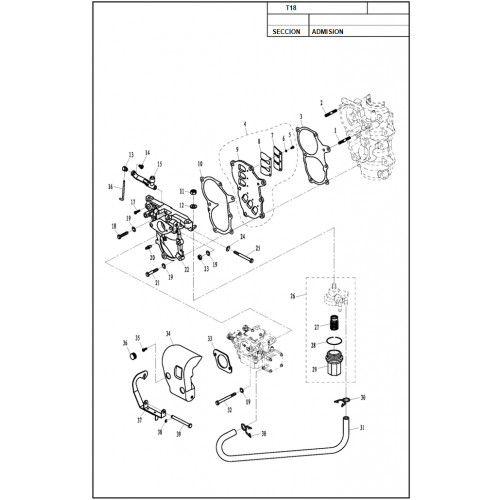

DIAGRAMA T18 ADMISION
- Marcas DERMA MARINE
- Código: DIAGRAMA T18 ADMISION
