| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | T18-05020001 | OIL SEAL 25x45x8 | 1 | 350-00121-0 |
| 2 | T18-05020100 | CRANKSHAFT ROD ASSY | 1 | 3M2-00069-1 |
| 3 | GB/T276-6305 | DEEP GROOVE BALL BEARING 6305 | 1 | 9603-3-6305 |
| 4 | T18-05020102 | PIN,CRANK | 2 | 350-00061-1 |
| 5 | T18-05020101 | BLOCK,SWING A | 1 | 3M2-00031-1 |
| 6 | T18-05020103 | NEEDLE BEARING 20x26x15.7 | 2 | 3G4-00043-0 |
| 7 | T18-05020104 | CONNECTING ROD | 2 | 350-00040-0 |
| 8 | T18-05020105 | BLOCK,SWING B | 1 | 350-00032-1 |
| 9 | T18-05020106 | SEAL RING | 1 | 350-00051-1 |
| 10 | T18-05020107 | BLOCK,SWING C | 1 | 350-00033-1 |
| 11 | T5-05020106 | JAM, SWING BLOCK | 1 | 0.00 |
| 12 | T18-05020108 | BLOCK,SWING D | 1 | 350-00034-2 |
| 13 | T18-05020109 | WASHER,BEARING | 1 | 3LD-00121-0 |
| 14 | GB/T894.1-25 | CIRCLIP 25 | 1 | 0.00 |
| 15 | T18-05020002 | LOCATING WASHER,CRANKSHAFT | 1 | |
| 16 | T18-05020008 | WASHER,PISTON | 4 | 3LD-00046-0 |
| 17 | T15-04020206 | NEEDLE BEARING 2X13.8 | 50 | 3LD-00090-0 |
| 18 | GB/T895.1-14 | CIRCLIP 14 | 4 | 350-00024-1 |
| 19 | T18-05020005 | PIN,PISTON | 2 | 350-00021-1 |
| 20 | T18-05020003 | PISTON | 2 | 3LD-00001-0 |
| 21 | T18-05020004 | PISTON RING ASSY | 2 | 3LD-87124-1 |
| 22 | T18-05020200 | CASING ASSY,OIL SEAL | 1 | |
| 23 | T6-05020107 | OIL SEAL 25x47x7.5 | 1 | |
| 24 | F15-04000008 | OIL SEAL 13x25x6 | 1 | |
| 25 | T18-05020201 | CASING,OIL SEAL | 1 | |
| 26 | T18-05020204 | COLLAR | 1 | |
| 27 | GB/T3452.1-2x56 | O-RING 2x56 | 1 |

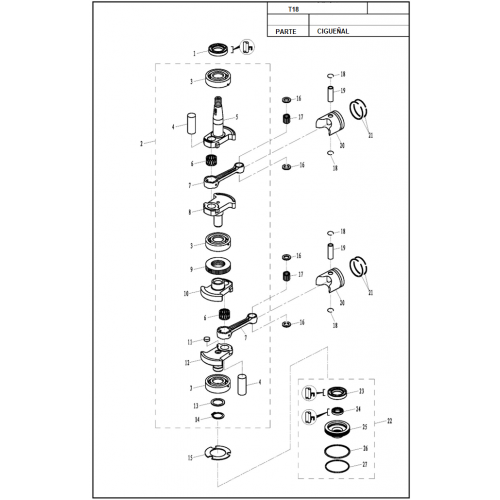

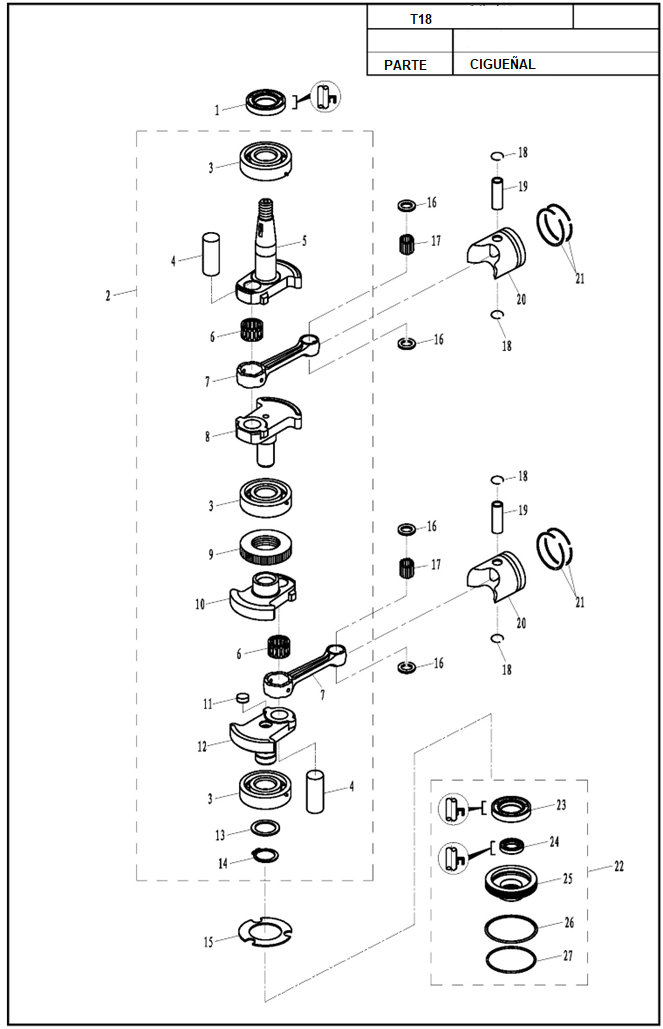

DIAGRAMA T18 CIGUEÑAL
- Marcas DERMA MARINE
- Código: DIAGRAMA T18 CIGUEÑAL
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
