| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-05000043 | BOLT | 2 | |
| 2 | F115-05000042 | BRACKET A, STARTER MOTOR | 1 | 6EK-81822-00 |
| 3 | F20-05000038 | HOLLOW PIN 11x8.5x11 | 2 | |
| 4 | F115-05000600 | STARTER MOTOR | 1 | 6EM-81800-00 |
| 5 | GB/T97.1-8 | WAHSER 8 | 4 | 92995-08100 |
| 6 | GB/T5782-M8x45 | BOLT M8x45 | 3 | |
| 7 | F40-05000042EFI | OIL PRESSURE SENSOR | 1 | |
| 8 | F115-05030020 | PIN 55x10 | 1 | |
| 9 | F115-05000044 | BRACKET B, STARTUP MOTOR | 1 | 6EK-81823-00 |
| 10 | GB/T5783-M8x30 | BOLT M8x30 | 1 | 90119-08102 |
| 11 | GB/T818-M4x10 | SCREW M4x10 | 1 | |
| 12 | F115-05000601 | JACKET, WIRE | 1 | |
| 13 | F25-05170201W | JACKET A, POWER CABLE | 1 | |
| 14 | F115-05000112 | POWER CABLE ASSY | 1 | |
| 15 | GB/T5783-M6x12 | BOLT M6x12 | 2 | |
| 16 | T85-05030004 | EARTH WIRE BLACK | 1 | |
| 17 | GB/T96-8 | BIG WASHER 8 | 1 | |
| 18 | F115-05000500 | KNOCK SENEOR | 1 | 6CJ-85780-00 |
| 19 | F115-05000501 | CONNECTING LINE,KNOCK SENEOR | 1 | 6DA-82553-00 |
| 20 | F40-05000400 | THERMOSENSOR ASSY | 1 | |
| 21 | GB/T3452.1-8x1.9 | O-RING 8x1.9 | 1 |

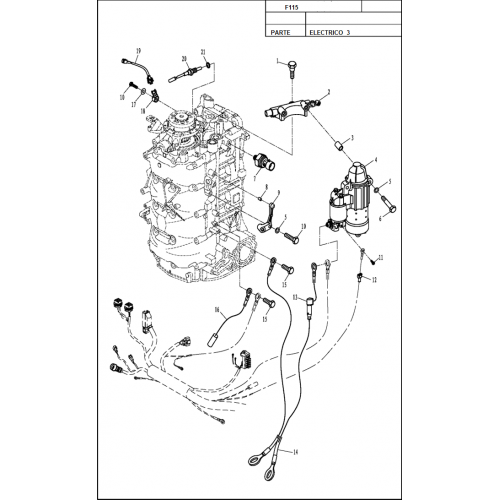

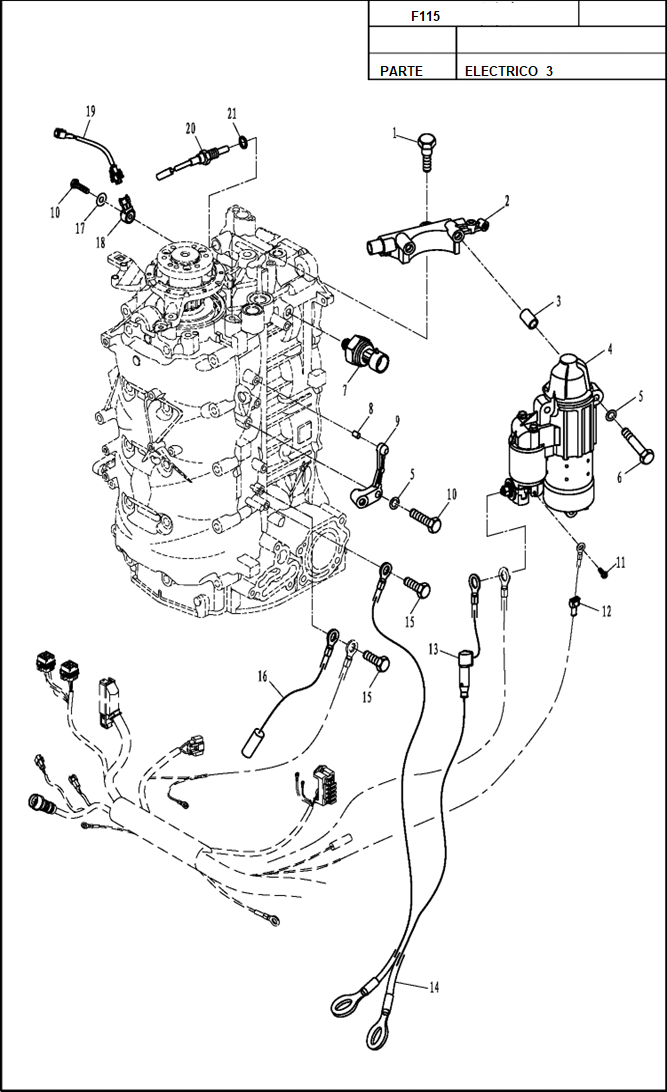

F115 DIAGRAMA DE ELECTRICO 3
- Marcas DERMA MARINE
- Código: F115 DIAGRAMA DE ELECTRICO 3
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
$0,00MXN
- Sin impuestos: $0,00MXN
