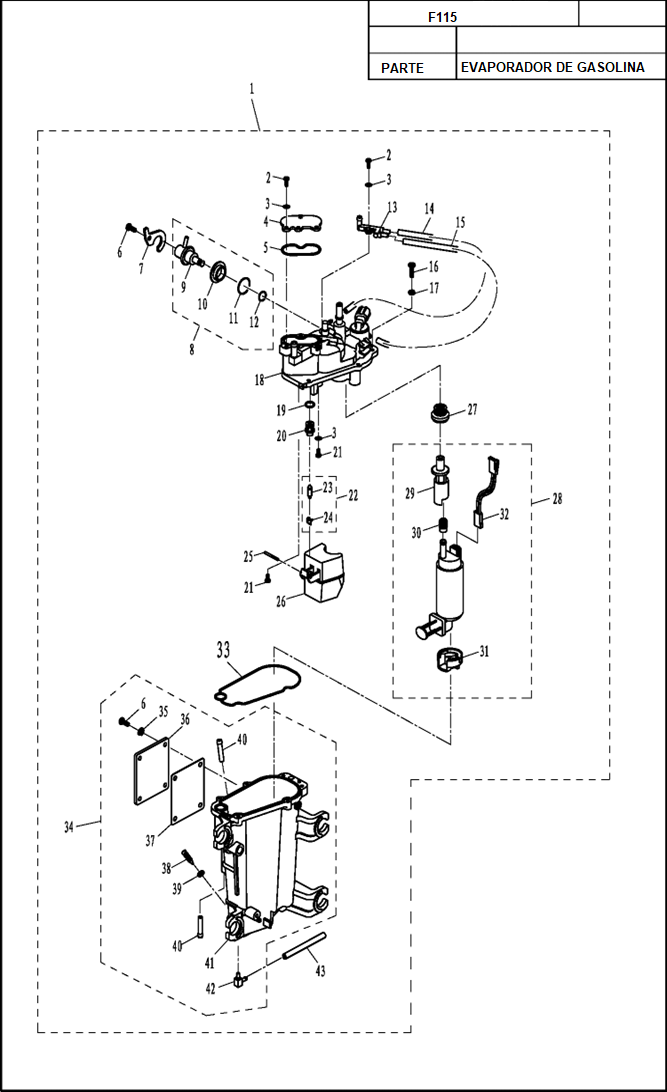

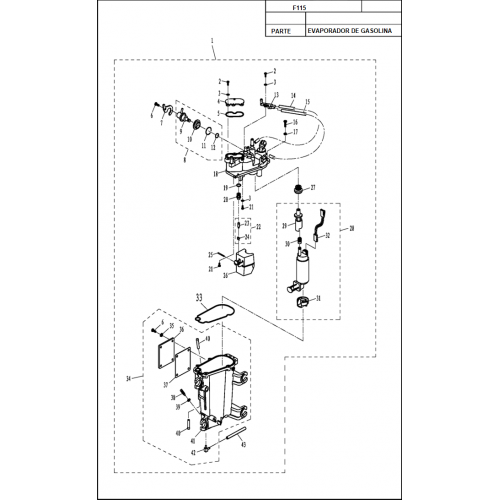

| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-05050000 | ELECTRIC FUEL PUMP ASSY | 1 | 6EK-14180-00 |
| 2 | GB/T818-M4x12 | SCREW M4x12 | 4 | |
| 3 | GB/T96-4 | WASHER 4 | 5 | |
| 4 | F115-05050006 | PLATE | 1 | |
| 5 | F115-05050007 | SEAL, PLATE | 1 | |
| 6 | GB/T818-M5x12 | SCREW M5x12 | 5 | 97885-05012 |
| 7 | F115-05050013 | PLATE, PRESSURE VALVE | 1 | |
| 8 | F115-05050008 | PRESSURE VALVE ASSY | 1 | 6CB-13906-01 |
| 9 | F115-05050009 | PRESSURE VALVE | 1 | |
| 10 | F115-05050012 | BUSH, PRESSURE VALVE | 1 | |
| 11 | F115-05050010 | O-RING A | 1 | |
| 12 | F115-05050011 | O-RING B | 1 | |
| 13 | F115-05050014 | THREE WAY, OIL PUMP | 1 | |
| 14 | F115-05050015 | HOSE A | 1 | |
| 15 | F115-05050016 | HOSE B | 1 | |
| 16 | GB/T818-M4x16 | SCREW M4x16 | 6 | |
| 17 | GB/T93-4 | WASHER,SPRING 4 | 6 | |
| 18 | F115-05050100 | BODY, ELECTRIC FUEL PUMP | 1 | |
| 19 | F115-05050002 | O-RING 8.08x1.5 | 1 | |
| 20 | F115-05050001 | SEAT, NEEDLE VALVE | 1 | |
| 21 | GB/T818-M4x8 | SCREW M4x8 | 2 | 68580-04008 |
| 22 | F115-05050200 | NEEDLE VALVE ASSY | 1 | |
| 23 | F115-05050201 | NEEDLE VALVE | 1 | 6CB-14546-00 |
| 24 | F115-05050202 | SPRING, NEEDLE VALVE | 1 | |
| 25 | F40-05100002EFI | PIN, FLOAT | 1 | |
| 26 | F115-05050003 | FLOAT | 1 | 6CB-14985-00 |
| 27 | F115-05050301 | RUBBER SLEEVE, FUEL PUMP | 1 | 6CB-1447B-00 |
| 28 | F115-05050300 | ELECTRIC FUL PUMP | 1 | 68V-13907-20 |
| 29 | F115-05050303 | LINKER, FUEL PUMP | 1 | |
| 30 | F115-05050304 | RUBBER SLEEVE, LINKER | 1 | |
| 31 | F115-05050302 | RUBBER PAD, FUEL PUMP | 1 | |
| 32 | F115-05050305 | WIRE, FUEL PUMP | 1 | |
| 33 | F115-05050402 | GASKET, FLOAT CHAMBER | 1 | |
| 34 | F115-05050400 | CUP, ELECTRIC FUEL PUMP | 1 | |
| 35 | GB/T93-5 | WASHER, SPRING 5 | 4 | |
| 36 | F115-05050407 | COOLER COVER | 1 | |
| 37 | F115-05050408 | GASKET, COOLER COVER | 11 | 6CB-24482-00 |
| 38 | F115-05050406 | DRAIN BOLT | 1 | |
| 39 | F115-05050409 | O-RING, DRAIN BOLT | 1 | |
| 40 | F115-05050403 | JOINT, COOLER COVER | 2 | |
| 41 | F115-05050401 | CUP, ELECTRIC FUEL PUMP | 1 | |
| 42 | F115-05050404 | DRAIN BOLT | 1 | |
| 43 | F115-05050405 | HOSE, DRAIN | 1 |
F115 DIAGRAMA DE EVAPORADOR DE GASOLINA
- Marcas DERMA MARINE
- Código: F115 DIAGRAMA DE EVAPORADOR DE GASOLINA
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
