| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-06000000 | POWER TRIM&TILT ASSY | 1 | 6EK-43800-02 |
| 2 | F115-06010000 | PISTON ASSY | 1 | |
| 3 | F115-06010100 | PISTON SHAFT ASSY | 1 | |
| 4 | T85-06020003 | OIL SEAL A 18x26x5 | 1 | 6H1-43812-00 |
| 5 | F115-06010003 | NUT | 1 | |
| 6 | GB/T3452.1-64x3 | O-RING 64x3 | 1 | |
| 7 | T85-06020015 | O-RING 17.5x2.65 | 3 | |
| 8 | F115-06010200 | COVER ASSY | 1 | |
| 9 | F115-06010201 | COVER, HYDRAULIC CYLINDER | 1 | |
| 10 | JISB-2407-P60T2 | CLIP | 1 | |
| 11 | JISB-2401-P60 | O-RING 59.4x3.1 | 1 | |
| 12 | GB/T70.1-M1.6x8 | BOLT M1.6x8 BLACK | 1 | |
| 13 | F60-06010204 | BEARING BALL 3/16 | 8 | |
| 14 | GB/T876-3x3 | HOLLOW RIVET 3x3 | 2 | |
| 15 | F60-06010203 | SPRING, CHECK VALVE | 2 | |
| 16 | T85-06010403 | THRUST WASHER | 2 | |
| 17 | F115-06010300 | PISTON ASSY | 1 | |
| 18 | T85-06020202 | BEARING BALL 4 | 11 | |
| 19 | F115-06010301 | PISTON | 1 | |
| 20 | GB/T879.4-1.5x12 | PIN 1.5x12 | 1 | |
| 21 | T85-06020005 | SEAT, SPRING | 4 | |
| 22 | T85-06020014 | SPRING | 4 | |
| 23 | T85-06020006 | ROLLER 2.5x11.8 | 4 | |
| 24 | JISB-2407-P39T2 | CIRCLIP P39T2 | 2 | |
| 25 | JISB-2407-P40T2 | CLIP | 1 | |
| 26 | F115-06010005 | BLOCK, PLATE | 1 | |
| 27 | GB/T70.1-M6x12 | BOLT M6x12 | 1 | |
| 28 | JISFG-53 | O-RING 53x2 | 1 | |
| 29 | F115-06000101 | CYLINDER, PISTON | 1 | |
| 30 | F115-06000200 | FREE PISTON ASSY | 1 | |
| 31 | F115-06000201 | FREE PISTON | 1 | |
| 32 | F115-06000102 | SNAP RING | 1 | |
| 33 | F115-06010001 | SEAT, HYDRAULIC CYLINDER | 1 | |
| 34 | F60-06000003 | SPRING | 3 | |
| 35 | F115-06010002 | PLATE | 1 | |
| 36 | GB/T893.1-48 | CIRCLIP 48 | 1 | |
| 37 | T85-06010002 | BLOCK, CYLINDER 1/16 | 3 | |
| 38 | F115-06000001 | HYDRAULIC HOUSING | 1 | |
| 39 | GB/T3452.1-9x2.2 | O-RING 9x2.2 | 1 | |
| 40 | T85-06010009 | SCREW, DRAIN | 1 | 6H1-43829-00 |
| 41 | F60-06000005 | SCREW, MANUAL RELEASE | 1 | |
| 42 | GB/T893.1-20 | CIRCLIP 20 | 1 | 6H1-43875-00 |
| 43 | F115-06030000 | TILT MOTOR | 1 | 6EK-43880-11 |
| 44 | GB/T70.1-M5x25 | SCREW M6x25 | 3 | |
| 45 | T85-06000006 | O-RING 67.8x3.1 | 1 | 93210-68N50 |
| 46 | F115-06000003 | CONNECTOR, GEAR PUMP | 1 | |
| 47 | F60-06020000 | GEAR PUMP ASSY | 1 | |
| 48 | GB/T70.1-M5x30 | BOLT M5x30 BLACK | 2 | |
| 49 | GB/T70.1-M3x25 | BOLT M3x25 BLACK | 2 | |
| 50 | F60-06020015 | VALVE PLATE | 1 | |
| 51 | F60-06020014 | SPRING | 1 | |
| 52 | T85-06010205 | BRACKET, VALVE | 1 | 6H1-43844-10 |
| 53 | T85-06010204 | SEAL,VALVE | 1 | 6H1-4384G-11 |
| 54 | F60-06020009 | SCREW, RELIEF VALVE | 1 | |
| 55 | F60-06020008 | SPRING | 1 | |
| 56 | F60-06020006 | BODY, RELIEF VALVE | 1 | |
| 57 | F60-06020007 | O-RING 4.5x1.5 | 1 | |
| 58 | GB/T308-3 | BEARING BALL 3 | 2 | |
| 59 | F60-06020001 | GEAR PUMP BODY | 1 | |
| 60 | F60-06020100 | PISTON ASSY A, SHUTTLE | 1 | |
| 61 | GB/T896-3 | CIRCLIP 3 | 2 | |
| 62 | F60-06020102 | WASHER | 2 | |
| 63 | F60-06020101 | PISTON A, SHUTTLE | 1 | |
| 64 | F60-06020103 | O-RING 8.6x1.5 | 1 | |
| 65 | F60-06020004 | SPRING | 2 | |
| 66 | F60-06020005 | NEEDLE ROLLER 4x25.8 | 2 | |
| 67 | F60-06020200 | PISTON B ASSY, SHUTTLE ASSY | 1 | |
| 68 | F60-06020201 | PISTON B,SHUTTLE | 1 | |
| 69 | F60-06020002 | GEAR A | 1 | |
| 70 | F60-06020003 | GEAR B | 1 | |
| 71 | F60-06020010 | COVER, GEAR PUMP | 1 | |
| 72 | F60-06020013 | BASE, RELIEF VALVE | 1 | |
| 73 | F60-06020012 | O-RING 5.5×1.5 | 1 | |
| 74 | F60-06020020 | PLATE, MANUAL RELEASE | 1 | |
| 75 | F60-06020011 | SEAT, CHECK VALVE | 2 | |
| 76 | F60-06020017 | BODY, CHECK VALVE | 2 | |
| 77 | F60-06020018 | O-RING 7.5×1.5 | 2 | |
| 78 | F60-06020019 | SPRING | 2 | |
| 79 | F60-06020021 | SEAL PLATE, VALVE | 1 | |
| 80 | GB/T70.1-M3x5 | BOLTM3x5 BLACK | 1 | |
| 81 | GB/T70.1-M5x45 | BOLT M5x45 BLACK | 4 | |
| 82 | F60-06000008 | FILTER B | 1 | |
| 83 | F60-06000009 | WASHER,FIFTER B | 1 | |
| 84 | F60-06000007 | O-RING 7.6x1.5 | 2 | |
| 85 | F60-06000006 | FIFTER A | 2 | |
| 86 | GB/T879.4-1.5x18 | PIN 1.5x18 | 1 |

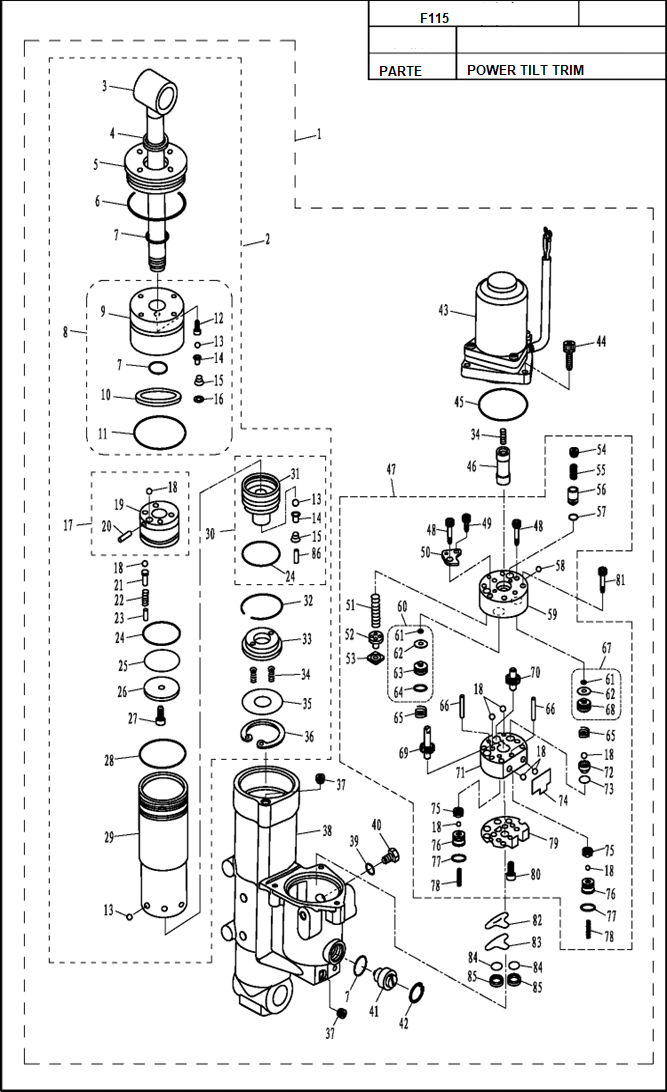

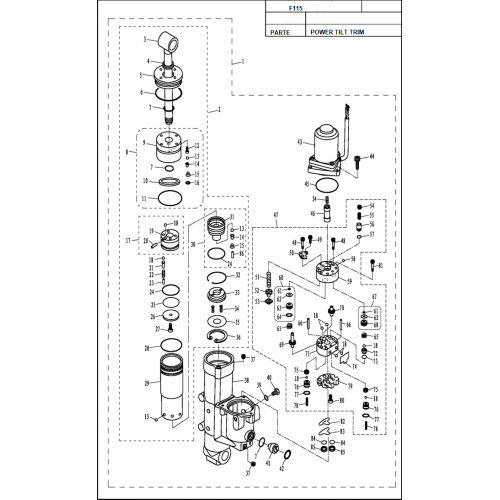

F115 DIAGRAMA DE POWER TRIM
