| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | T20-01030001 | TILLER HANDLE | 1 | 689-42111-01-4D |
| 2 | F4-01090006 | BUSH | 1 | 90386-08032 |
| 3 | F4-01090007 | SPRING | 1 | 90501-23215 |
| 4 | GB/T848-10 | WASHER 10 | 1 | 90201-10M02 |
| 5 | T15-01020300 | GRIP ASSY, TILLER HANDLE | 1 | 6F6-42177-A0 |
| 6 | GB/T820-M5x25 | SCREW M5x25 | 1 | 90152-05011 |
| 7 | F4-01090003 | FRICTION, TILLER HANDLE | 1 | 6G1-42126-00 |
| 8 | T20-01030100 | THROTTLE LEVER ASSY | 1 | 689-42138-00 |
| 9 | T20-01030300 | THROTTLE CABLE ASSY | 2 | 61N-26311-01 |
| 10 | GB/T5782-M6x50 | BOLT M6x50 | 1 | |
| 11 | GB/T97.1-6 | WASHER 6 | 2 | 92995-06600 |
| 12 | GB/T9074.14-M6X20 | BOLT M6x20 | 1 | 97095-06020-00 |
| 13 | T20-01000007 | COVER, TILLER HANDLE | 1 | 69P-42112-00-4D |
| 14 | T20-01000008 | DAMPER, HANDLE | 1 | 90387-13003 |
| 15 | T20-01000009 | BUSH, HANDLE | 1 | 90387-33001 |
| 16 | T20-01000011 | WAVE WAHSER | 2 | 90201-28013 |
| 17 | T20-01000010 | WAVE WASHER | 1 | 90206-28001 |
| 18 | T20-01030200 | BOLT, FRICTION ADJUSTING | 1 | |
| 19 | GB/T91-1.6x12 | COTTER PIN 1.6x12 | 1 | |
| 20 | T20-01030000 | TILLER HANDLE ASSY | 1 | 69P-W0084-00-4D |

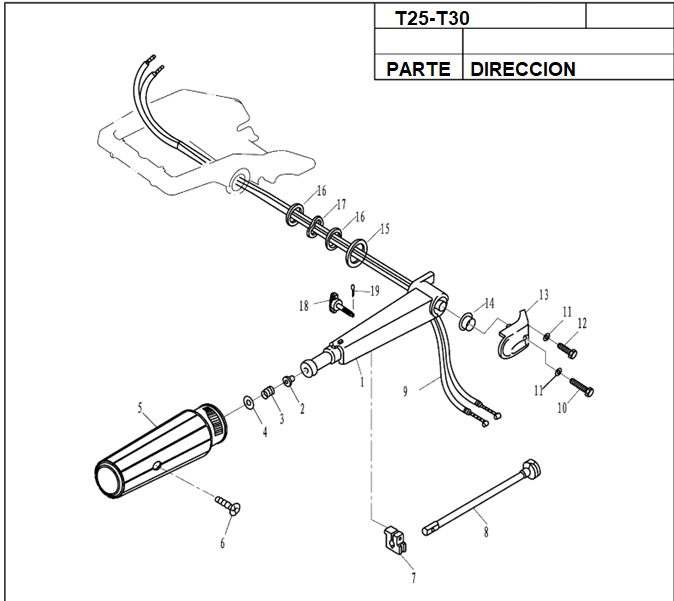

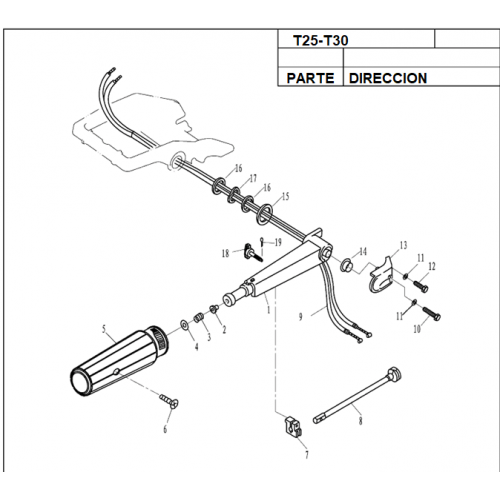

T25-T30 DIAGRAMA DE MANERAL
- Marcas DERMA MARINE
- Código: T25-T30 DIAGRAMA DE MANERAL
