| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F15-01010007 | NUT, SELF-LOCKING | 1 | 90185-22043 |
| 2 | F115-01010002 | CLAMP BRACKET, RIGHT | 1 | 6EK-43112-00-8D |
| 3 | T85-01010003 | EARTH WIRE A | 1 | 6E5-82148-00 |
| 4 | GB/T818-M6x12 | SCREW M6x12 | 1 | 90109-06M31 |
| 5 | F115-01010102 | SUPPORT BRACKET ASSY A | 1 | 6EK-43181-00 |
| 6 | T85-01010203 | BUSH, NYLON | 4 | 90386-10M16 |
| 7 | T85-00000016 | LIMITED SHAFT, TILT | 1 | 6E5-43126-02 |
| 8 | F115-01010003 | WASHER | 2 | 90201-26M59 |
| 9 | F115-01010004 | BUSH, NYLON | 2 | 90386-25M31 |
| 10 | JB/T9740.1-M6 | NIPPLE, GREASE M6 | 3 | 93700-06M03 |
| 11 | F115-01010101 | BRACKET, ROTARY X | 1 | 6EK-43311-00-8D |
| F115-01010101L | BRACKET, ROTARY L | 1 | ||
| 12 | F115-01010105 | CLAMP B | 1 | |
| 13 | F115-01010104 | SUPPORT BRACKET ASSY B | 1 | 6EK-43185-00 |
| 14 | GB/T894.1-18 | CIRCLIP 18 | 2 | 93410-18M02 |
| 15 | F115-01010001 | CLAMP BRACKET, LEFT | 1 | 6EK-43111-00-8D |
| 16 | F115-01010200 | DOUBLE-EDGED TUBE | 1 | 64E-43131-30 |
| 17 | GB/T97.1-8 | WAHSER 8 | 1 | 92995-08100 |
| 18 | GB/T5783-M8x20 | BOLT M8x20 | 1 | 90119-08MA3 |
| 19 | GB/T5783-M10x1.25x30 | BOLT M10x1.25x30 | 2 | |
| 20 | F60-00000015 | THICK WASHER 10 | 2 | |
| 21 | GB/T879.2-3x16 | PIN 3x16 | 2 | |
| 22 | T85-01010206 | SWING LINK ASSY, SUPPORT | 1 | 6G5-43148-00 |
| 23 | GB/T5783-M6x10 | BOLT M6x10 | 3 | |
| 24 | T85-01010208 | BRACKET,TENSION SPRING | 1 | 6G5-43144-00 |
| 25 | T85-01010207 | SPRING, SWING SHAFT | 1 | 90506-14M24 |
| 26 | T85-00000017 | BUSH A | 2 | 90386-18M35 |
| 27 | F115-00000010 | BUSH B | 1 | 90386-18001 |
| 28 | T85-01010004 | PLATE, ANODE | 1 | 6H1-44256-00 |
| 29 | T85-01010005 | ANODE | 1 | 6H1-45251-03 |
| 30 | GB/T97.1-6 | WASHER 6 | 4 | 92995-06600 |
| 31 | GB/T5783-M6x12 | BOLT M6x12 | 2 | |
| 32 | GB/T96-6 | BIG WASHER 6 | 2 | |
| 33 | GB/T5783-M6x16 | BOLT M6x16 | 2 | |
| 34 | T85-01010209 | EARTH WIRE B | 1 | 6H1-82148-00 |
| 35 | F115-00000011 | BUSH, LOCATED | 1 | 90383-20001 |
| 36 | F115-00000012 | LOCATED PIN, HYDRAULIC | 1 | 6EK-43818-00 |
| 37 | F115-02000005 | EARTH WIRE C X | 1 | |
| F115-02000005L | EARTH WIRE C L | 1 |

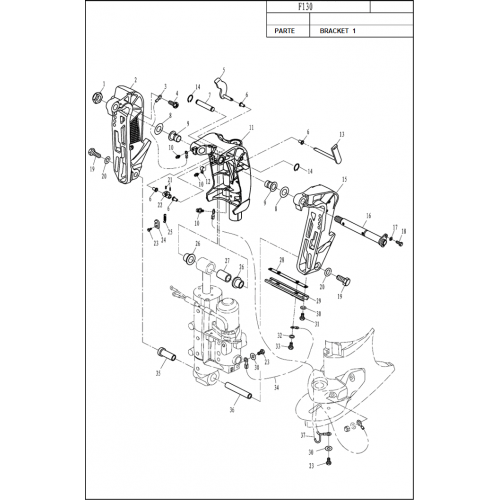

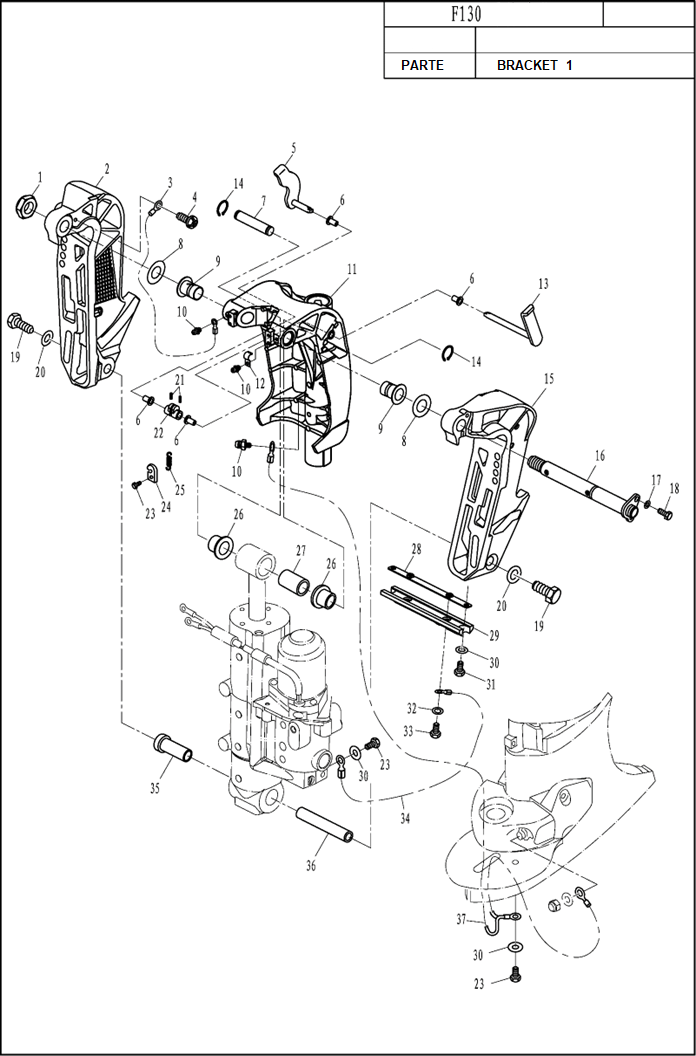

F130 DIAGRAMA DE BRACKET 1
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA DE BRACKET 1
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
$0,00MXN
- Sin impuestos: $0,00MXN
