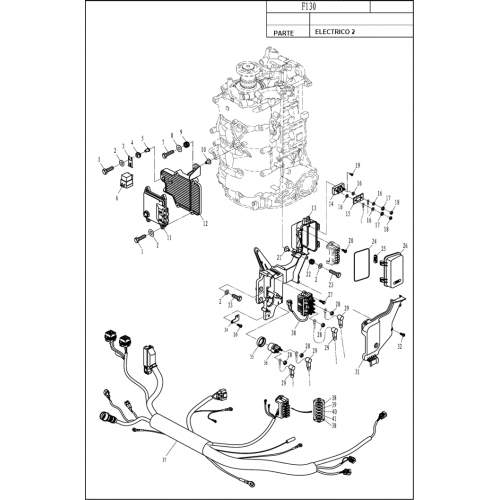

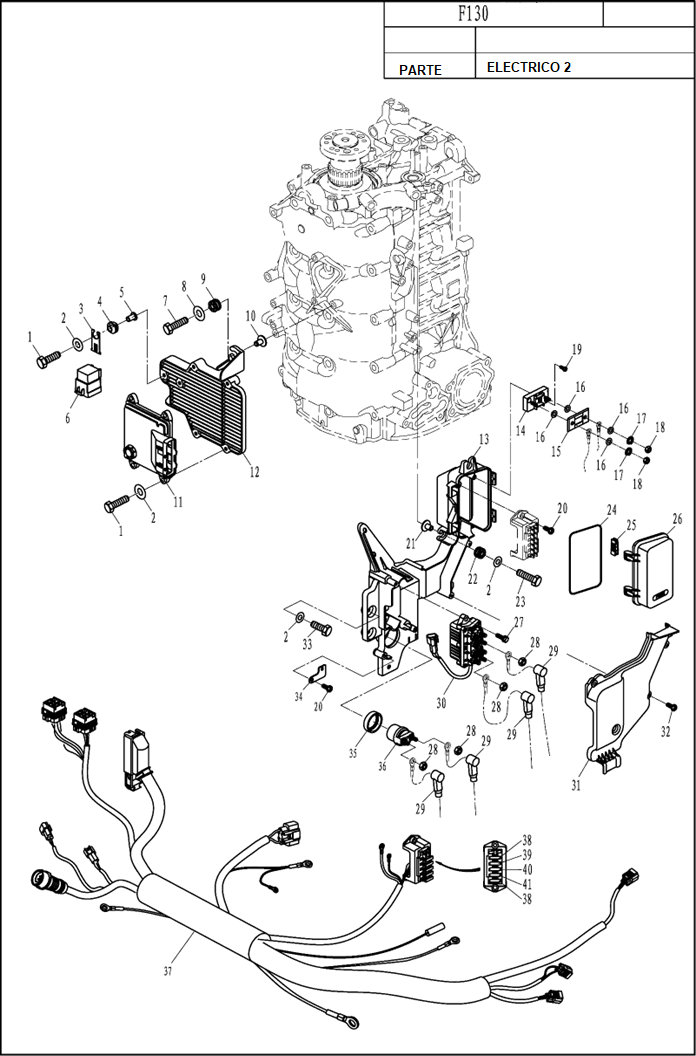

| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T5783-M6x25 | BOLT M6x25 | 6 | |
| 2 | GB/T96-6 | BIG WASHER 6 | 12 | |
| 3 | F40-05091401EFI | BRACKET, MAIN RELAY | 2 | |
| 4 | F40-05091402EFI | DAMPER, MAIN RELAY | 2 | |
| 5 | T40-05000028 | WASHER, IGNITION COIL | 2 | 624-42542-00 |
| 6 | F40-05091400EFI | MAIN RELAY | 2 | |
| 7 | GB/T5783-M6x35 | BOLT M6x35 | 2 | |
| 8 | GB/T5287-6 | BIG WASHER 6 | 2 | |
| 9 | F115-05000046 | DAMPER, FUEL PUMP | 2 | |
| 10 | F115-05000045 | TUBE, FUEL PUMP | 2 | |
| 11 | F130-05070100 | ECU UNIT | 1 | |
| 12 | F115-05070005 | ECU BRACKET | 1 | 6EK-81948-00 |
| 13 | F115-05070001 | BASE, ELECTRIC BOX | 1 | 6EK-81952-00 |
| 14 | F115-05000109 | FUSE BASE 50A | 1 | |
| 15 | F115-05000109-1 | FUSE 50A | 1 | |
| 16 | GB/T97.1-5 | WASHER 5 | 4 | 6Y1-24329-00 |
| 17 | GB/T93-5 | WASHER, SPRING 5 | 2 | |
| 18 | GB/T6170-M5 | NUT M5 | 2 | 95380-05600 |
| 19 | GB/T845-ST4.2x12-F | SCREW 4.2x12-F | 2 | |
| 20 | GB/T845-ST6.3x19-F | SCREW 6.3x19-F | 3 | |
| 21 | F115-05070004 | PLATE, ABSORBER | 4 | 69M-42758-01 |
| 22 | F115-05070003 | DAMPER, SUPPORT | 4 | 64J-85516-00 |
| 23 | GB/T5783-M6x30 | BOLT M6x30 | 4 | |
| 24 | F115-05070006 | SEAL, FROTHY RUBBER | 1 | |
| 25 | F115-05070002-1 | NIPPERS, FUSE | 1 | |
| 26 | F115-05070002 | COVER, FUSE BOX | 1 | |
| 27 | GB/T9074.14-M6x20 | BOLT M6x20 | 2 | 97095-06020-00 |
| 28 | GB/T6170-M6-00 | NUT M6 SILVERING | 4 | |
| 29 | F15-07150501W | JACKET, POWER CABLE | 4 | |
| 30 | T85-05030200 | RELAY | 1 | 61A-81950-00 |
| 31 | F115-05070009 | COVER, ELECTRIC BOX | 1 | 6EK-81919-01 |
| 32 | GB/T845-ST4.8x19-F | SCREW 4.8x19-F | 4 | |
| 33 | GB/T5783-M6x16 | BOLT M6x16 | 2 | |
| 34 | F115-05070007 | PLATE, RELAY | 1 | |
| 35 | F115-05070008 | JACKET, RELAY | 1 | |
| 36 | F15-07150300W | STARTER RELAY ASSY | 1 | 6G1-81941-10 |
| 37 | F115-05070200 | IGNITION WIRE ASSY | 1 | 6EK-82590-00 |
| 38 | F40-05001000-1EFI | FUSE 40A | 2 | |
| 39 | F40-05001000-4EFI | FUSE 7.5A | 1 | |
| 40 | F40-05001000-3EFI | FUSE 15A | 1 | |
| 41 | F40-05001000-2EFI | FUSE 20A | 1 |
F130 DIAGRAMA ELECTRICO 2
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA ELECTRICO 2
