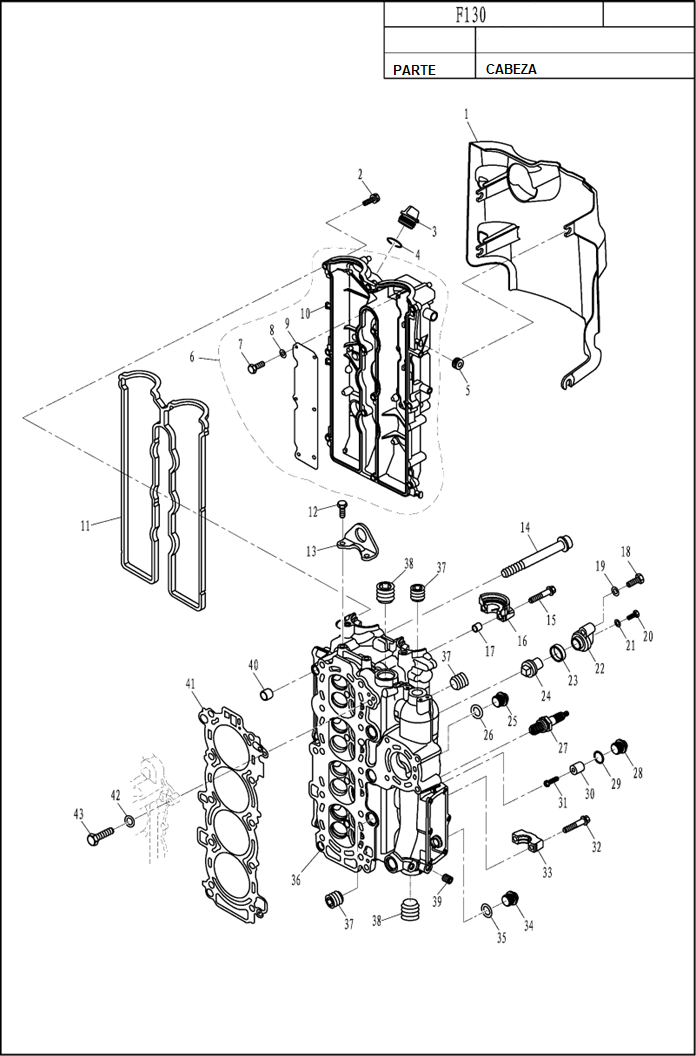

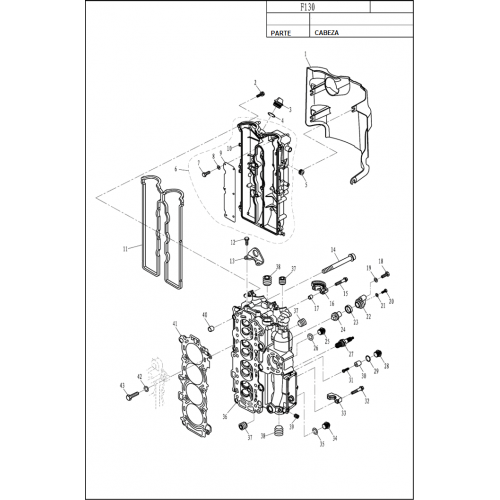

| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-05000105 | COVER, CYLINDER HEAD | 1 | 6EK-11192-00 |
| 2 | GB/T9074.14-M6x30 | BOLT M6x30 | 12 | |
| 3 | F15-07050004 | FILLER CAP | 1 | 6G8-15363-00 |
| 4 | JASO-F404-31-025 | O-RING | 1 | |
| 5 | F115-05000010 | ABSORBER,COVER | 4 | |
| 6 | F115-05000200 | COVER ASSY, CYLINDER HEAD | 1 | 6EK-11191-00 |
| 7 | GB/T818-M4x8 | SCREW M4x8 | 6 | 68580-04008 |
| 8 | GB/T97.1-4 | WASHER 4 | 6 | 6Y1-24329-00 |
| 9 | F115-05000202 | COVER, BREATHER | 1 | 6EK-11168-00 |
| 10 | F115-05000201 | COVER, CYLINDER HEAD | 1 | |
| 11 | F115-05000009 | GASKET, CYLINDER COVER | 1 | 6EK-11193-00 |
| 12 | GB/T5783-M8X25 | BOLT M8x25 | 2 | 97075-08025-00 |
| 13 | F115-05000103 | POTHOOK, ENGINE | 1 | 6EK-11119-00 |
| 14 | F115-05000008 | FLANGE BOLT M10x1.5x110 | 10 | 90155-10008 |
| 15 | F115-05030012 | BOLT A | 4 | |
| 16 | F115-05030011 | COVER A, CAMSHAFT | 2 | |
| 17 | F115-05030010 | HOLLOW PIN 9x7.5x8 | 4 | |
| 18 | GB/T5782-M8x40 | BOLT M8x40 | 1 | |
| 19 | GB/T97.1-8 | WAHSER 8 | 1 | 92995-08100 |
| 20 | GB/T5783-M6x20 | BOLT M6x20 | 1 | |
| 21 | F115-05030017 | GASKET 6 | 1 | |
| 22 | F115-05030015 | PLATE, ANODE | 1 | |
| 23 | F115-05030018 | SEAL, ANODE | 1 | |
| 24 | F115-05030016 | ANODE | 1 | 6G8-11325-00 |
| 25 | F40-05000037 | JAM M18x1.5 | 1 | |
| 26 | F40-05000038 | GASKET, JAM | 1 | |
| 27 | NGK-LKR6E | SPARK PLUG LKR6E | 4 | 94702-00437 |
| 28 | F20-05030009 | BOLT, ANODE | 1 | |
| 29 | GB/T3452.1-13x2 | O-RING 13x2 | 1 | |
| 30 | F4-04070003 | ANODE, THERMOSTAT | 1 | 68D-E1325-00 |
| 31 | GB/T818-M5x25 | SCREW M5x25 | 1 | |
| 32 | F115-05030014 | BOLT B | 16 | |
| 33 | F115-05030013 | COVER B, CAMSHAFT | 8 | |
| 34 | F15-04000002 | BOLT, DRAIN | 1 | 90340-14M00 |
| 35 | T85-05000003 | GASKET, JAM | 1 | 90430-14115 |
| 36 | F130-05030100 | CYLINDER HEAD | 1 | |
| 37 | F25-05010104A | JAM 1/2 | 8 | |
| 38 | F115-05030019 | JAM RC3/4 | 2 | |
| 39 | F15-07010004 | JAM 1/8 | 7 | |
| 40 | F115-05000007 | HOLLOW PIN 14x10.8x15.8 | 2 | |
| 41 | F115-05000100 | GASKET, CYLINDER HEAD | 1 | 6EK-11181-00 |
| 42 | GB/T97.1-6 | WASHER 6 | 1 | 92995-06600 |
| 43 | T3.6-04000017 | BOLT M6x30 | 1 |
F130 DIAGRAMA DE CABEZA
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA DE CABEZA
