| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-05000034 | BOLT, THERMOSTAT | 2 | 90109-06286 |
| 2 | F115-05000033 | COVER, THERMOSTAT | 1 | 6EK-12413-00 |
| 3 | F115-05000032 | THERMOSTAT | 1 | 6EK-12411-00 |
| 4 | HT5x200 | NYLON CLAMP 5x200 | 4 | |
| 5 | F115-05000037 | JACKET C, HOSE | 1 | |
| 6 | F115-05000035 | FIXED HOSE C | 1 | 6EK-1243A-00 |
| 7 | F115-05000038 | FIXED HOSE D | 1 | 6EK-12483-00 |
| 8 | GB/T9074.14-M6x25 | BOLT M6x25 | 9 | 97095-06025-00 |
| 9 | F4-04010102A | PIPE, JOINT | 1 | |
| 10 | F115-05000031 | OUTER COVER, EXHAUST | 1 | 6EK-15414-00-9S |
| 11 | F115-05000030 | GASKET, OUTER COVER | 1 | 6EK-15353-00 |
| 12 | GB/T819.1-M6x20 | SCREW M6x20 | 1 | |
| 13 | F115-05000029 | ANODE, OUTER COVER | 1 | 3P-11325-01 |
| 14 | F115-00000200 | DIPSTICK ASSY | 1 | 6EK-15362-10 |
| 15 | F115-05010006 | JAM M18x1.5 | 2 | |
| 16 | F115-05010007 | WASHER, JAM | 2 | |
| 17 | F25-05010104A | JAM 1/2 | 2 | |
| 18 | F20-05030009 | BOLT, ANODE | 1 | |
| 19 | GB/T3452.1-13x2 | O-RING 13x2 | 1 | |
| 20 | F4-04070003 | ANODE, THERMOSTAT | 1 | 68D-E1325-00 |
| 21 | GB/T818-M5x25 | SCREW M5x25 | 1 | |
| 22 | F115-05010004 | BOLT M10x1.5x105 | 10 | |
| 23 | GB/T97.1-10 | WASHER 10 | 10 | 90201-10120 |
| 24 | F15-07000029 | BOLT M8x55 | 10 | |
| 25 | GB/T97.1-8 | WAHSER 8 | 10 | 92995-08100 |
| 26 | F115-05010000 | CRANKCASE ASSY | 1 | |
| 27 | F4-04010102A | PIPE, JOINT | 1 | |
| 28 | GB/T3452.1-19.2x1.9 | O-RING 19.2x1.9 | 1 | |
| 29 | F15-00000006 | PIN 6x12 | 10 | 93606-12019 |
| 30 | F115-05010204 | O-RING 14.8x2.2 | 1 | |
| 31 | F115-05010200 | RELIEF VALVE ASSY | 1 | 6EK-13490-00 |
| 32 | F115-00000007 | GASKET, ENGINE | 1 | 6EK-11351-00 |
| 33 | F115-05000026 | RING,OIL CLEANER | 1 | 6EK-13475-00 |
| 34 | F25-05000100 | OIL CLEANER | 1 | |
| 35 | F15-07010003 | BOLT UNION | 1 | 90401-20M00 |
| 36 | F115-05000025 | BRACKET,OIL CLEANER | 1 | 6EK-13446-00 |
| 37 | GB/T97.1-6 | WASHER 6 | 3 | 92995-06600 |
| 38 | GB/T5782-M6x40 | BOLT M6x40 | 3 |

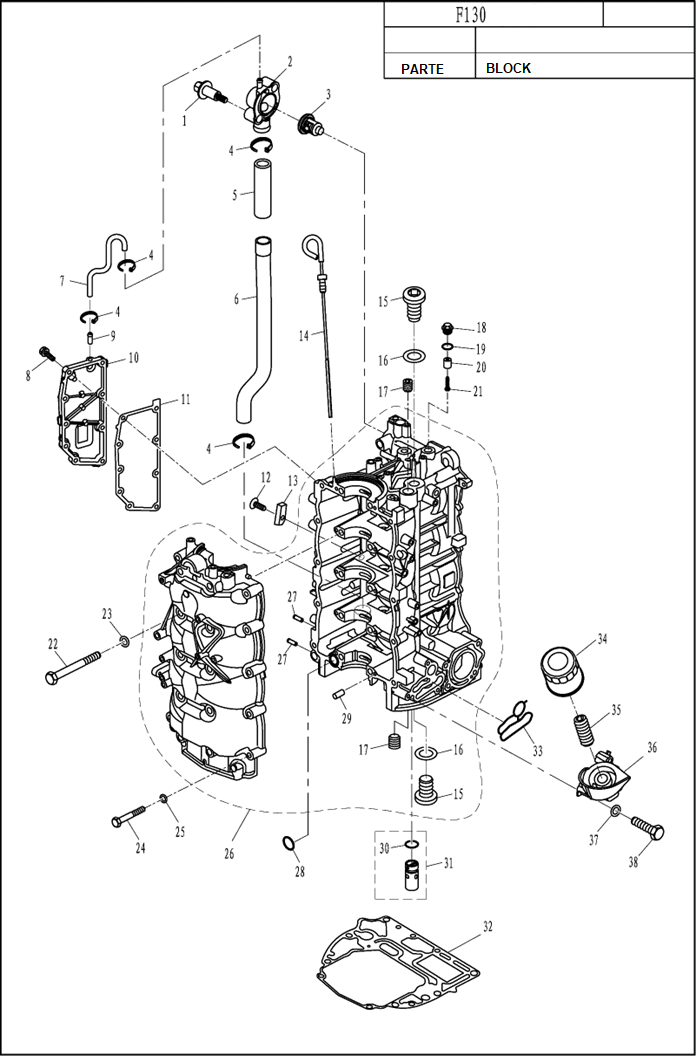

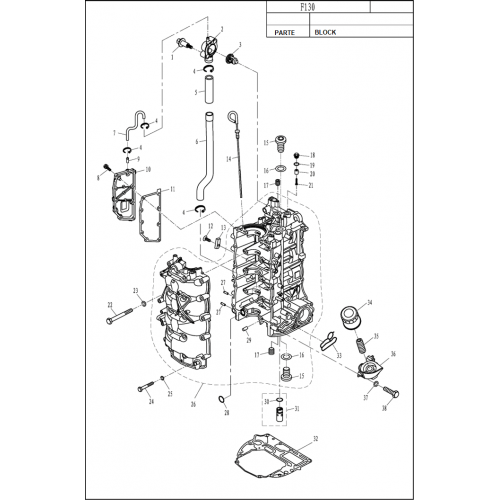

F130 DIAGRAMA DEL BLOCK
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA DEL BLOCK
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
$0,00MXN
- Sin impuestos: $0,00MXN
