| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T5782-M8x70 | BOLT M8x70 | 6 | |
| 2 | GB/T97.1-8 | WAHSER 8 | 8 | 92995-08100 |
| 3 | F115-05000301 | EXHAUST PIPE A | 1 | 6EK-14625-00 |
| 4 | F115-05000023 | GASKET A, EXHAUST PIPE | 1 | 6EK-41124-00 |
| 5 | F115-05030020 | PIN 55x10 | 2 | |
| 6 | F25-05010104A | JAM 1/2 | 1 | |
| 7 | F20-05030009 | BOLT, ANODE | 1 | |
| 8 | GB/T3452.1-13x2 | O-RING 13x2 | 1 | |
| 9 | F4-04070003 | ANODE, THERMOSTAT | 1 | 68D-E1325-00 |
| 10 | GB/T818-M5x25 | SCREW M5x25 | 1 | |
| 11 | GB/T3452.1-85x3.1 | O-RING 85x3.1 | 1 | |
| 12 | GB/T3452.1-65x3.1 | O-RING 65x3.1 | 1 | |
| 13 | F115-05000304 | EXHAUST PIPE B | 1 | 6EK-14615-00 |
| 14 | F115-05000024 | GASKET B, EXHAUST PIPE | 1 | 6EK-41114-00 |
| 15 | F4-04010102A | PIPE, JOINT | 1 | |
| 16 | F40-05000038 | GASKET, JAM | 1 | |
| 17 | F40-05000037 | JAM M18x1.5 | 1 | |
| 18 | GB/T5782-M8x100 | BOLT M8x100 | 2 | |
| 19 | F115-05000101 | HOSE 5x10x915 | 1 | |
| 20 | F115-05000102 | JACET, HOSE | 1 | |
| 21 | F115-05000040 | FIXED PLATE, HOSE | 1 | |
| 22 | GB/T5783-M6x12 | BOLT M6x12 | 2 | |
| 23 | F115-03000014 | PIPE, JOINT | 2 | |
| 24 | F115-03000014-1 | WASHER, WATER NOZZLE | 2 |

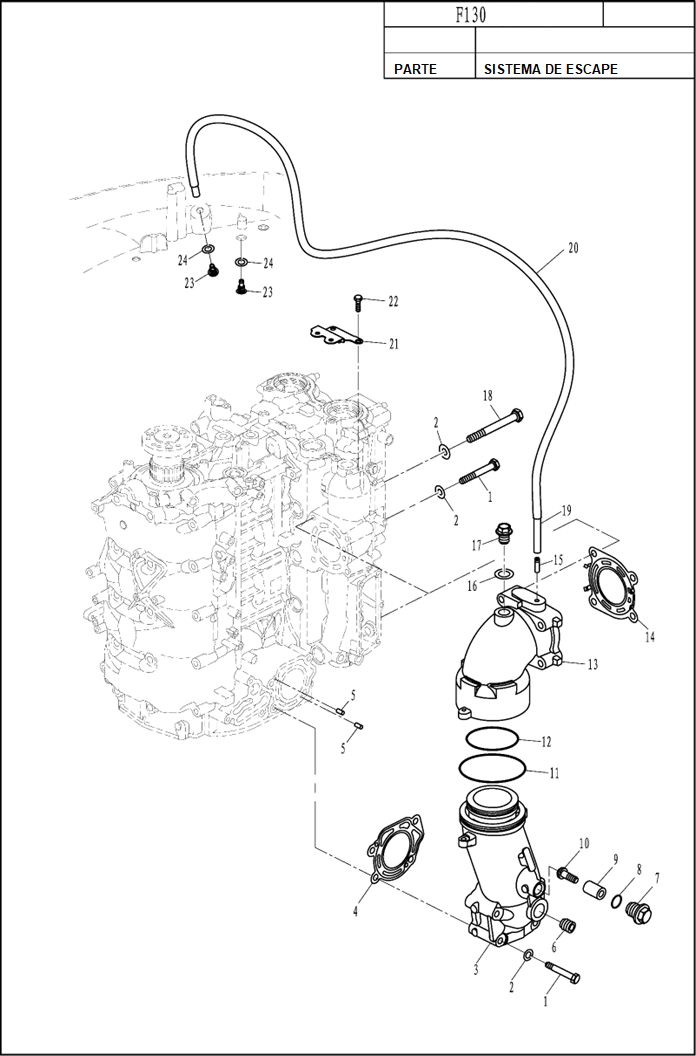

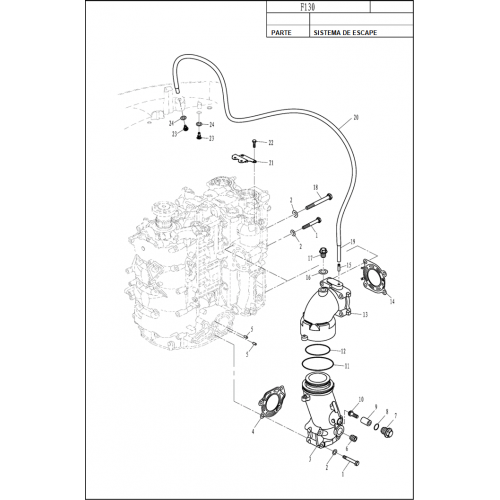

F130 DIAGRAMA DE ESCAPE
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA DE ESCAPE
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
