| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-10000000 | FUEL LINE ASSY | 1 | 6Y2-24307-60 |
| 2 | F115-10000002 | HOSE B 7x12x2080 | 1 | |
| 3 | S7140-14.5 | CLAMP A | 4 | |
| 4 | F115-10010000-A | PRIMER BULB ASSY | 1 | 6Y2-24360-51 |
| 5 | F115-10000001 | HOSE A 7x12x1530 | 1 | |
| 6 | F115-05000016 | FUEL FITTING ASSY | 1 | 6AW-24377-01 |
| 7 | F115-05000014 | HOSE A 7x12x850 | 1 | |
| 8 | F115-05000015 | JACKET, HOSE A 12x800 | 1 | |
| 9 | F4-05000010 | CLIP SPRING A | 5 | 90467-13M13 |
| 10 | F115-05001300 | FUEL FILTER ASSY | 1 | 6EK-24560-00 |
| 11 | F115-05000011 | BRACKET, FILTER CUP | 1 | 6EK-24566-00 |
| 12 | GB/T6170-M8 | NUT M8 | 1 | 95380-08600 |
| 13 | GB/T97.1-6 | WASHER 6 | 1 | 92995-06600 |
| 14 | GB/T5783-M6x16 | BOLT M6x16 | 1 | |
| 15 | GB/T3452.1-30x3 | O-RING 30x3 | 1 | |
| 16 | F4-04000030 | CLIP SPRING B | 2 | 90467-08004 |
| 17 | F115-05000017 | FIXED HOSE A | 1 | |
| 18 | F115-05000018 | JACKET,FIXED HOSE A | 1 | |
| 19 | F115-05040000 | FUEL PUMP ASSY | 1 | 6EK-24410-00 |
| 20 | GB/T9074.14-M6x30 | BOLT M6x30 | 2 | |
| 21 | F115-05000021 | HOSE B 7x12x150 | 1 | |
| 22 | F115-05000019 | FUEL FILTER ASSY | 1 | 6C5-24251-00 |
| 23 | F115-05000020 | JACKET, FUEL FILTER | 1 | |
| 24 | F115-05000074 | FUEL LINE 7x12x500 | 1 | |
| 25 | F40-05000041EFI | JOINT B, FUEL FILTER | 1 | |
| 26 | F115-05000075 | JACKET, HOSE 7x430 | 1 | |
| 27 | F115-05000079 | JACKET, FIEXD HOSE OUT | 1 | |
| 28 | F115-05000078 | FIXED HOSE OUT | 1 | 6EK-2450B-00 |
| 29 | F40-05000040EFI | JOINT A, FUEL FILTER | 1 | |
| 30 | F115-05050017 | POWER CALBE, FUEL PMP | 1 | |
| 31 | GB/T9074.14-M6x25 | BOLT M6x25 | 2 | 97095-06025-00 |
| 32 | F115-05000048 | FEUL COMMON RAILL | 1 | |
| 33 | F115-05000047 | FUEL INJECTOR | 4 |

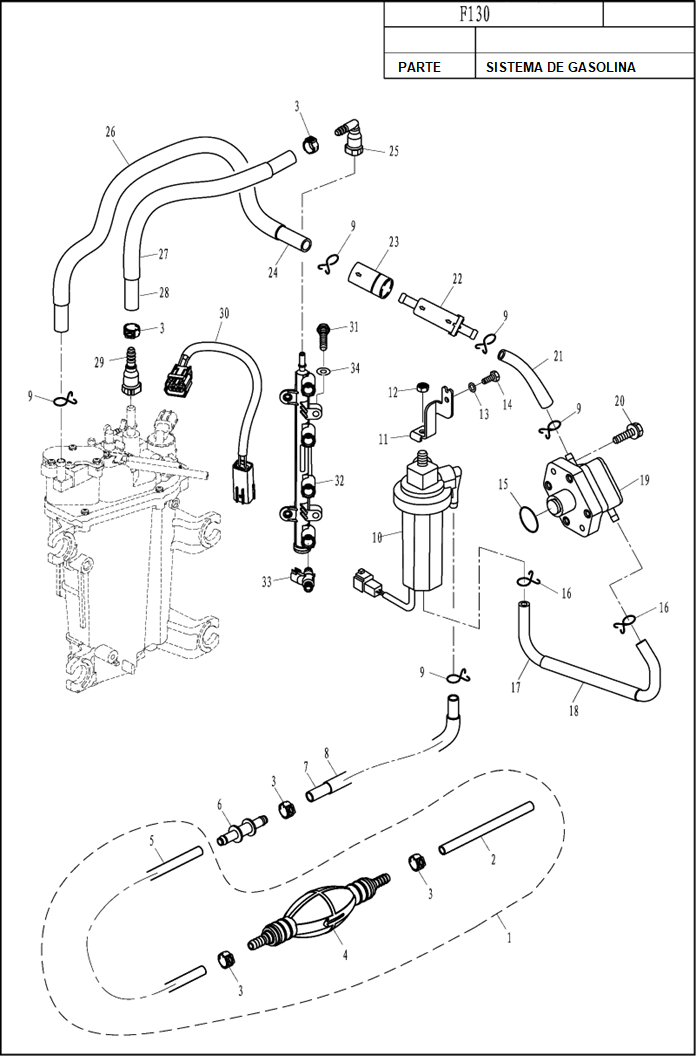

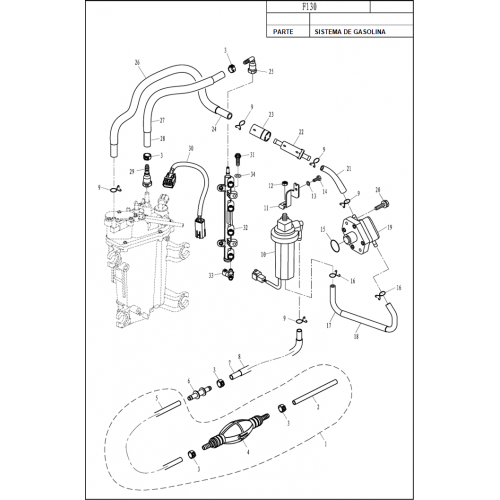

F130 DIAGRAMA DE GASOLINA
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA DE GASOLINA
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
$0,00MXN
- Sin impuestos: $0,00MXN
