| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F115-05080009 | OIL SEAL,OIL PUMP | 1 | 69J-11355-00 |
| 2 | JASO-F404-19-019 | O-RING 19x1.9 | 2 | |
| 3 | F115-05080000 | OIL PUMP ASSY | 1 | 6EK-13300-00 |
| 4 | GB/T819.1-M6x14 | SCREW M6x14 | 6 | |
| 5 | F115-05080008 | COVER, OIL PUMP | 1 | |
| 6 | F115-05080004 | SEAL RING | 1 | 6EK-13329-00 |
| 7 | F115-05080006 | INNER ROTOR, OIL PUMP | 1 | |
| 8 | F115-05080007 | OUTER ROTOR,OIL PUMP | 1 | |
| 9 | F115-05080003 | OIL SEAL B 34x45x6.5 | 1 | 6AW-13119-00 |
| 10 | F115-05080002 | OIL SEAL A 22.4x33x5 | 2 | 69J-13631-00 |
| 11 | F115-05080005 | PIN 3x8 | 2 | |
| 12 | F115-05080001 | BODY, OIL PUMP | 1 | |
| 13 | GB/T97.1-6 | WASHER 6 | 4 | 92995-06600 |
| 14 | GB/T5782-M6x40 | BOLT M6x40 | 4 | |
| 15 | GB/T3452.1-64X2 | O-RING 64x2 | 1 |

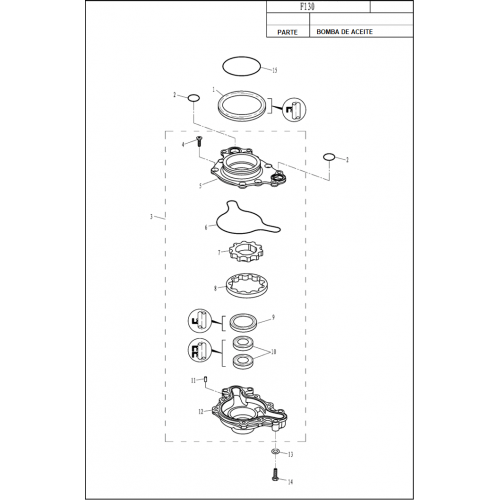

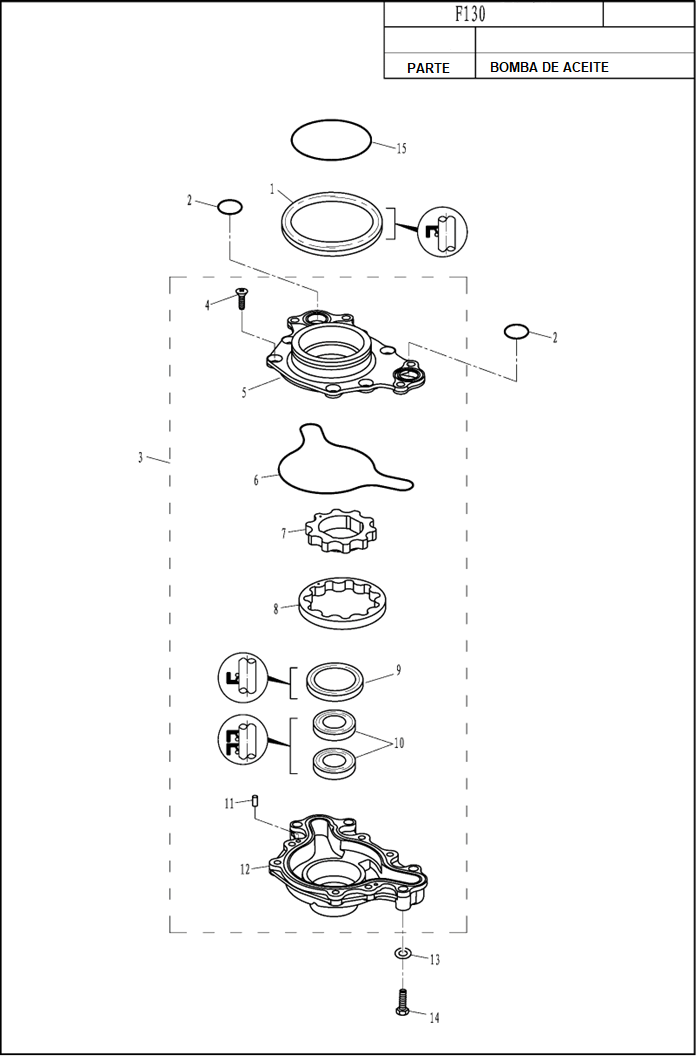

F130 DIAGRAMA DE BOMBA DE ACEITE
- Marcas DERMA MARINE
- Código: F130 DIAGRAMA DE BOMBA DE ACEITE
