S.N.	PART NO.	DESCRIPTION-ENGLISH	QTY	OEM PART NO.
1	F40-01030101	THROTTLE CABLE ASSY	1
2	GB/T889.2-M10x1.25	LOCK NUT M10x1.25	3	90185-10051
3	GB/T6170-M10x1.25	NUT M10x1.25	1	95380-10600
4	F15-01000013	PLATE, HANDLE	1	65W-42131-01
5	F15-01000011	BUSH, HANDLE	1	90386-40M99
6	GB/T5782-M6x45	BOLT M6x45	1
7	GB/T97.1-6	WASHER 6	3	92995-06600
8	T40-00000006	SPACER, HANDLE	1
9	T40-00000005	WAVE WASHER	1
10	T40-00000004	WASHER, HANDLE	1
11	T40-00000002	HANDLE, SHIFT	1	66T-44111-00
12	F40-00000001	SHIFT ROD	1
13	F15-00000012	SPRING 1.8	1	90468-18008
14	T40-00000003	TUBE, FLANGE	1
15	T40-01020001	JACKET, HANDLE BRACKET	1
16	F25-01030001	BRACKET, HANDLE	1	65W-42121-00
17	GB/T97.1-10	WASHER 10	2	90201-10120
18	GB/T6170-M6	NUT M6	1	95303-06600
19	F15-01000012	WASHER, NYLON	1	90202-43M57
20	F15-01000008	WAVE WAHSER	2	90201-43M00
21	F15-01000009	WAVE WAHSER	2	90206-43M22
22	F15-01000007	BUSH, HANDLE	1	90386-40MA0
23	F15-01030003	BOLT STUD	1
24	F15-01030001	TILLER HANDLE	1	65W-42101-01-4D
25	GB/T91-1.6x12	COTTER PIN 1.6x12	1
26	F15-01030200	KNOB ASSY, FRICTION ADJUSTING	1	65W-42125-00
27	F4-01090006	BUSH	1	90386-08032
28	F4-01090007	SPRING	1	90501-23215
29	GB/T848-10	WASHER 10	1	90201-10M02
30	F40-01030102EFI	GRIP ASSY, TILLER HANDLE	1
31	T15-01020003	ENGINE STOP SWITCH ASSY	1	689-82575-04
32	F4-01090401	STOPER, HANG ROPE ASSY	1	682-82556-00
33	GB/T820-M5x25	SCREW M5x25	1	90152-05011
34	F4-01090003	FRICTION, TILLER HANDLE	1	6G1-42126-00
35	F4-01090004	WASHER, NYLON	1
36	F15-01030100	THROTTLE LEVER ASSY	1	65W-42138-00
37	GB/T5783-M6X20	BOLT M6x20	2
38	F15-01030005	FIXED PLATED, THROTTLE	1	65W-42159-00
39	F40-01030100EFI	TILLER HANDLE ASSY	1

Escribir un comentario

Su nombre:

Su comentario:

Nota: ¡No insertar HTML!

Su puntuación: Malo Bueno

Captcha

Introduzca el código

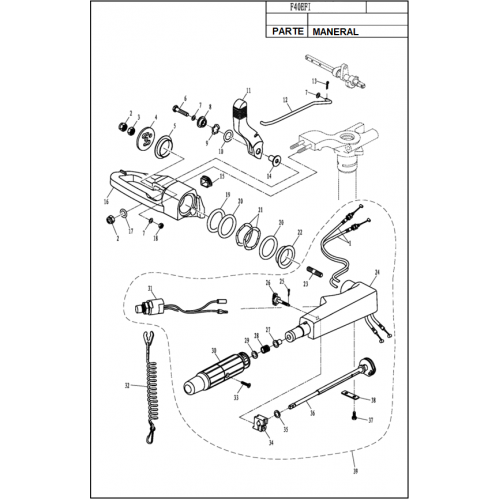

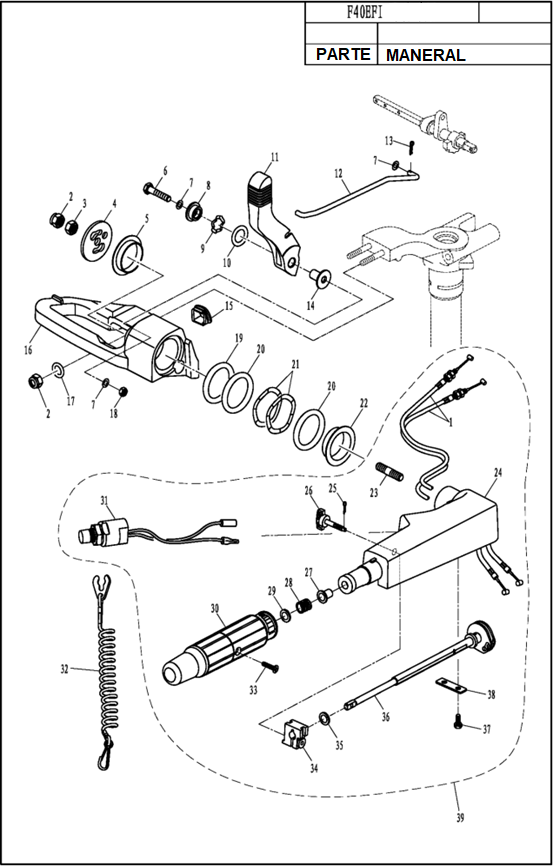

DIAGRAMA DE MANERAL F40EFI
