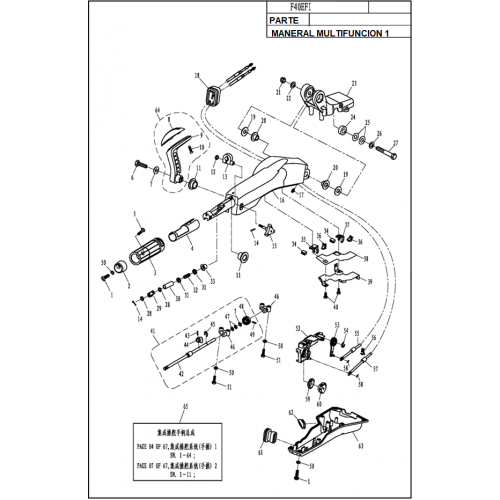

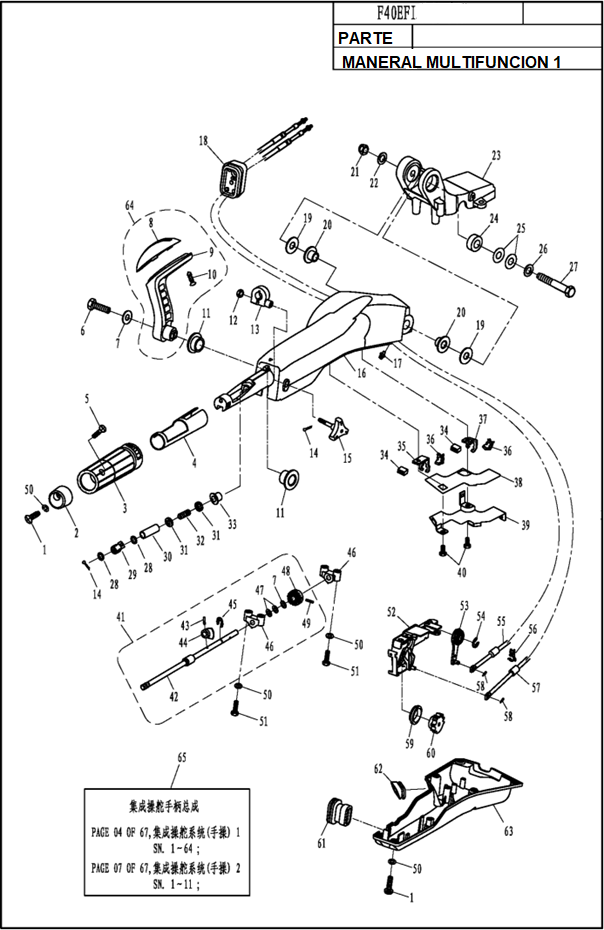

| S.N. |
PART NO. |
DESCRIPTION-ENGLISH |
QTY |
OEM PART NO. |
| 1 |
GB/T818-M6x16 |
SCREW M6x16 |
7 |
90159-06M11 |
| 2 |
F115-01030019 |
HANDLE COVER |
1 |
|
| 3 |
F115-01031500 |
GRIP ASSY |
1 |
|
| 4 |
F115-01030013 |
BUSH, HANDLE |
1 |
|
| 5 |
GB/T820-M5x25 |
SCREW M5x25 |
1 |
90152-05011 |
| 6 |
GB/T5782-M8x40 |
BOLT M8x40 |
1 |
|
| 7 |
GB/T97.1-8 |
WAHSER 8 |
2 |
92995-08100 |
| 8 |
F115-01030902 |
COVER, SHIFT HANDLE |
1 |
|
| 9 |
F115-01030901 |
HANDLE, SHIFT |
1 |
|
| 10 |
GB/T847-ST6.3x20F |
SCREW ST6.3x20-F |
2 |
|
| 11 |
F115-01030011 |
WASHER, SHIFT HANDLE |
2 |
|
| 12 |
GB/T6170-M6 |
NUT M6 |
1 |
95303-06600 |
| 13 |
F115-01030705 |
FRICTION BLOCK |
1 |
|
| 14 |
GB/T91-2x10 |
COTTER PIN 2x10 |
2 |
|
| 15 |
F115-01030800 |
KNOB ASSY, FRICTION
ADJUSTING |
1 |
|
| 16 |
F115-01030001 |
TILLER HANDLE |
1 |
|
| 17 |
JB/T9740.1-M6 |
NIPPLE, GREASE M6 |
1 |
93700-06M03 |
| 18 |
F115-01030005 |
RUBBER SLEEVE |
1 |
|
| 19 |
F115-01030017 |
WASHER B, HANDLE |
2 |
|
| 20 |
F115-01030018 |
BUSH,NYLON |
2 |
|
| 21 |
GB/T889.2-M12x1.25 |
LOCK NUT M12x1.25 |
1 |
|
| 22 |
GB/T97.1-12 |
WASHER 12 |
1 |
92990-12200 |
| 23 |
F115-01030014 |
BRACKET, HANDLE |
1 |
63D-42121-22-8D |
| 24 |
F115-01030016 |
SPACER, HANDLE |
1 |
|
| 25 |
F115-01030015 |
WASHER A,HANDLE |
2 |
|
| 26 |
GB/T848-12 |
WASHER 12 |
1 |
|
| 27 |
F115-01030023 |
BOLT M12x1.25x80 |
1 |
|
| 28 |
F115-01030709 |
WASHER |
2 |
|
| 29 |
F115-01030710 |
FIXED BLOCK, HANDLE |
1 |
|
| 30 |
F115-01030708 |
LINER TUBE |
1 |
|
| 31 |
F115-01030706 |
BASE, SPRING |
2 |
|
| 32 |
F4-01090007 |
SPRING |
1 |
90501-23215 |
| 33 |
F4-01090006 |
BUSH |
1 |
90386-08032 |
| 34 |
F115-01030007 |
RUBBER, SUPPORT |
2 |
|
| 35 |
F115-01030009 |
BRACKET, SHIFT ROD |
1 |
|
| 36 |
F115-01030008 |
CLAMP, PULL ROD |
2 |
|
| 37 |
F115-01030006 |
BRACKET, THROTTLE
PULL ROD |
1 |
|
| 38 |
F115-01030003 |
THRUST WASHER, PLATE |
1 |
|
| 39 |
F115-01030010 |
PLATE |
1 |
|
| 40 |
GB/T5783-M6x14 |
BOLT M6x14 |
2 |
|
| 41 |
F115-01030700A |
THROTTLE LEVER ASSY |
1 |
|
| 42 |
F115-01030701A |
LEVER, THROTTLE |
1 |
|
| 43 |
GB/T879.4-3x14 |
PIN 3x14 |
1 |
|
| 44 |
F115-01030704 |
PLATE, SHIFT LEVER |
1 |
|
| 45 |
GB/T896-6 |
CIRCLIP 6 |
1 |
|
| 46 |
F115-01030703 |
FIXED PLATED,
THROTTLE |
2 |
|
| 47 |
F115-01030711A |
WASHER, NYLON |
2 |
|
| 48 |
T36-01030202 |
GEAR, THROTTLE |
1 |
650-42152-00-94 |
| 49 |
GB/T879.4-3x26 |
PIN 3x26 |
1 |
|
| 50 |
GB/T97.1-6 |
WASHER 6 |
11 |
92995-06600 |
| 51 |
GB/T5783-M6x30 |
BOLT M6x30 |
4 |
|
| 52 |
F115-01030400 |
FIXED PALTE ASSY,
SHIFT |
1 |
|
| 53 |
F115-01030600 |
SWING LINK ASSY,
THROTTLE |
1 |
|
| 54 |
GB/T896-8 |
CIRCLIP 8 |
1 |
99001-08600 |
| 55 |
F40-01030200A |
THROTTLE CABLE ASSY |
1 |
|
| 56 |
F115-01030012 |
CABLE CLIP |
1 |
|
| 57 |
F40-01030300A |
PUSH-PULL CABLE ASSY,
SHIFT |
1 |
|
| 58 |
F25-05160002 |
SPRING 1 |
2 |
|
| 59 |
F115-01030407 |
BUSH, PINION |
1 |
|
| 60 |
F115-01030408 |
ACTIVE GEAR, SHIFT
ROD |
1 |
|
| 61 |
F115-01030024 |
RUBBER SLEEVE, TILT
SWITCH |
1 |
|
| 62 |
F115-01031304 |
PLUG, HANDLE COVER |
1 |
|
| 63 |
F115-01031301 |
COVER, TILLER HANDLE |
1 |
|
| 64 |
F115-01030900 |
SHIFT HANDLE ASSY |
1 |
|
| 65 |
F40-01040000 |
MULTIFUNCTION TILLER
HANDLE |
1 |
|
