| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F4-01090401 | STOPER, HANG ROPE ASSY | 1 | 682-82556-00 |
| 2 | F115-01030200 | ENGINE STOP SWITCH ASSY | 1 | |
| 3 | F115-01030100 | START SWITCH ASSY | 1 | |
| 4 | F115-01030002 | IGNITION WIRE ASSY, 10 PIN | 1 | |
| 5 | F115-01030300 | BUZZER ASSY | 1 | |
| 6 | GB/T845-ST2.9x12F | SCREW ST2.9x12-F | 2 | |
| 7 | F115-01040000 | WARNINGWIRE, LAMP | 1 | |
| 8 | HT3x80 | NYLON CLAMP 3.0x80 | 3 | |
| 9 | F115-01030500 | INCHING SWITCH | 1 | |
| 10 | GB/T818-M3x14 | SCREW M3x14 | 2 | |
| 11 | E4-10040100W | TILT SWITCH ASSY | 1 | 703-82563-02 |

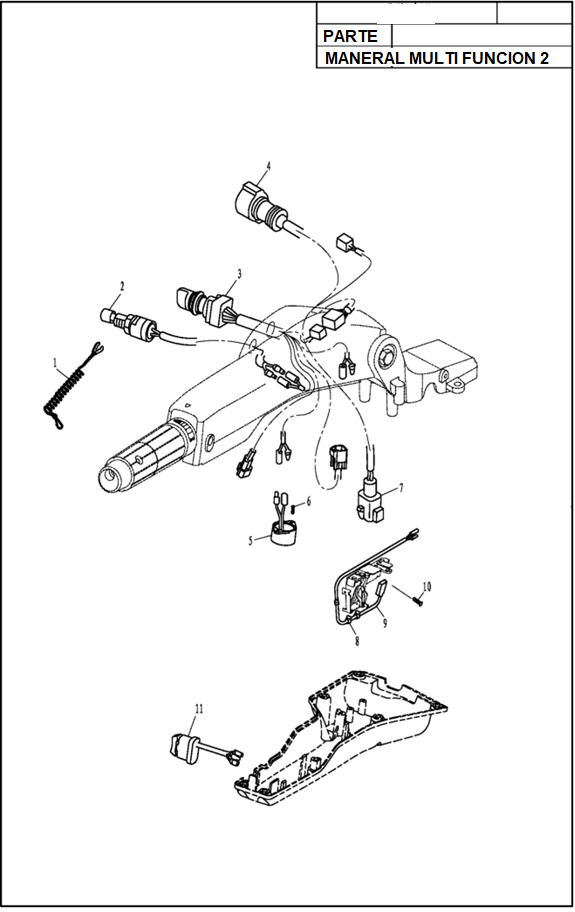

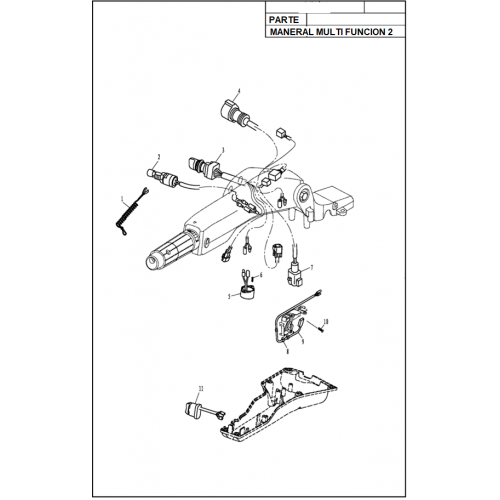

DIAGRAMA DE MANERAL MULTIFUNCION 2 F40EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE MANERAL MULTIFUNCION 2 F40EFI
