| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F25-02010002 | OIL SEAL 16x30x6 | 1 | 93104-16M01 |
| 2 | F25-00000014 | PIN 8x12 | 2 | 99530-08012 |
| 3 | F15-04000005 | PIPE, JOINT | 1 | 676-11372-00 |
| 4 | F25-02010003 | JOINT B, HOSE | 1 | |
| 5 | F40-02010001 | SEAT, EXHAUST MANIFOLD | 1 | |
| 6 | F15-07010005 | JAM 1/4 | 1 | |
| 7 | F25-02010005 | ANODE | 1 | |
| 8 | F15-07010009 | SEAL, ANODE | 1 | 66M-11328-00 |
| 9 | F15-07010011 | PLATE, ANODE | 1 | 66M-11327-00-94 |
| 10 | GB/T97.1-5 | WASHER 5 | 3 | 6Y1-24329-00 |
| 11 | GB/T5783-M5x12 | BOLT M5x12 | 1 | |
| 12 | F15-07010012 | PLATE, ANODE | 1 | 66M-12535-00 |
| 13 | GB/T97.1-6 | WASHER 6 | 10 | 92995-06600 |
| 14 | GB/T5783-M6X20 | BOLT M6x20 | 1 | |
| 15 | F25-02000011 | GASKET, EXHAUST PIPE | 1 | |
| 16 | F40-02010005 | PIPE, EXHAUST | 1 | |
| 17 | GB/T5782-M6X50 | BOLT M6x50 | 3 | |
| 18 | F40-02010006 | SEAL, EXHAUST PIPE | 1 | |
| 19 | F40-02010007 | GASKET, CLAPBOARD | 2 | |
| 20 | F40-02010008 | CLAPBOARD | 1 | |
| 21 | F40-02010009L | EXHAUST MANIFOLD L | 1 | |
| F40-02010009S | EXHAUST MANIFOLD S | 1 | ||
| 22 | F40-02000008 | RUBBER JACKET B | 1 | |
| 23 | GB/T5783-M6X25 | BOLT M6x25 | 6 | |
| 24 | F40-02000007 | RUBBER JACKET A | 1 | |
| 25 | GB/T818-M5x16 | SCREW M5x16 | 2 | 90157-05M19 |
| 26 | F40-02000004 | EXHAUST GUIDE, PLASTIC | 1 | |
| 27 | F25-02000003 | CLAPBOARD, EXHAUST | 1 | 65W-45151-00 |
| 28 | F15-00000006 | PIN 6x12 | 2 | 93606-12019 |
| 29 | GB/T97.1-8 | WAHSER 8 | 10 | 92995-08100 |
| 30 | GB/T5783-M8X30 | BOLT M8x30 | 4 | 90119-08102 |
| 31 | F40-00000002 | RUBBER PLUG, UPPER | 1 | 6C5-45155-00 |
| 32 | GB/T5782-M8x80 | BOLT M8x80 | 8 | |
| 33 | F40-02000001L | UPPER CASING L | 1 | |
| F40-02000001S | UPPER CASING S | |||
| 34 | T40-02000004 | RUBBER BUSH | 1 | 66T-45318-00 |
| 35 | T40-02000003 | BUSH, DRIVE SHAFT | 1 | |
| 36 | F40-02000003 | JACKET, DRIVE SHAFT | 1 | |
| 37 | GB/T893.1-32 | CIRCLIP 32 | 1 | |
| GB/T893.1-30 | CIRCLIP 30 | 93420-30042 | ||
| 38 | F15-04000003 | GASKET, DRAIN BOLT | 1 | 90430-14M09 |
| 39 | F15-04000002 | BOLT, DRAIN | 1 | 90340-14M00 |

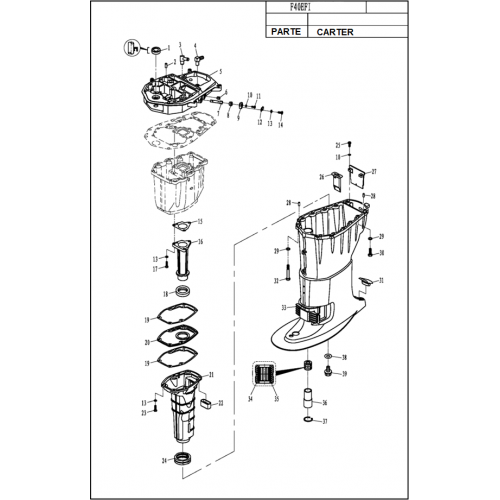

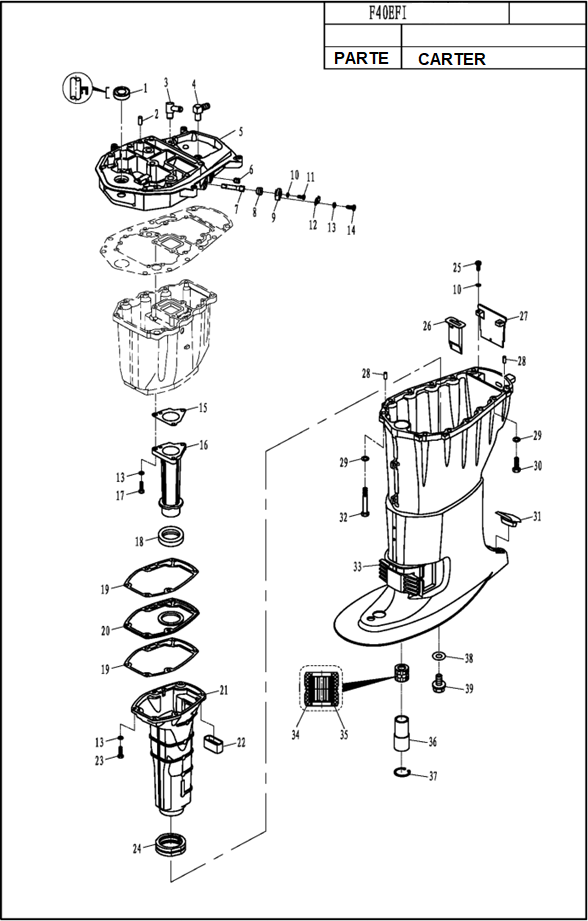

DIAGRAMA DE CARTER F140EFI
