| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F60-05000041A | FLYWHEEL COVER | 1 | |
| 2 | GB/T5783-M6X20 | BOLT M6x20 | 1 | |
| 3 | GB/T97.1-6 | WASHER 6 | 8 | 92995-06600 |
| 4 | F25-05000026 | NUT, FLY WHEEL | 1 | 90170-20137 |
| 5 | F25-05000025 | WASHER, FLYWHEEL NUT | 1 | 90201-21M18 |
| 6 | F40-05000700EFI | FLY WHEEL ASSY | 1 | |
| 7 | GB/T5783-M6X30 | BOLT M6x30 | 7 | |
| 8 | F40-05000600EFI | STATOR COIL ASSY | 1 | |
| 9 | F40-05000034 | BRACKET, COIL | 1 | |
| 10 | F8-00000005 | HOLLOW PIN | 2 | |
| 11 | F25-05000024 | WOODRUFF KEY, FLY WHEEL | 1 | 65W-11545-00 |
| 12 | GB/T5783-M5x16 | BOLT M5x16 | 2 | |
| 13 | GB/T97.1-5 | WASHER 5 | 2 | 6Y1-24329-00 |
| 14 | T85-05040004 | PLATE B, PULSER COIL | 1 |

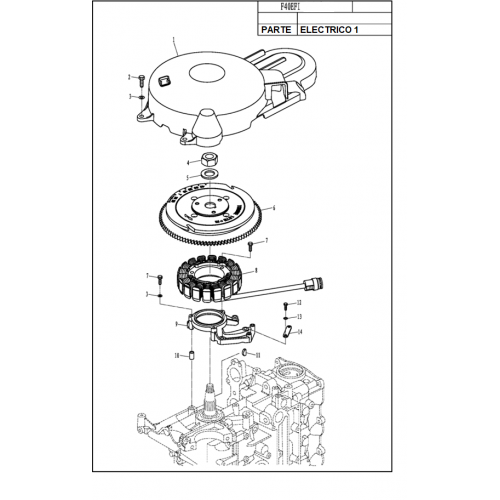

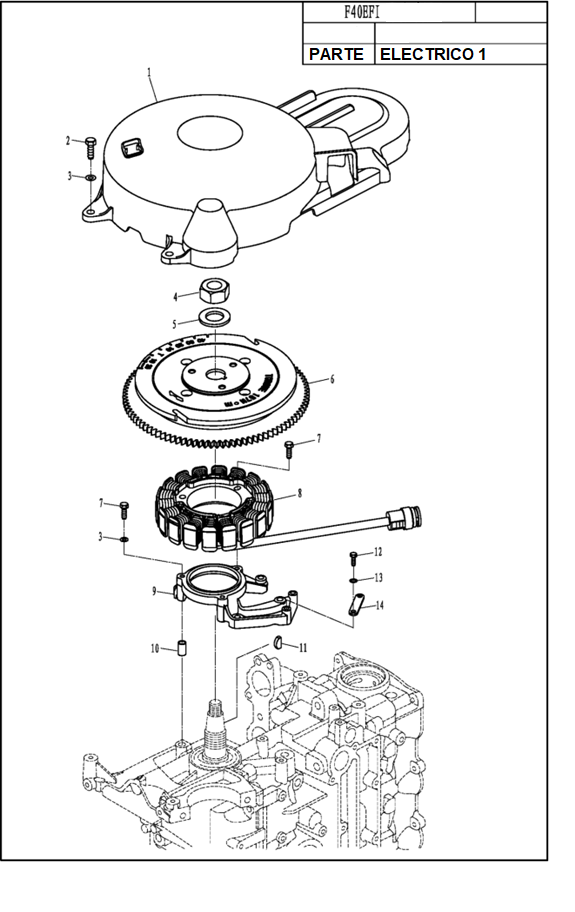

DIAGRAMA ELECTRICO 1 F40EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA ELECTRICO 1 F40EFI
- Disponibilidad: In Stock
-
$0,00MXN
- Sin impuestos: $0,00MXN
