| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T5783-M6X25 | BOLT M6x25 | 6 | |
| 2 | GB/T97.1-6 | WASHER 6 | 13 | 92995-06600 |
| 3 | F40-05091401EFI | BRACKET, MAIN RELAY | 2 | |
| 4 | F40-05091402EFI | DAMPER, MAIN RELAY | 2 | |
| 5 | T40-05000028 | WASHER, IGNITION COIL | 1 | 624-42542-00 |
| 6 | F40-05000060EFI | FIXED PLATE, MAIN RELAY | 1 | |
| 7 | F40-05091400EFI | MAIN RELAY | 2 | |
| 8 | GB/T6170-M6 | NUT M6 | 2 | 95303-06600 |
| 9 | GB/T5783-M6X35 | BOLT M6x35 | 2 | |
| 10 | F40-05000063EFI | PLATE, SENSOR | 1 | |
| 11 | GB/T5783-M5x16 | BOLT M5x16 | 2 | |
| 12 | GB/T97.1-5 | WASHER 5 | 2 | 6Y1-24329-00 |
| 13 | F40-05091600EFI | SENSOR, CRANKSHAFT POSITION | 1 | |
| 14 | GB/T5783-M6x10 | BOLT M6x10 | 1 | |
| 15 | F40-05000059EFI | CLAMP C | 1 | |
| 16 | F40-05090200EFI | IGNITION COIL ASSY | 3 | |
| 17 | F8-05000021 | BIG WASHER | 3 | |
| 18 | GB/T5782-M6X40 | BOLT M6x40 | 3 | |
| 19 | GB/T5783-M6x16 | BOLT M6x16 | 5 | |
| 20 | F40-05000003 | CLAMP | 1 | |
| 21 | F40-05090700EFI | SENSOR, WATER TEMPERATURE | 1 | |
| 22 | F40-05000042EFI | OIL PRESSURE SENSOR | 1 | |
| 23 | F15-07000021 | BUSH, INTAKE SILENCER | 1 | 90387-06M43 |
| 24 | F8-05000007 | CDI ABSORBER ASSY | 3 | 90480-13M24 |
| 25 | F40-05000009-2EFI | BRACKET, FIXED PLATE | 1 | |
| 26 | GB/T5783-M6X20 | BOLT M6x20 | 5 | |
| 27 | F40-05000009-1EFI-C | FIXED PLATE, ECU | 1 | |
| 28 | F40-05000065EFI | CLAMP D | 4 | |
| 29 | GB/T5783-M6x12 | BOLT M6x12 | 2 | |
| 30 | F40-05000049EFI | PLATE, RELAY | 1 | |
| 31 | F40-05091500EFI | RELAY, CANSITER | 1 | |
| 32 | F40-05090100EFI | ECU UNIT | 1 | |
| F40-05090100EFI-B | ECU-B UNIT | 1 | ||
| 33 | F40-05001000EFI | IGNITION WIRE ASSY EFI | 1 | |
| F40-05001000EFI-B | EFI IGNITION WIRE ASSY EFI 2022 | 1 | ||
| 34 | F40-05001000-1EFI | FUSE 40A | 1 | |
| F40-05001000-4EFI | FUSE 7.5A | 1 | ||
| 35 | F40-05090101EFI-B | BUSH, ECU | 4 |

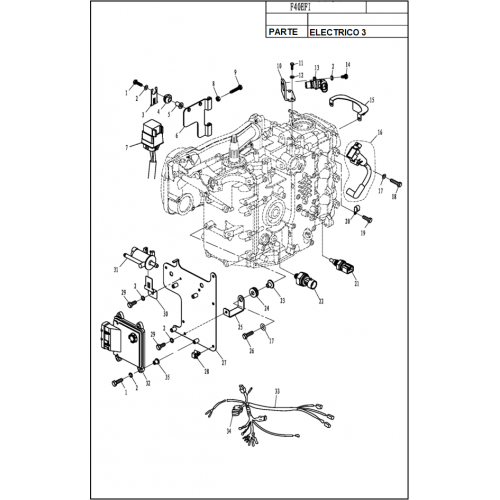

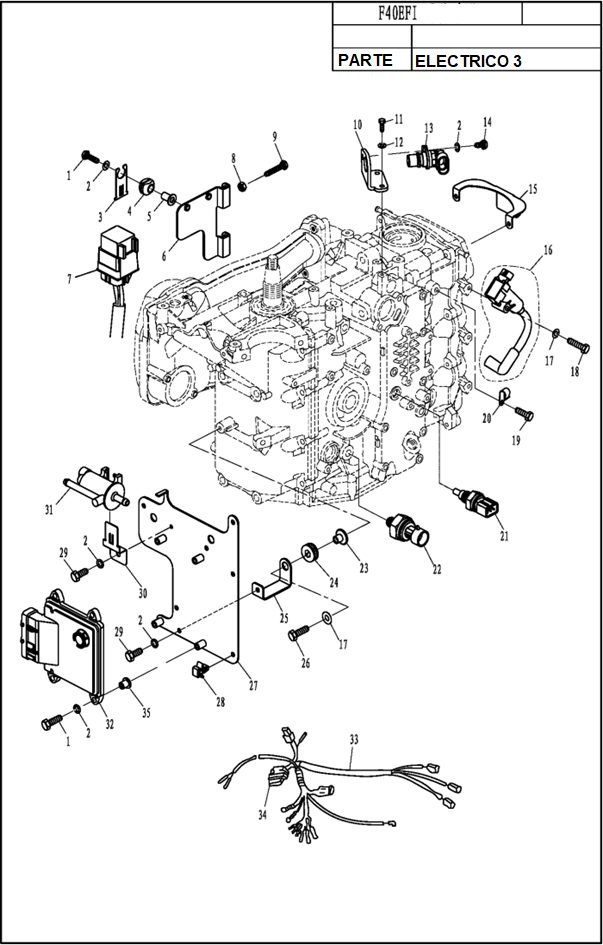

DIAGRAMA ELECTRICO 3 F40EFI
