| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T5783-M6X20 | BOLT M6x20 | 1 | |
| 2 | GB/T97.1-6 | WASHER 6 | 3 | 92995-06600 |
| 3 | F40-05090600EFI | MAT/MAP SENSOR | 1 | |
| 4 | F40-05090601EFI | O-RING, THERMOSENSOR | 1 | |
| 5 | F40-05090503EFI | STEP MOTOR | 1 | |
| 6 | F40-05090503-1EFI | O-RING, STEP MOTOR | 1 | |
| 7 | F40-05090501EFI | BODY, IDLE VALVE | 1 | |
| 8 | F40-05090502EFI | O-RING | 1 | |
| 9 | GB/T818-M4x10 | SCREW M4x10 | 2 | |
| 10 | GB/T97.1-4 | WASHER 4 | 2 | 6Y1-24329-00 |
| 11 | GB/T818-M5x16 | SCREW M5x16 | 2 | 90157-05M19 |
| 12 | GB/T93-5 | WASHER, SPRING 5 | 4 | |
| 13 | GB/T97.1-5 | WASHER 5 | 4 | 6Y1-24329-00 |
| 14 | F40-05000026EFI | FIXED HOSE | 1 | |
| 15 | F40-05090803EFI | SEAL, INTAXE SILENCER | 3 | |
| 16 | F40-05090800EFI | INTAKE SILENCER ASSY | 1 | |
| 17 | F40-05090403EFI | SEAL, THROTTLE | 1 | |
| 18 | F40-05090400EFI | THROTTLE ASSY | 1 | |
| 19 | GB/T818-M4x16 | SCREW M4x16 | 2 | |
| 20 | GB/T93-4 | WASHER,SPRING 4 | 2 | |
| 21 | GB/T96-4 | WASHER 4 | 2 | |
| 22 | F40-05090401EFI | POSITION SENSOR, THROTTLE | 1 | |
| 23 | GB/T818-M4X16 | SCREW M4x16 | 2 | |
| 24 | HT4.0x300 | NYLON CLAMP 4.0x300 | 2 | |
| 25 | F40-05090408EFI | RUBBER JACKET, THROTTLE | 1 | |
| 26 | F40-05000064EFI | CONDUIT, THROTTLE | 1 | |
| 27 | GB/T5783-M6x14 | BOLT M6x14 | 1 | |
| 28 | F40-05000050EFI | HOSE A | 1 | |
| 29 | F40-05000048EFI | FIXED HOSE | 1 |

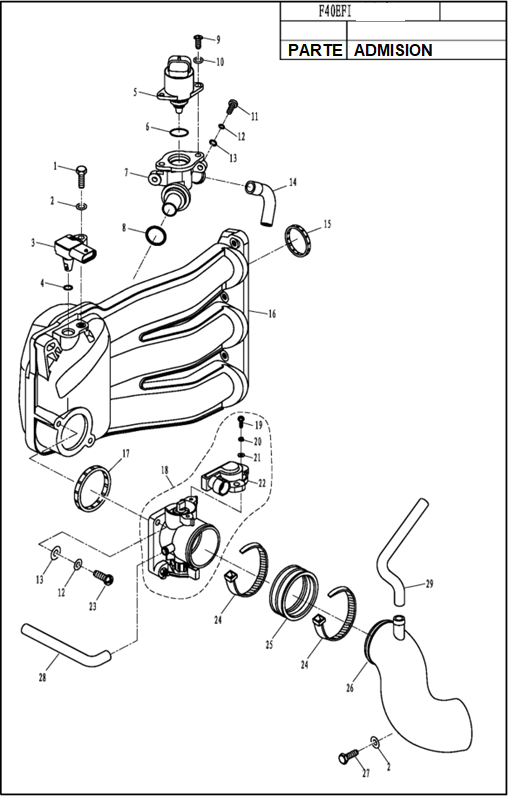

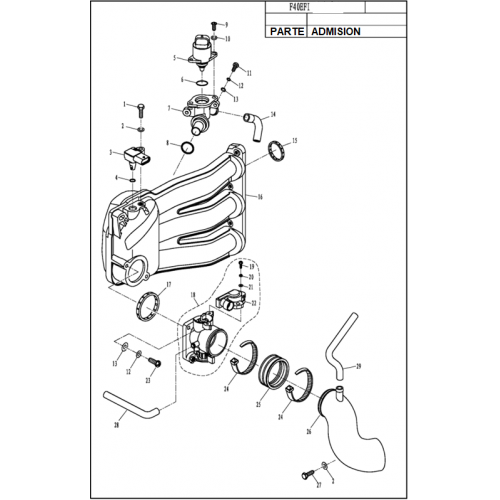

DIAGRAMA DE ADMISION F40EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE ADMISION F40EFI
