| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F25-05020003 | OIL SEAL B 43x54.8x6R | 1 | 93102-43M42 |
| 2 | F40-05000001 | CRANKSHAFT ASSY | 1 | |
| 3 | F25-05010302-2 | BEARING SHELL, CRANKSHAFT | 8 | 62Y-11416-10 |
| 4 | F25-05020002 | OIL SEAL A 35x46.85x61 | 1 | 93102-35M47 |
| 5 | F25-05020200 | CONNECTING ROD ASSY | 3 | 67C-11650-00 |
| 6 | F25-05020204 | BOLT, CONNECTING ROD | 6 | 62Y-11654-00 |
| 7 | F25-05020203-2 | BEARING, CON-ROD, BROWN | 6 | 62Y-11656-10 |
| 8 | F25-05020106 | CIRCLIP | 6 | 93450-17129 |
| 9 | F25-05020105 | PIN, PISTON | 3 | 62Y-11633-00 |
| 10 | F40-05020100 | PISTON ASSY | 3 | |
| 11 | F40-05020101 | PISTON | 3 | 65W-11631-00 |
| 12 | F25-05020102 | PISTON RING ASSY | 3 | 67C-11603-00 |

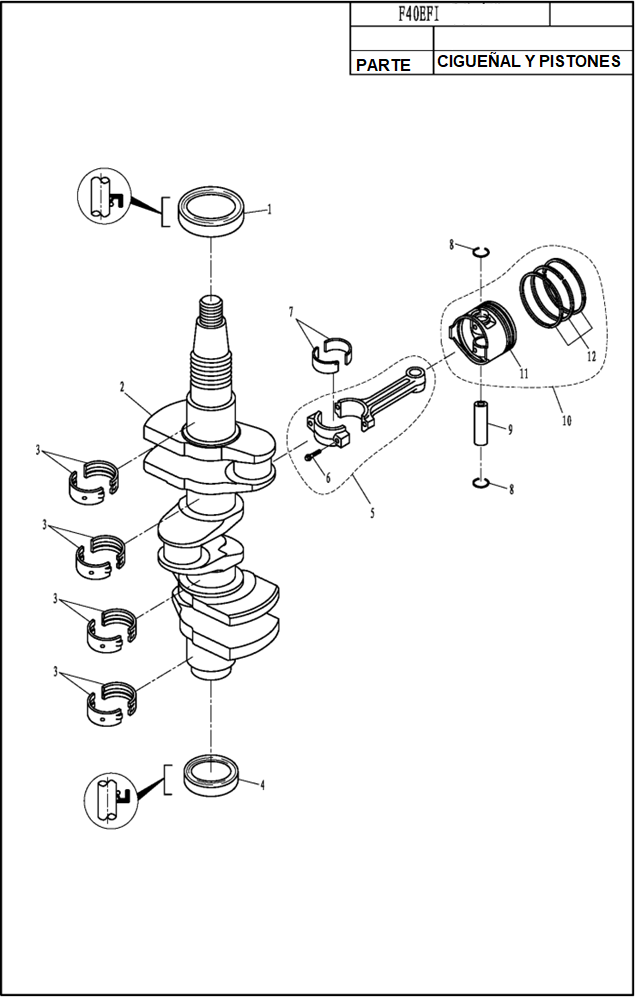

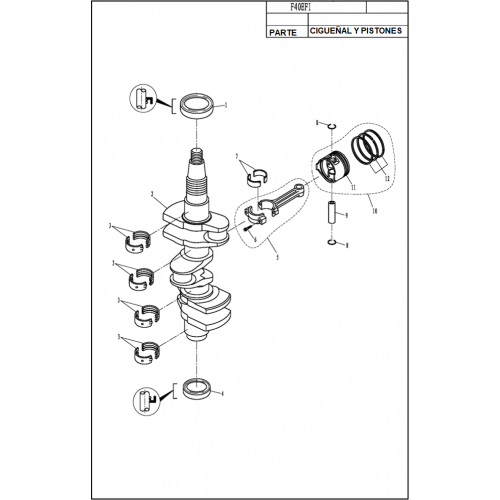

DIAGRAMA DE CIGUEÑAL F40EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE CIGUEÑAL F40EFI
- Disponibilidad: In Stock
-
$0,00MXN
- Sin impuestos: $0,00MXN
