| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T5783-M8x35 | BOLT M8x35 | 1 | 97075-08035 |
| 2 | GB/T97.1-8 | WAHSER 8 | 9 | 92995-08100 |
| 3 | F25-05010106 | POTHOOK, ENGINE | 1 | 65W-11119-00 |
| 4 | GB/T889.1-M8 | LOCK NUT M8 | 1 | |
| 5 | F40-05010000 | CRANKCASE ASSY | 1 | |
| 6 | F15-07010004 | JAM 1/8 | 4 | |
| 7 | F25-00000014 | PIN 8x12 | 2 | 99530-08012 |
| 8 | F25-05010104 | JAM 1/2 | 1 | |
| 9 | F25-05010103 | JAM 3/4 | 1 | |
| 10 | F25-05000035 | BOLT M8x80 | 8 | |
| 11 | F15-07000030 | BOLT M6x35 | 8 | |
| 12 | GB/T97.1-6 | WASHER 6 | 18 | 92995-06600 |
| 13 | F40-00000003 | GASKET, ENGINE | 1 | 6BG-11351-00 |
| 14 | F25-05000100 | OIL CLEANER | 1 | |
| 15 | F15-07010003 | BOLT UNION | 1 | 90401-20M00 |
| 16 | F40-05000004 | GASKET, EXHAUST COVER | 1 | |
| 17 | F40-05000005EFI | COVER, EXHAUST | ||
| 18 | GB/T5783-M6X35 | BOLT M6x35 | 10 | |
| 19 | F40-05000038 | GASKET, JAM | 1 | |
| 20 | F40-05000037 | JAM M18x1.5 | 1 | |
| 21 | F25-05010113 | PIPE, JOINT | 1 | 62Y-11372-01 |
| 22 | F15-07010021 | COVER, THERMOSTAT | 1 | 6H3-12413-00-1S |
| 23 | F15-07000031 | THERMOSTAT | 1 | |
| 24 | F15-07010022 | COVER, THERMOSTAT | 1 | 6H3-12414-A1 |
| 25 | F40-05000003 | CLAMP | 1 | |
| 26 | F40-05000022EFI | HOSE A 6x11x330 | 1 | |
| 27 | F40-05000067EFI | HOSE A SHIELD | 1 | |
| 28 | F60-05000047 | HOSE B 6x11x330 | 2 | |
| 29 | F60-05000047-1 | FIXED HOSE SHIELD | 1 | |
| 30 | F40-03000016 | THREE WAY | 1 | |
| 31 | F40-05000052EFI | HOSE G 6x11x330 | 1 | |
| 32 | F40-05000068EFI | HOSE B SHIELD | 1 | |
| 33 | F25-03000021W | FIXED HOSE | 1 | |
| 34 | F40-03000004 | HOSE F 5x10x300 | 1 | |
| 35 | F40-03000004-1 | HOSE E SHIELD | 1 | |
| 36 | F40-03000002 | HOSE C 6x11x130 | 1 | |
| 37 | F40-03000002-1 | HOSE C SHIELD | 1 | |
| 38 | F40-03000003 | HOSE D 5x10x200 | 1 | |
| 39 | F40-03000003-1 | HOSE D SHIELD | 1 |

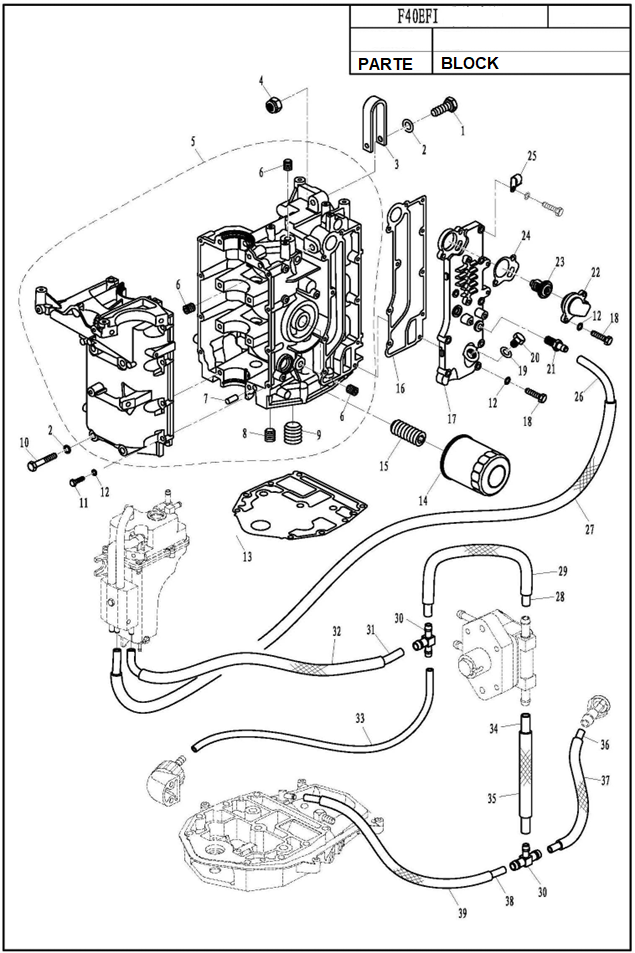

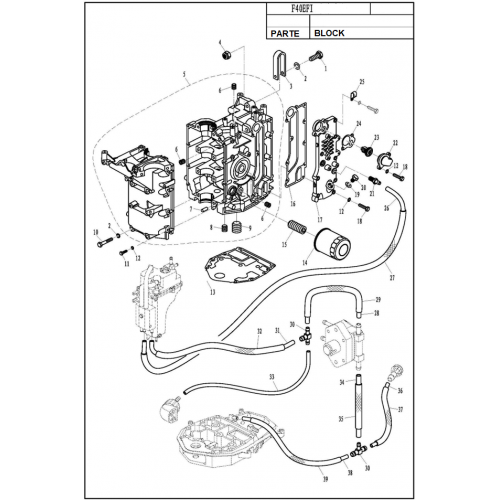

DIAGRAMA DE BLOCK F40EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE BLOCK F40EFI
