| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F40-05000007 | NUT, TIMING BELT | 1 | |
| 2 | F25-05000021 | BELT PULLEY, TIMING | 1 | 65W-11536-10 |
| 3 | F25-05000023 | TIMING BELT | 1 | 65W-46241-00 |
| 4 | F40-05000008 | PLATE, TIMING BELT | 1 | |
| 5 | F4-04000019 | WOODRUFF KEY, FLY WHEEL | 1 | 90280-04M06 |
| 6 | T40-00000008 | BOLT M10x1.25x40 | 1 | 97075-10045 |
| 7 | GB/T97.1-10 | WASHER 10 | 1 | 90201-10120 |
| 8 | F25-05050018 | WASHER, DRIVEN PULLEY | 1 | 90201-10M06 |
| 9 | F40-05040006 | DRIVEN PULLEY | 1 | |
| 10 | F25-05050016 | PIN | 1 | 93605-14143 |
| 11 | F40-05040201 | CAMSHAFT ASSY | 1 | |
| 12 | F40-05040407 | GASKET, OIL PUMP | 1 | |
| 13 | F40-05040400 | OIL PUMP ASSY | 1 | |
| 14 | F40-05040401 | BODY, OIL PUMP | 1 | |
| 15 | F40-05040405 | GASKET, OIL PUMP | 1 | |
| 16 | F40-05040404 | ROTOR SHAFT, OIL PUMP | 1 | |
| 17 | GB/T309-4x15.8 | NEEDLE ROLLER 4x15.8 | 1 | |
| 18 | F40-05040403 | INNER ROTOR, OIL PUMP | 1 | |
| 19 | F40-05040402 | OUTER ROTOR, OIL PUMP | 1 | |
| 20 | F15-07110003 | PLUG | 1 | |
| 21 | F40-05040408 | SPRING | 1 | |
| 22 | F40-05040406 | COVER, OIL PUMP | 1 | |
| 23 | GB/T823-M6x16 | SCREW M6x16 | 2 | |
| 24 | GB/T97.1-6 | WASHER 6 | 4 | 92995-06600 |
| 25 | GB/T5782-M6x40 | BOLT M6x40 | 4 |

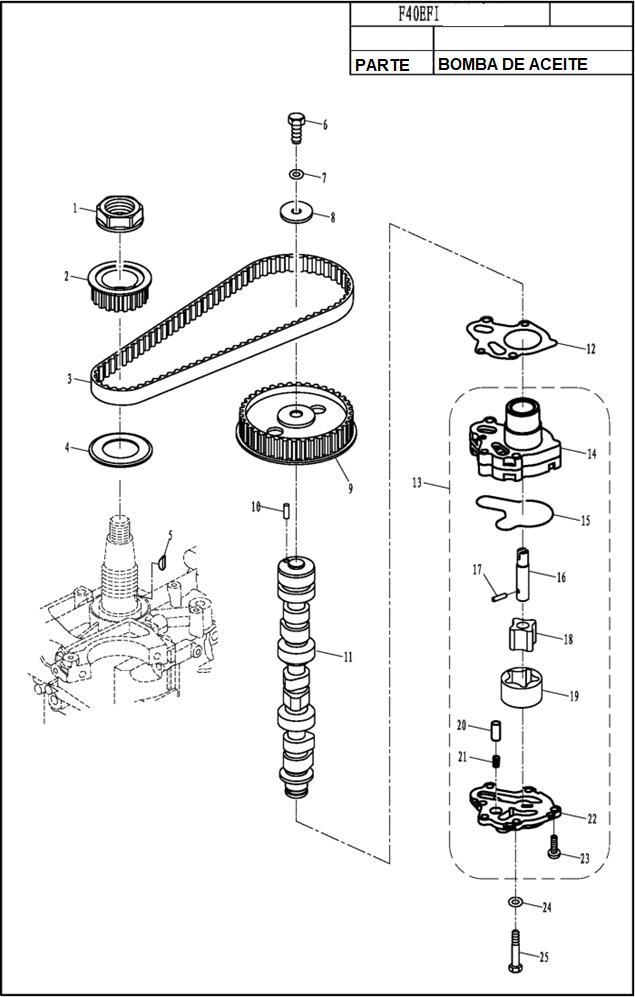

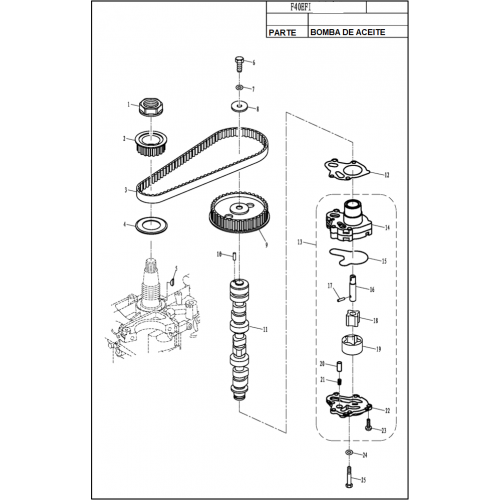

DIAGRAMA DE BOMBA DE ACEITE F40EFI
