| S.N. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T5783-M6x14 | BOLT M6x14 | 1 | |
| 2 | GB/T93-6 | WASHER, SPRING 6 | 1 | 92995-06100 |
| 3 | GB/T6170-M8 | NUT M8 | 1 | 95380-08600 |
| 4 | F40-05000036 | BRACKET, FILTER CUP | 1 | |
| 5 | T85-05000300 | FUEL FILTER ASSY | 1 | 64J-24560-00 |
| 6 | F15-07080001 | ELEMENT, FILTER | 1 | 61N-24563-00 |
| 7 | T85-05000302 | FLOAT | 1 | 68V-24469-01 |
| 8 | GB/T3452.1-32.5x1.8 | O-RING 32.5x1.8 | 1 | |
| 9 | T85-05000301 | CUP, FILTER | 1 | 68V-247521-01 |
| 10 | F4-04000030 | CLIP SPRING B | 6 | 90467-08004 |
| 11 | F40-03000005EFI | HOSE A 5x10x720 | 1 | |
| 12 | F40-03000005EFI-1 | FUEL HOSE 6x11x680 | 1 | |
| 13 | F40-05000021EFI | FIXED HOSE | 1 | |
| 14 | F40-05000066EFI | SHEATH, FUEL PIPE | 1 | |
| 15 | S7133-13.3 | CLAMP B | 1 | |
| 16 | F40-05100005EFI | FUEL HOSE SHIELD | 1 | |
| 17 | F40-05100005EFI-1 | 1 | ||
| 18 | GB/T3452.1-25x3.0 | O-RING 25x3.0 | 1 | |
| 19 | GB/T5783-M6X30 | BOLT M6x30 | 2 | |
| 20 | GB/T97.1-6 | WASHER 6 | 2 | 92995-06600 |
| 21 | F40-05050000 | FUEL PUMP ASSY | 1 | 6C5-24410-00 |
| 22 | F25-05130004 | PLUNGER | 1 | 62Y-13131-01 |
| 23 | F25-05130003 | SPRING, PLUNGER | 1 | 62Y-24454-00 |
| 24 | F25-05130001 | SEAT, FUEL PUMP | 1 | |
| 25 | GB/T6170-M5 | NUT M5 | 4 | 95380-05600 |
| 26 | F25-05130002 | SPRING, CLAPBOARD | 1 | 62Y-24423-00 |
| 27 | F25-05130008 | NEEDLE 4x16.5 | 1 | |
| 28 | F25-05130100 | DIAPHRAGM SHAFT ASSY | 1 | 62Y-24411-02 |
| 29 | F4-04090011 | SCREW, VALVE | 2 | |
| 30 | F4-04090005 | PLATE, CHECK VALVE | 2 | 6L5-24421-00 |
| 31 | F40-05050200 | COVER ASSY, FUEL PUMP | 1 | |
| 32 | F25-05130005 | UPPER DIAPHRAGM | 1 | 62Y-24471-00 |
| 33 | F25-05130006A | GASKET,FUEL PUMP COVER | 1 | |
| 34 | F25-05130007 | COVER, FUEL PUMP | 1 | |
| 35 | GB/T818-M5x45 | SCREW M5x45 | 4 |

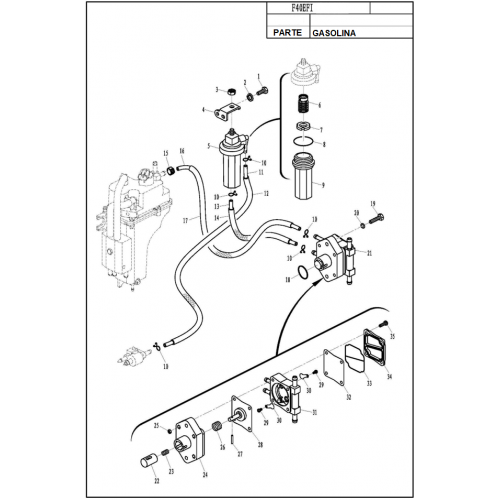

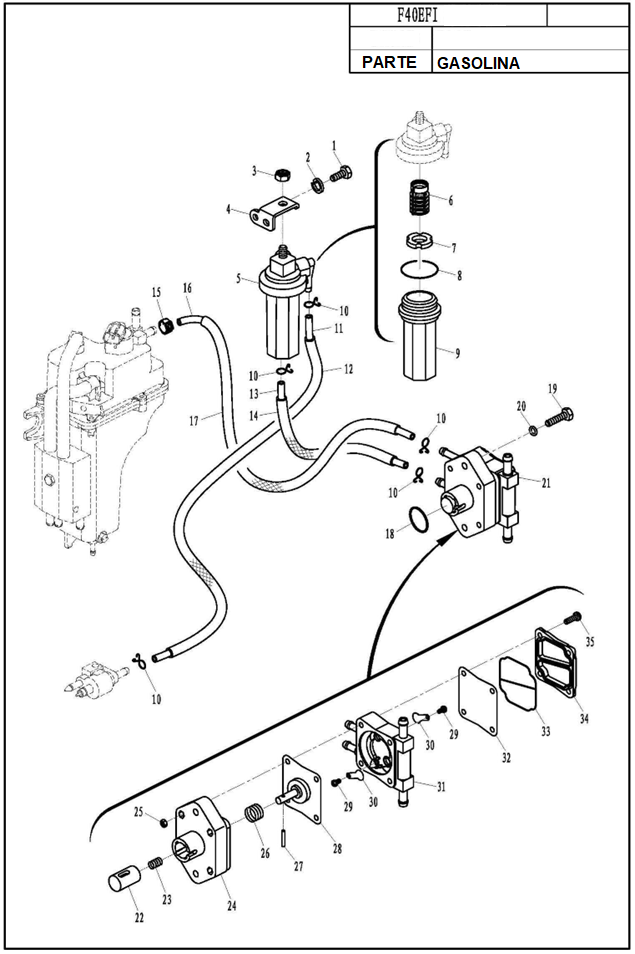

DIAGRAMA DE GASOLINA F40EFI
