| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F15-01010007 | NUT, SELF-LOCKING | 2 | 90185-22043 |
| 2 | F15-01010003 | PLATE, TWO HOLE | 1 | 6J8-43113-01 |
| 3 | F15-01010001 | DOUBLE-EDGED TUBE | 1 | 63W-43131-10 |
| 4 | GB/T818-M6x8 | SCREW M6x8 | 1 | |
| 5 | GB/T896-5 | CIRCLIP 5 | 3 | 99080-05600 |
| 6 | F15-01010301L | BRACKET, ROTARY L | 1 | |
| F15-01010301S | BRACKET, ROTARY S | 1 | 63V-43311-03-4D | |
| 7 | F15-01010311 | BUSH, NYLON | 1 | |
| 8 | F15-01010302 | BUSH, ROTARY BRACKET | 2 | 90386-22M94 |
| 9 | F15-01010002 | WASHER, NYLON | 2 | 90202-22M54 |
| 10 | F15-01010100 | LEFT CLAMP BRACKET ASSY | 1 | 63V-43111-00-4D |
| 11 | F15-01010200 | RIGHT CLAMP BRACKET ASSY | 1 | 63V-43112-01-4D |
| 12 | F25-01010104 | SCREW, CLAMP | 2 | 90149-14M12 |
| 13 | F4-01010004 | HANDLE, CLAMP | 2 | 69M-G3118-00 |
| 14 | F4-01010005 | RIVET, CLAMP HANDLE | 2 | 90243-04M01 |
| 15 | F4-01010003 | CLAMP PLATE | 2 | 6F5-43114-00 |
| 16 | GB/T6170-M6 | NUT M6 | 1 | 95303-06600 |
| 17 | GB/T97.1-6 | WASHER 6 | 1 | 92995-06600 |
| 18 | F15-01010202 | EARTH WIRE A | 1 | 6E5-82148-00 |
| 19 | GB/T5783-M8x12 | BOLT M8x12 | 2 | 97313-08012 |
| 20 | F15-01010306 | LEVER, TILT LOCK | 1 | 63V-43641-00 |
| 21 | F15-01010316 | LOCK ANGLE L | 1 | 63V-43659-00 |
| 22 | JB/T9740.1-M6 | NIPPLE, GREASE M6 | 1 | 93700-06M03 |
| 23 | GB/T5782-M6x145 | BOLT M6x145 | 1 | |
| 24 | F15-01010305 | TILT CLAMP HANDLE ASSY | 1 | 63V-43630-00 |
| 25 | F15-01010313A | SUPPORT BRACKET ASSY | 1 | |
| 26 | F15-01010308 | BUSH, TILT LOCK | 1 | |
| 27 | F15-01010309 | WASHER, NYLON | 2 | |
| 28 | F15-01010312A | SHAFT, STOPPER | 1 | |
| 29 | GB/T818-M5x6 | SCREW M5x6 | 1 | |
| 30 | F15-01010307A | ROD, LOCKED BRACKET | 1 | |
| 31 | F15-01010304 | SPRING, TENSION | 1 | 90507-20M00 |
| 32 | F15-01010006 | TUBE, BOLT | 1 | 90387-06M13 |
| 33 | F15-01010317-3 | LOCK ANGLE S | 1 | 63V-43611-00 |
| 34 | F15-01010317-2 | OUT BRACKET, TILT LOCK | 1 | 63V-43615-00 |
| 35 | F15-01010317-1 | INNER BRACKET, TILT LOCK | 1 | 63V-43614-00 |
| 36 | F15-01010315 | SPRING, TENSION | 1 | |
| 37 | GB/T896-4 | CIRCLIP 4 | 1 | |
| 38 | F15-01010314A | SPRING, TENSION | 1 | 63V-43656-00 |
| 39 | F15-01010400 | LIMITATIVE ROD, TILT LOCK | 1 | 689-43160-00 |

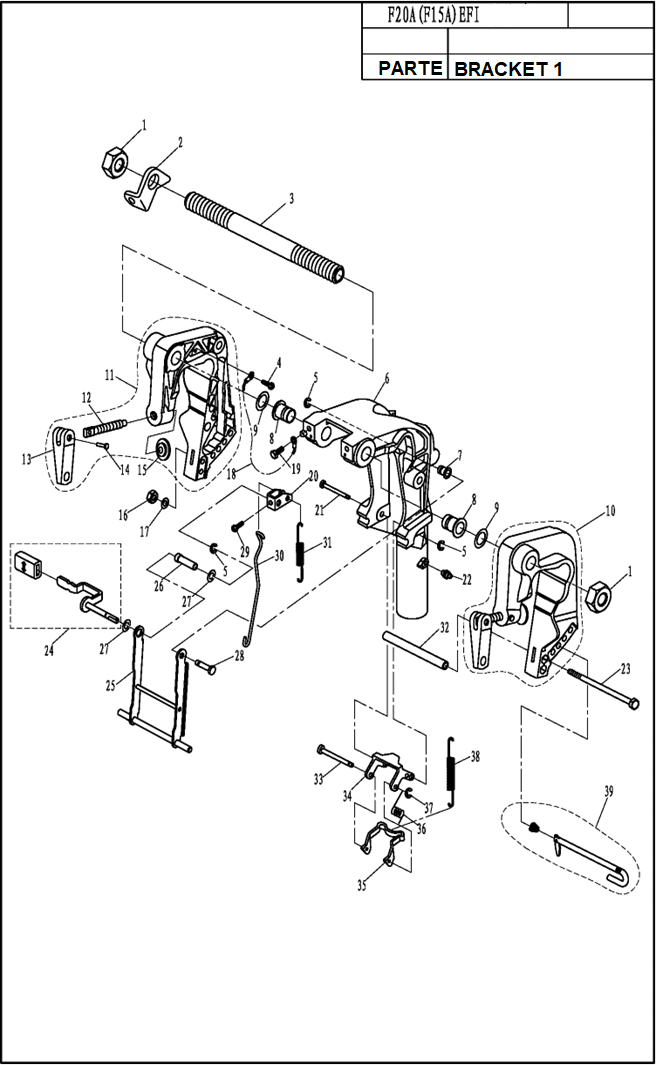

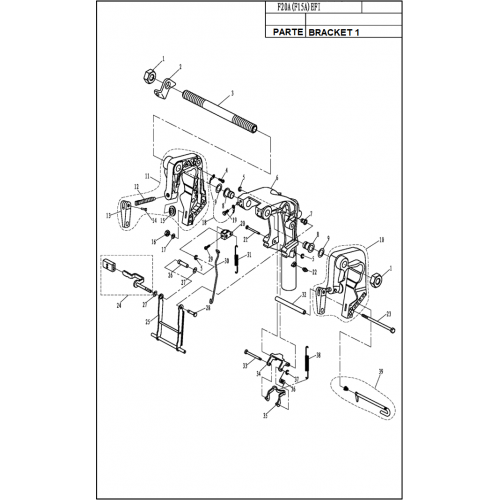

DIAGRAMA DE BRACKET 1 PARSUN YAMAHA F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE BRACKET 1 PARSUN YAMAHA F20EFI
