| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F20-01020200 | GRIP ASSY, TILLER HANDLE | 1 | |
| 2 | GB/T820-M5x25 | SCREW M5x25 | 1 | 90152-05011 |
| 3 | GB/T848-10 | WASHER 10 | 2 | 90201-10M02 |
| 4 | F4-01090007 | SPRING | 1 | 90501-23215 |
| 5 | F4-01090006 | BUSH | 1 | 90386-08032 |
| 6 | F4-01090003 | FRICTION, TILLER HANDLE | 1 | 6G1-42126-00 |
| 7 | F15-01030100 | THROTTLE LEVER ASSY | 1 | 65W-42138-00 |
| 8 | GB/T5783-M6X20 | BOLT M6x20 | 2 | |
| 9 | F15-01030005 | FIXED PLATED, THROTTLE | 1 | 65W-42159-00 |
| 10 | F4-01090401 | STOPER, HANG ROPE ASSY | 1 | 682-82556-00 |
| 11 | T40-01020101 | ENGINE STOP SWITCH ASSY | 1 | 66T-82575-01 |
| 12 | F15-01030200 | KNOB ASSY, FRICTION ADJUSTING | 1 | 65W-42125-00 |
| 13 | GB/T91-1.6x12 | COTTER PIN 1.6x12 | 1 | |
| 14 | F4-08000014 | MARK 14 | 1 | |
| 15 | F4-08000016 | MARK 16 | 1 | |
| 16 | F15-01030001 | TILLER HANDLE | 1 | 65W-42101-01-4D |
| 17 | F15-01000007 | BUSH, HANDLE | 1 | 90386-40MA0 |
| 18 | F15-01000008 | WAVE WAHSER | 2 | 90201-43M00 |
| 19 | F15-01000009 | WAVE WAHSER | 2 | 90206-43M22 |
| 20 | F15-01000012 | WASHER, NYLON | 1 | 90202-43M57 |
| 21 | F15-01000011 | BUSH, HANDLE | 1 | 90386-40M99 |
| 22 | F15-01000013 | PLATE, HANDLE | 1 | 65W-42131-01 |
| 23 | GB/T889.2-M10x1.25 | LOCK NUT M10x1.25 | 1 | 90185-10051 |
| 24 | F20-01020100 | THROTTLE CABLE ASSY | 2 | 6AH-26311-00 |
| 25 | GB/T823-M6x16 | SCREW M6x16 | 5 | |
| 26 | GB/T97.1-6 | WASHER 6 | 7 | 92995-06600 |
| 27 | F20-01000003 | COVER, BRACKET | 1 | |
| 28 | F8-08000010 | MARK, GEAR SHIFT | 1 | |
| 29 | F20-01000001 | JACKET, RUBBER | 1 | 6AH-42551-00 |
| 30 | GB/T5783-M6x14 | BOLT M6x14 | 1 | |
| 31 | F20-01000002 | PRESSING PLATE | 1 | 6AH-44554-00 |
| 32 | GB/T9074.14-M6X25 | BOLT M6x25 | 1 | 97095-06025-00 |
| 33 | F25-00000004 | BIG WASHER 6 | 1 | 92992-06100 |
| 34 | F15-00000008 | TUBE, FLANGE | 1 | |
| 35 | F15-00000009 | WAVE WASHER | 1 | 90206-13M10 |
| 36 | F20-00000008 | HANDLE, SHIFT | 1 | |
| 37 | F20-00000009 | SHIFT ROD | 1 | |
| 38 | F15-00000012 | SPRING 1.8 | 1 | 90468-18008 |
| 39 | F15-01030003 | BOLT STUD | ||
| 40 | F20-01020000 | TILLER HANDLE ASSY |

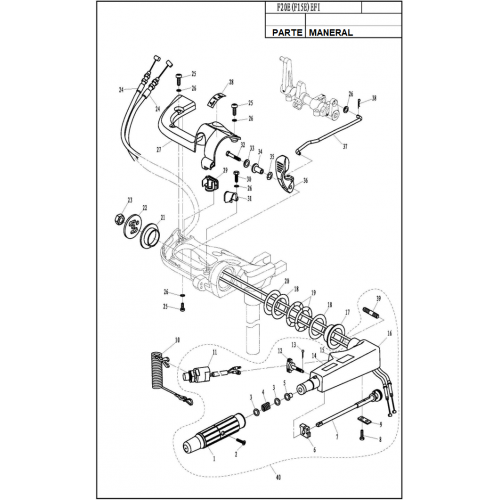

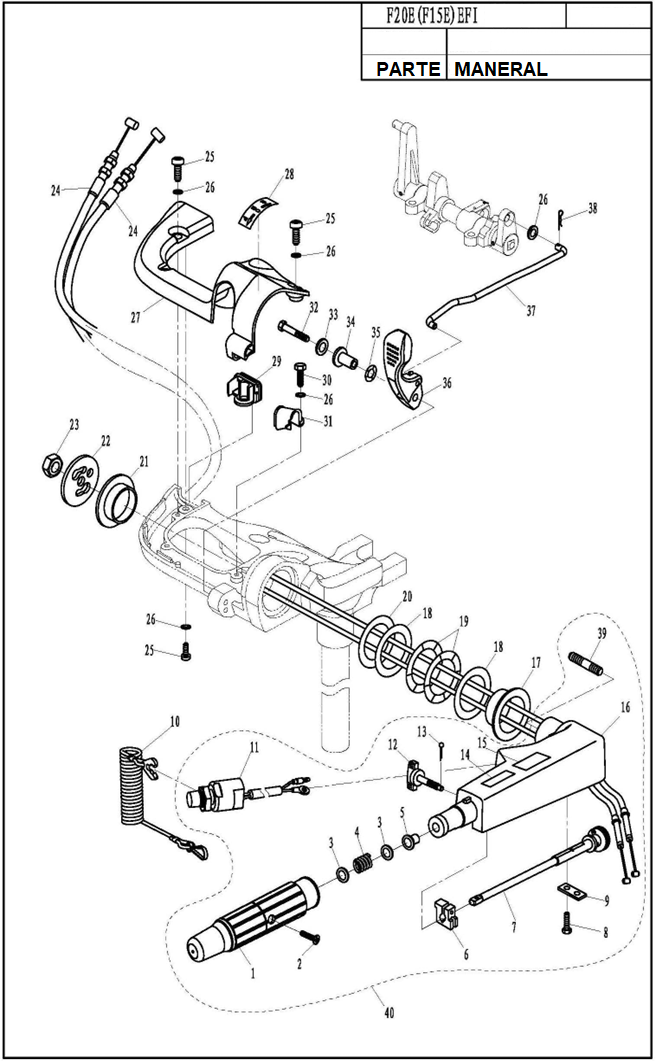

DIAGRAMA DE MANERAL F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE MANERAL F20EFI
- Disponibilidad: In Stock
-
$0,00MXN
- Sin impuestos: $0,00MXN
