| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F15-00000006 | PIN 6x12 | 2 | 93606-12019 |
| 2 | F20-02020001 | SEAT, EXHAUST MANIFOLD | 1 | 6AH-41137-00-5B |
| 3 | F4-04000006 | GASKET, DRAIN BOLT | 1 | 90201-08818 |
| 4 | GB/T5783-M8x14 | BOLT M8x14 | 1 | |
| 5 | F15-04000008 | OIL SEAL 13x25x6 | 1 | 93101-13018 |
| 6 | F20-02020002 | GASKET, EXHAUST SEAT | 1 | 6AH-15312-00 |
| 7 | F20-02020100 | OIL FILTER ASSY | 1 | 6AH-13411-00 |
| 8 | GB/T97.1-6 | WASHER 6 | 8 | 92995-06600 |
| 9 | GB/T5783-M6x16 | BOLT M6x16 | 2 | |
| 10 | F20-02010100 | CLAPBOARD, EXHAUST | 1 | |
| 11 | F20-02010102 | GASKET, CLAPBOARD | 1 | 6AH-45115-00 |
| 12 | F20-02010101 | CLAPBOARD, EXHAUST | 1 | 6AH-45126-00 |
| 13 | F20-02010103 | RUBBER TUBE, CLAPBOARD | 1 | 6AH-45135-00 |
| 14 | F15-00000013 | PIN 4x12 | 4 | 93604-10M03 |
| 15 | F20-02010001 | OIL SUMP | 1 | 6AH-15311-00-5B |
| 16 | GB/T97.1-8 | WAHSER 8 | 14 | 92995-08100 |
| 17 | GB/T9074.14-M8X30 | BOLT M8x30 | 8 | |
| 18 | GB/T5782-M8x85 | BOLT M8x85 | 6 | |
| 19 | HT2.5x50 | NYLON CLAMP 2.5x50 | 1 | |
| 20 | F20-02010002 | JACKET, OIL DRAIN | 1 | |
| 21 | F15-04000003 | GASKET, DRAIN BOLT | 1 | 90430-14M09 |
| 22 | F15-04000002 | BOLT, DRAIN | 1 | 90340-14M00 |
| 23 | F20-02010004 | GASKET, EXHAUST PIPE | 1 | 6AH-41134-00 |
| 24 | F20-02010003L | PIPE, EXHAUST L | 1 | 6AH-14711-10-5B |
| F20-02010003S | PIPE, EXHAUST S | 6AH-14711-00-CA | ||
| 25 | GB/T9074.14-M6X25 | BOLT M6x25 | 4 | 97095-06025-00 |
| 26 | F20-02010005 | GASKET, EXHAUST PIPE | 1 | 6AH-41138-00 |
| 27 | F20-02000001L | UPPER CASING L | 1 | |
| F20-02000001S | UPPER CASING S | 6AH-45111-00-09 | ||
| 28 | F20-02000003 | SEAL, CAMSHAFT | 1 | 90480-14M54 |
| 29 | F20-02000004 | PLATE, RUBBER | 1 | 68T-45321-00 |
| 30 | GB/T5783-M6x10 | BOLT M6x10 | 1 | |
| 31 | GB/T893.1-30 | CIRCLIP 30 | 1 | 93420-30042 |
| 32 | T40-02000004 | RUBBER BUSH | 1 | 66T-45318-00 |
| 33 | TE15-02000016 | BUSH, DRIVE SHAFT | 1 | 6B4-45318-00 |

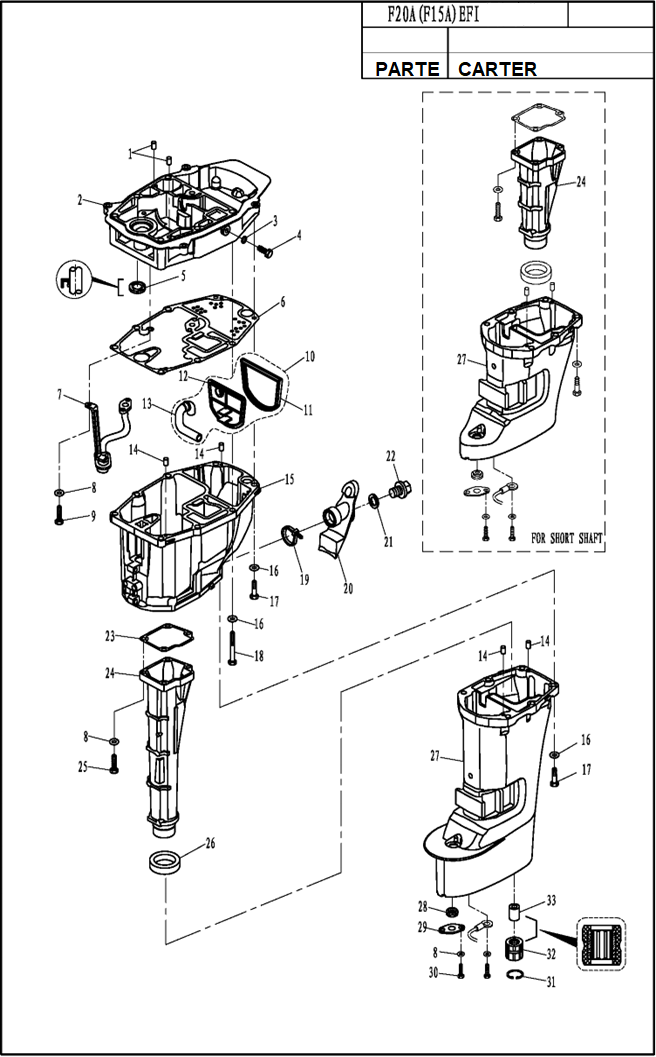

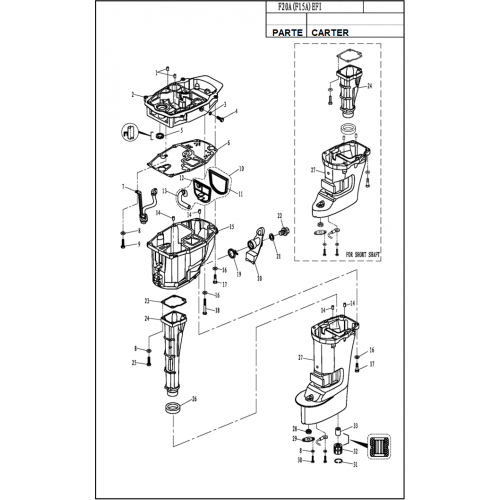

DIAGRAMA DE CARTER F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE CARTER F20EFI
