| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F20-04000001E | LOWER CASING | 1 | |
| 2 | F4-03000023 | SCREW PLUG | 3 | 90340-08002 |
| 3 | F4-03000024 | GASKET, SCREW PLUG | 3 | 90430-08020 |
| 4 | GB/T276-6205C3 | BEARING 6205C3 | 2 | 93306-205YD |
| 5 | F20-04000100E | FORWARD GEAR ASSY | 1 | |
| 6 | F15-06070004 | PIN, CLUTCH | 1 | 90250-05010 |
| 7 | F20-04050002E | CLUTCH, DOG | 1 | |
| 8 | F15-06070005 | RING, CLUTCH | 1 | 648-45633-00 |
| 9 | F15-06070006 | PLUNGER, SHIFT ROD | 1 | 650-45635-00 |
| 10 | F15-06070002 | SPRING, CLUTCH | 1 | 90501-14M06 |
| 11 | F20-04050001E | SHAFT, PROPELLER | 1 | |
| 12 | F20-04050000E | PROPELLER SHAFT ASSY | 1 | |
| 13 | F15-06070007 | WASHER, REVERSE GEAR | 1 | 90201-17682 |
| 14 | F20-04060003E | GEAR, REVERSE | 1 | |
| 15 | GB/T276-6205C3 | BEARING 6205C3 | 1 | 93306-205YD |
| 16 | F20-04060002E | O-RING 60.2x2.4 | 1 | |
| 17 | F20-04060001E | COVER, LOWER CASING | 2 | |
| 18 | IKO-TAI1720Z | NEEDLE BEARING 1720 | 2 | |
| 19 | F15-06080004 | OIL SEAL 17x30x6 | 1 | 93101-17054 |
| 20 | F20-04060000E | COVER ASSY, UPPER CASING | 2 | |
| 21 | GB/T97.1-6 | WASHER 6 | 2 | 92995-06600 |
| 22 | GB/T9074.14-M6X20 | BOLT M6x20 | 1 | 97095-06020-00 |
| 23 | F20-04000004E | GASKET, DRIVER SHAFT BASE | 1 | |
| 24 | IKO-TAI1720Z | NEEDLE BEARING 1720 | 1 | |
| 25 | F20-04010001E | BASE, DRIVE SHAFT | 2 | |
| 26 | F15-06020004 | O-RING | 93210-06ME6 | |
| 27 | GB/T97.1-8 | WAHSER 8 | 92995-08100 | |
| 28 | GB/T5783-M8X25 | BOLT M8x25 | 97075-08025-00 | |
| 29 | F15-06020003 | OIL SEAL 20x30x6 | 93101-20048 | |
| 30 | F20-04000005E-1 | SHIM T:0.10mm | 1 | |
| F20-04000005E-2 | SHIM T:0.15mm | 1 | ||
| F20-04000005E-3 | SHIM T:0.30mm | 1 | ||
| F20-04000005E-5 | SHIM T:0.50mm | 1 | ||
| 31 | F20-04030001EL | DRIVE SHAFT L | 1 | |
| F20-04030001ES | DRIVE SHAFT S | 1 | ||
| 32 | GB/T276-6302 | BEARING 6302 | 1 | |
| 33 | F15-06040002 | BUSH, DRIVER SHAFT | 2 | |
| 34 | F20-04030000EL | DRIVE SHAFT ASSY L | 2 | |
| F20-04030000ES | DRIVE SHAFT ASSY S | 1 | ||
| 35 | F15-06000013 | WOODRUFF KEY | 1 | 63V-44338-00 |
| 36 | F20-04000002 | OUTER PLATE | 1 | 68T-44323-00 |
| 37 | JASO-F404-31-050 | O-RING 50x3.1 | 1 | |
| 38 | F15-06050000 | IMPELLER ASSY | 2 | 63V-44352-00 |
| 39 | F15-06060002 | INSERT COVER, WATER PUMP | 1 | 63V-44322-00 |
| 40 | F15-00000013 | PIN 4x12 | 1 | 93604-10M03 |
| 41 | F20-04040001 | HOUSING, WATER PUMP | 2 | 6AH-44311-00 |
| 42 | F25-04050004 | SEAL, WATER TUBE | 4 | 6L2-44367-00 |
| 43 | F15-06000014 | FIXED PLATE, WATER PUMP | 1 | 63V-44328-00 |
| 44 | GB/T5782-M8x45 | BOLT M8x45 | 1 | |
| 45 | F20-04020000L | SHIFT CAM SHAFT ASSY L | 1 | 6AH-44150-10 |
| F20-04020000S | SHIFT CAM SHAFT ASSY S | 1 | 6AH-44150-00 | |
| 46 | F20-04000007E | PINION | 1 | |
| 47 | F25-04000006 | NUT, PINION | 1 | 90179-10M14 |

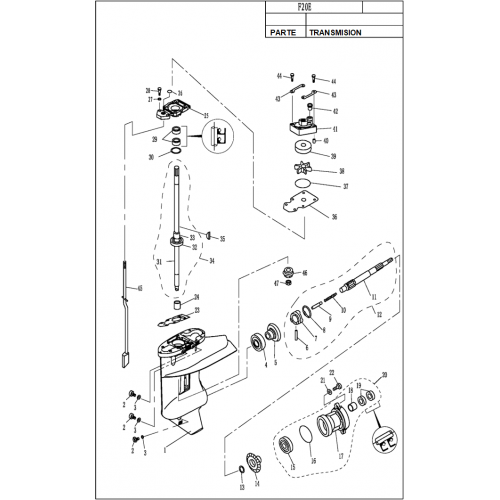

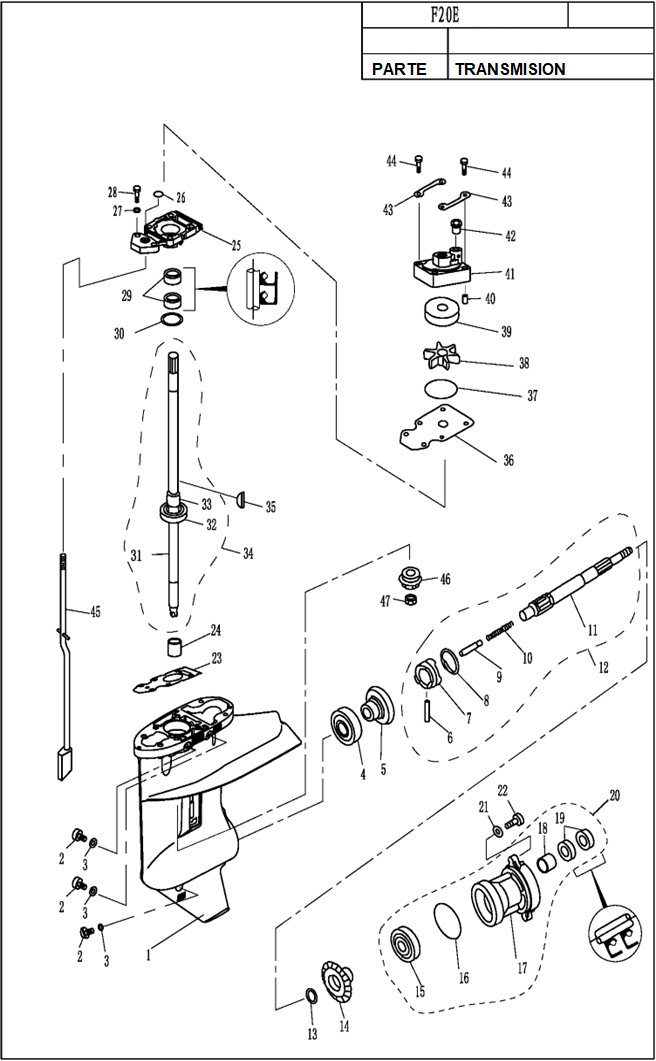

DIAGRAMA DE TRANSMISION F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE TRANSMISION F20EFI
