| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F15-07000006 | NUT, FLY WHEEL | 1 | 90179-16M05 |
| 2 | F15-07000005 | WASHER, FLYWHEEL NUT | 1 | 90201-16M44 |
| 3 | F20-05000500WEFI | FLYWHELL ASSY BW/FW | 1 | |
| F20-05000500MEFI | FLYWHELL ASSY BM | 1 | ||
| 4 | GB/T9074.14-M6X30 | BOLT M6x30 | 3 | |
| 5 | GB/T97.1-6 | WASHER 6 | 8 | 92995-06600 |
| 6 | F20-05000200 | STATOR COIL ASSY BW/FW | 1 | 6AH-85510-00 |
| F20-05000200MEFI | IGNITION COIL ASSY BM | 1 | ||
| 7 | GB/T5783-M5x12 | BOLT M5x12 | 2 | |
| 8 | GB/T97.1-5 | WASHER 5 | 2 | 6Y1-24329-00 |
| 9 | F20-05000100EFI | PULSER COIL ASSY | 1 | |
| 10 | F15-07000004 | WOODRUFF KEY, FLY WHEEL | 1 | 90280-05013 |
| 11 | T40-05000704W | TUBE, FLANGE | 3 | 90387-06289 |
| 12 | F20-05000017EFI-B | FIXED PLATE, CDI UNIT ASSY | 1 | |
| 13 | F20-05001200MEFI | ECU UNIT ASSY BM | 1 | |
| F20-05001200WEFI | ECU UNIT ASSY BW/FW | 1 | ||
| 14 | GB/T9074.14-M6X20 | BOLT M6x20 | 1 | 97095-06020-00 |
| 15 | F20-05000022 | BOLT, FUEL PUMP | 1 | |
| 16 | GB/T9074.14-M6X25 | BOLT M6x25 | 5 | 97095-06025-00 |
| 17 | GB/T96-6 | BIG WASHER 6 | 3 | |
| 18 | T40-05000702W | DAMPER A | 3 | 90480-10M23 |
| 19 | GB/T5783-M6x12 | BOLT M6x12 | 3 | |
| 20 | F20-05000040W | PLATE | 1 | |
| 21 | F20-05000041 | PLATE, WIRE | 1 | |
| 22 | F20-05000400EFI | IGNITION COIL ASSY | 1 | |
| 23 | F20-05000401EFI | PLATE, IGNITION COIL ASSY | 1 | |
| 24 | GB/T5783-M6X16 | BOLT M6x16 | 1 | |
| 25 | F20-05001700MEFI-A | ECU CABLE ASSY, BM | 1 | |
| F20-05001700WEFI-A | ECU CABLE ASSY, BW/FW | 1 | ||
| 26 | T20-06000037W | INCHING SWITCH | 1 | 6H3-82540-01 |
| 27 | F20-05000043MEFI | CAPACITOR PLATE | 1 | |
| 28 | F20-05001500EFI | CAPACITOR ASSY | 1 |

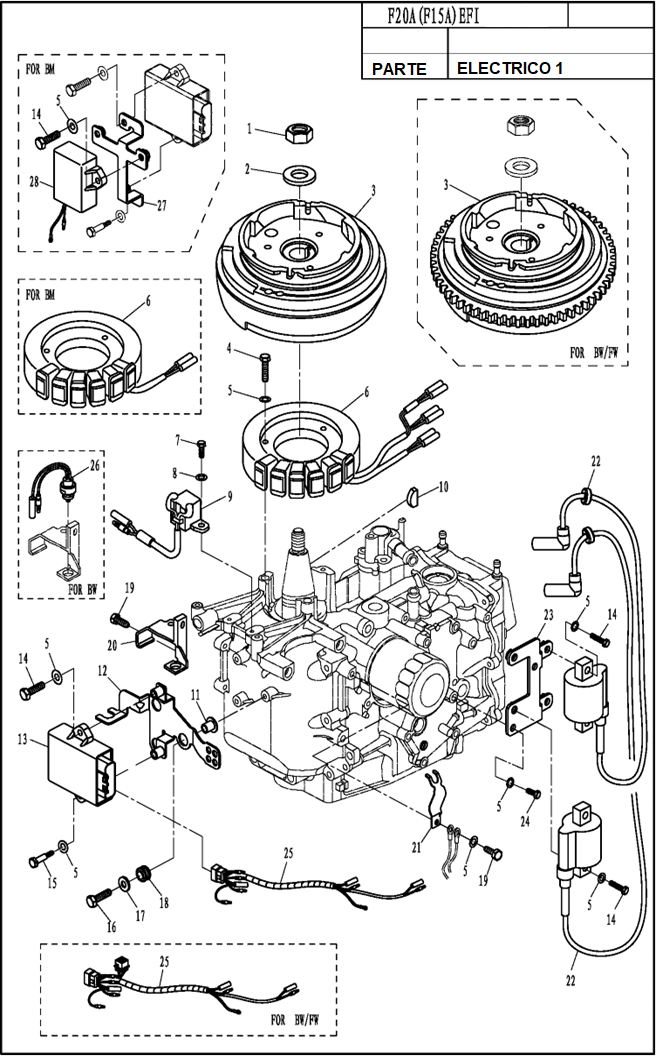

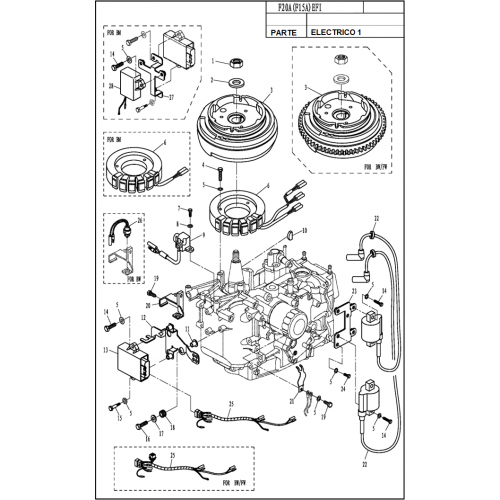

DIAGRAMA ELECTRICO 1 F20EFI
