| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | GB/T6170-M6 | NUT M6 | 2 | 95303-06600 |
| 2 | F20-05000903W | BUSH, RECTIFIER | 2 | |
| 3 | F20-05000902W | DAMPER, BUSH | 2 | |
| 4 | F20-05000901W | PLATE, RECTIFIER FW/BW | 1 | |
| F20-05000901EFI | PLATE, RECTIFIER BM | 1 | ||
| 5 | F40-05000500EFI | RECTIFIER ASSY | 1 | |
| F20-05000900EFI | RECTIFIER ASSY BW/FW | 1 | ||
| 6 | GB/T97.1-6 | WASHER 6 | 7 | 92995-06600 |
| 7 | GB/T93-6 | WASHER, SPRING 6 | 2 | 92995-06100 |
| 8 | GB/T9074.14-M6X30 | BOLT M6x30 | 2 | |
| 9 | GB/T5783-M6x16 | BOLT M6x16 | 2 | |
| 10 | F15-07150001W | FUSE 20A | 1 | 67F-82151-00 |
| 11 | F25-05090100W | FUSE ASSY | 1 | |
| 12 | F15-07150501W | JACKET, POWER CABLE | 2 | |
| 13 | GB/T5783-M6x12 | BOLT M6x12 | 1 | |
| 14 | F20-05000039W | FIXED PLATE, RELAY | 1 | |
| 15 | F15-07150300W | STARTER RELAY ASSY | 1 | 6G1-81941-10 |
| 16 | F15-07150301W | COVER, RELAY | 1 | |
| 17 | F25-05170400W | POWER CABLE, MOTOR | 1 | |
| 18 | F15-07150200W | POWER CABLE ASSY | 2 | 689-82105-13 |
| 19 | GB/T6170-M6 | NUT M6 | 3 | 95303-06600 |
| 20 | GB/T5782-M8x45 | BOLT M8x45 | 2 | |
| 21 | GB/T97.1-8 | WAHSER 8 | 4 | 92995-08100 |
| 22 | GB/T9074.14-M8X35 | BOLT M8x35 | 1 | 90119-08M10 |
| 23 | F20-05000900W | STARTER MOTOR | 1 | 6AH-81800-00 |
| 24 | F20-05000038 | HOLLOW PIN 11x8.5x11 | 2 | |
| 25 | F25-05170201W | JACKET A, POWER CABLE | 1 | |
| 26 | GB/T5783-M8x12 | BOLT M8x12 | 1 | 97313-08012 |
| 27 | F25-05170202W | JACKET B, POWER CABLE | 1 | 682-82119-01 |
| 28 | F20-05000061EFI | IGNITION WIRE ASSY, 10 PIN | 1 | |
| 29 | GB/T9074.14-M6X25 | BOLT M6x25 | 1 | 97095-06025-00 |
| 30 | F40-05091401EFI | BRACKET, MAIN RELAY | 1 | |
| 31 | F40-05091402EFI | DAMPER, MAIN RELAY | 1 | |
| 32 | T40-05000028 | WASHER, IGNITION COIL | 1 | 624-42542-00 |
| 33 | F20-05000044EFI | FIXED PLATE, RELAY | 1 | |
| 34 | F40-05091400EFI | MAIN RELAY | 1 |

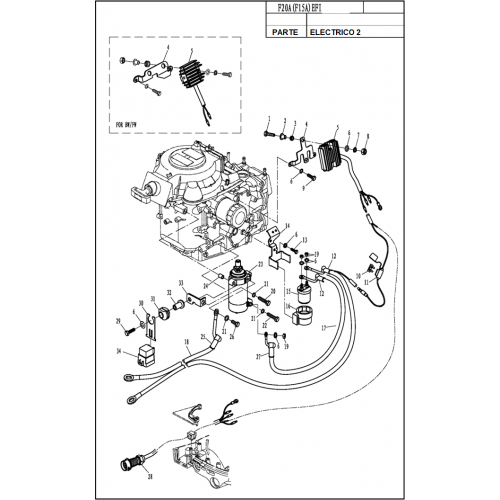

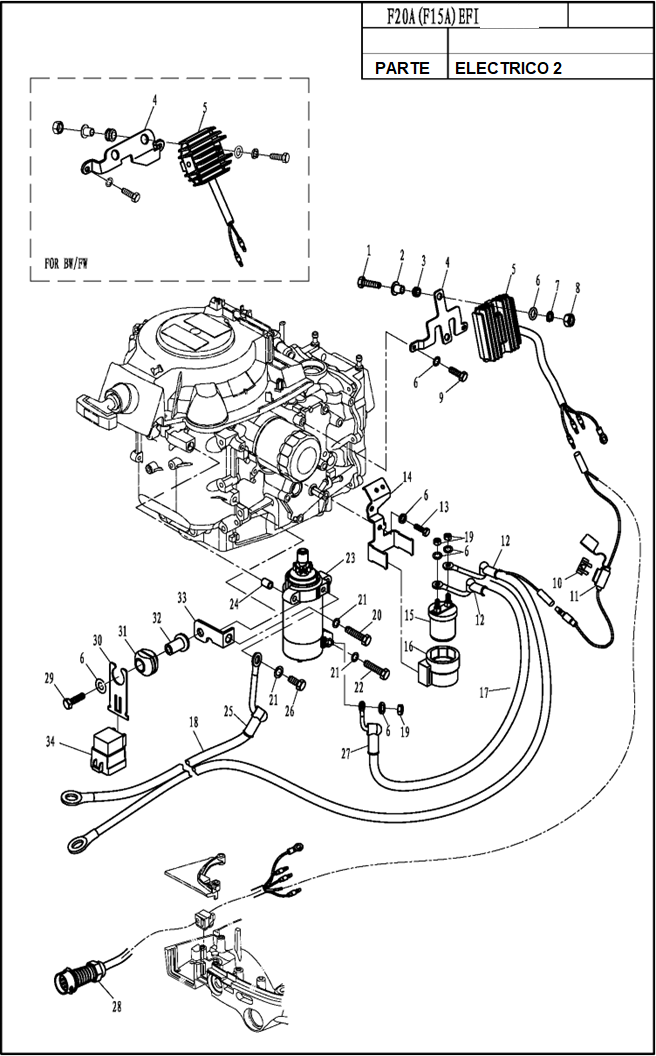

DIAGRAMA ELECTRICO 2 F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA ELECTRICO 2 F20EFI
