| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F20-05000012 | BOLT, INTAKE SILENCER | 1 | 90109-06MA1 |
| 2 | F20-05000011 | DAMPER, INTAKE SILENCER | 1 | 90480-16616 |
| 3 | HT4.2x200 | NYLON CLAMP 4.2x200 | 1 | |
| 4 | GB/T5782-M6x100 | BOLT M6x100 | 2 | |
| 5 | GB/T97.1-6 | WASHER 6 | 8 | 92995-06600 |
| 6 | F20-05000800EFI | INTAKE SILENCER ASSY | 1 | |
| 7 | F20-05000031 | PIPE, BREATHER | 1 | |
| 8 | F20-05000032 | PIPE JACKET, BREATHER | 1 | |
| 9 | GB/T3452.1-35x2 | O-RING 35x2 | 1 | |
| 10 | F20-05001100EFI | THROTTLE ASSY | 1 | |
| 11 | F20-05000008 | GASKET, CARBURETOR | 2 | 6AH-13646-00 |
| 12 | F20-05000009 | SPACER, CARBURETOR | 1 | 6AH-14271-00 |
| 13 | GB/T5782-M6x55 | BOLT M6x55 | 4 | |
| 14 | GB/T5783-M6x10 | BOLT M6x10 | 2 | |
| 15 | T36-04000023 | CLAMP | 2 | 90465-08M99 |
| 16 | F20-05000007EFI | MANIFOLD, INTAKE | 1 | |
| 17 | F25-05050016 | PIN | 2 | 93605-14143 |
| 18 | F20-05000006 | GASKET, INTAKE MANIFOLD | 1 | 6AH-13645-00 |
| 19 | F40-05000003 | CLAMP | 1 | |
| 20 | GB/T5783-M6X16 | BOLT M6x16 | 1 | |
| 21 | F20-05000039EFI | MAT/MAP SENSOR | 1 |

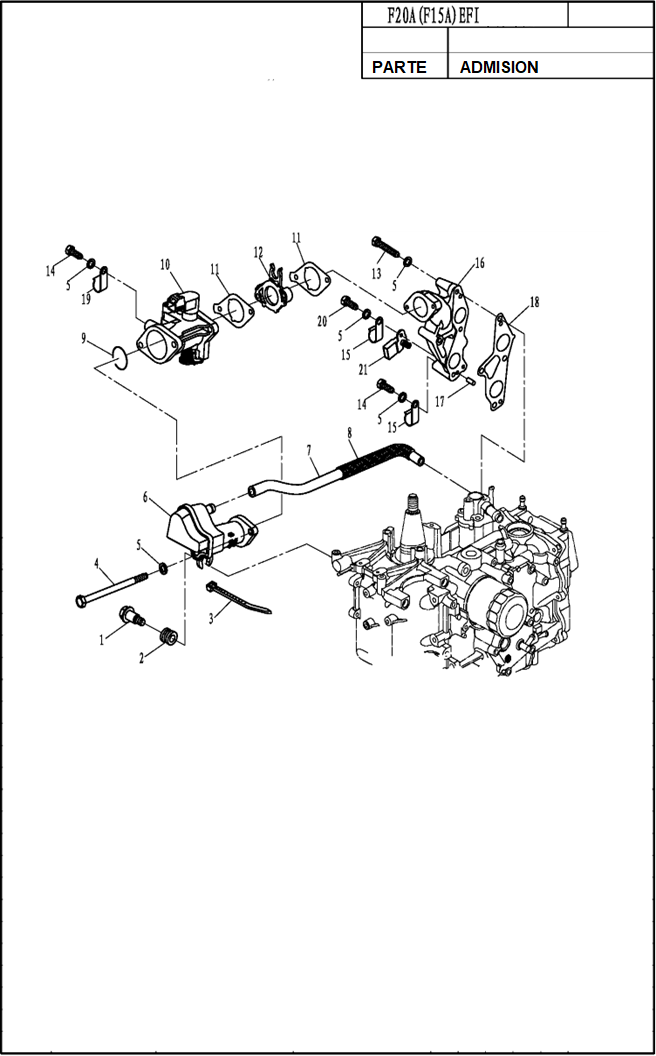

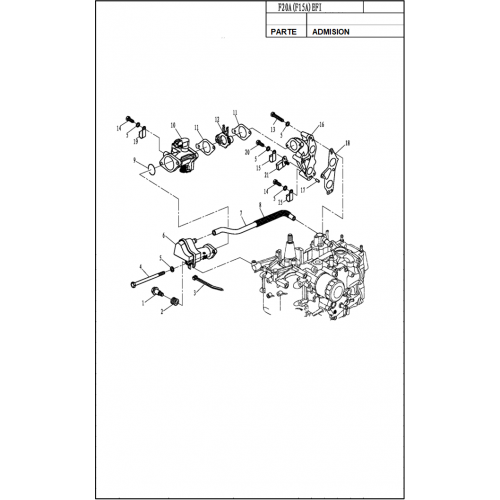

DIAGRAMA DE ADMISION F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE ADMISION F20EFI
