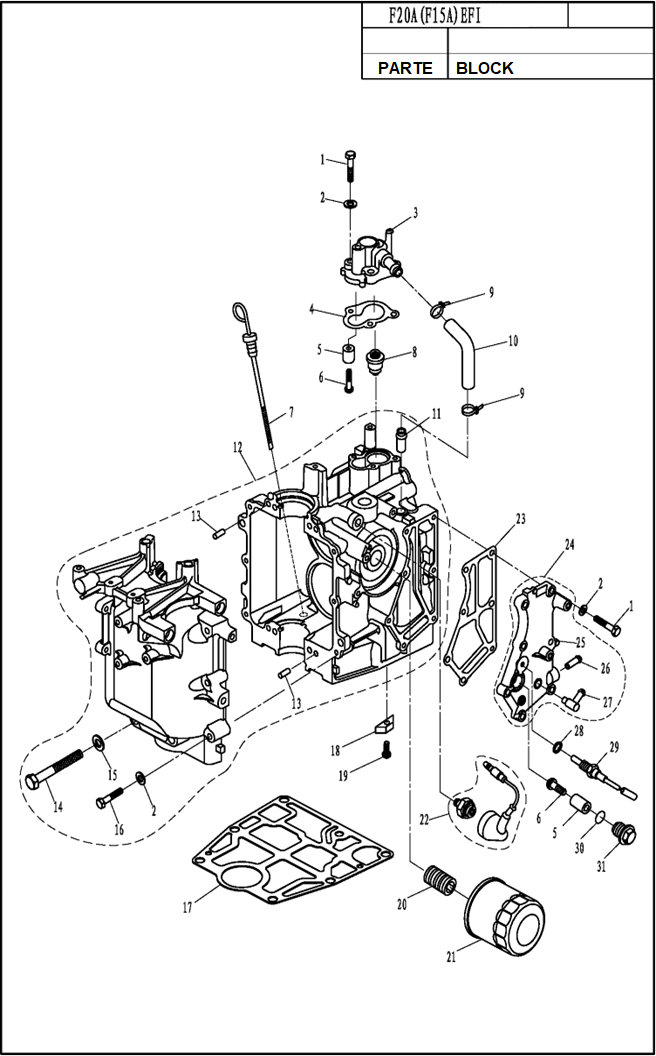

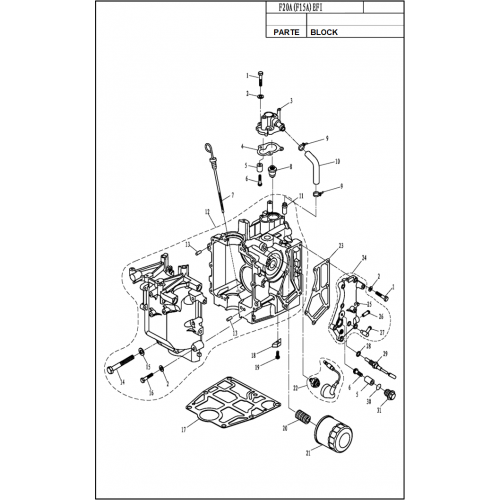

| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. | | 1 | GB/T9074.14-M6X25 | BOLT M6x25 | 10 | 97095-06025-00 | | 2 | GB/T97.1-6 | WASHER 6 | 17 | 92995-06600 | | 3 | F20-05000700 | COVER, THERMOSTAT | 1 | 6AH-12413-00-1S | | 4 | F20-05000702 | GASKET, THERMOSTAT | 1 | 6AH-12414-00 | | 5 | F4-04070003 | ANODE, THERMOSTAT | 2 | 68D-E1325-00 | | 6 | GB/T818-M5x25 | SCREW M5x25 | 2 | | | 7 | F20-00000100 | DIPSTICK ASSY | 1 | 6AH-15362-00 | | 8 | T15-04000010 | THERMOSTAT | 1 | 688-12411-11 | | 9 | HT2.5x50 | NYLON CLAMP 2.5x50 | 2 | | | 10 | F20-05000016 | HOSE | 1 | | | 11 | F20-05010002 | NIPPLE | 1 | | | 12 | F20-05010000 | CRANKCASE ASSY | 1 | 6AH-15100-00-1S | | 13 | F15-00000006 | PIN 6x12 | 4 | 93606-12019 | | 14 | T20-06000028 | BOLT M8x65 | 4 | | | 15 | GB/T97.1-8 | WAHSER 8 | 4 | 92995-08100 | | 16 | GB/T5782-M6X40 | BOLT M6x40 | 6 | | | 17 | F20-00000010 | GASKET, ENGINE | 1 | 6AH-11351-00 | | 18 | F15-07010026 | ANODE, EXHAUST COVER | 1 | 6E5-11325-00 | | 19 | GB/T820-M4x12 | SCREW M4x12 | 1 | | | 20 | F15-07010003 | BOLT UNION | 1 | 90401-20M00 | | 21 | F15-07010023 | OIL CLEANER | 1 | 5GH-13440-00 | | 22 | F15-07010100 | OIL PRESSURE SENSOR | 1 | | | 23 | F20-05000602 | GASKET, OUTER COVER | 1 | 6AH-41114-00 | | 24 | F20-05000600EFI | EXHAUST OUTER COVER ASSY | 1 | | | 25 | F20-05000601EFI | OUTER COVER, EXHAUST | 1 | | | 26 | F4-04010102A | PIPE, JOINT | 1 | | | 27 | F15-04000005 | PIPE, JOINT | 1 | 676-11372-00 | | 28 | GB/T3452.1-8x1.9 | O-RING 8x1.9 | 1 | | | 29 | F40-05000400 | THERMOSENSOR ASSY | 1 | | | 30 | GB/T3452.1-13x2 | O-RING 13x2 | 1 | | | 31 | F20-05030009 | BOLT, ANODE | 1 | |
|
