| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F20-05000033 | COVER, BELT | 1 | |
| 2 | F20-05000036 | PLUG | 1 | 90480-06M19 |
| 3 | F20-05000034 | DAMPER, BELT COVER | 3 | 90480-10627 |
| 4 | GB/T1099-3x5x13 | WOODRUFF KEY 3x5x13 | 2 | |
| 5 | F20-05000027 | BELT PULLEY, TIMING | 1 | 6AH-11536-00 |
| 6 | F20-05000028 | COVER, TIMING BELT | 1 | 6AH-11557-00 |
| 7 | F20-05000029 | NUT, TIMING BELT | 1 | 90170-30003 |
| 8 | F20-05000003 | TIMING BELT | 1 | 6AH-46241-00 |
| 9 | GB/T9074.14-M8X25 | BOLT M8x25 | 1 | 90119-08m51 |
| 10 | F20-05030013 | WASHER, DRIVEN PULLEY | 1 | 90201-08784 |
| 11 | F20-05030012 | DRIVEN PULLEY | 1 | 6AH-11537-00-94 |
| 12 | F20-05030011 | WASHER, DRIVEN PULLEY | 1 | 90201-15423 |
| 13 | F20-05030005 | OIL SEAL 22x35x7-R | 1 | 93102-22009 |
| 14 | F20-05030200 | CAMSHAFT ASSY | 1 | 6AH-12170-00 |
| 15 | F20-05030010 | GASKET, OIL PUMP | 1 | 6AH-13329-00 |
| 16 | F20-05030400 | OIL PUMP ASSY | 1 | 6AH-13300-00 |
| 17 | F20-05030401 | BODY, OIL PUMP | 1 | |
| 18 | F20-05030403 | WASHER | 1 | |
| 19 | F20-05030408 | SEAL RING | 1 | |
| 20 | F20-05030402 | SHAFT, OIL PUMP | 1 | |
| 21 | GB/T309-3x16.8 | NEEDLE BEARING 3x16.8 | 1 | |
| 22 | F15-07110003 | PLUG | 1 | |
| 23 | F20-05030407 | SPRING | 1 | |
| 24 | F20-05030404 | INNERROTOR, OIL PUMP | 1 | |
| 25 | F20-05030405 | OUTERROTOR, OIL PUMP | 1 | |
| 26 | F20-05030406 | COVER, OIL PUMP | 1 | |
| 27 | GB/T823-M6x16 | SCREW M6x16 | 2 | |
| 28 | GB/T97.1-6 | WASHER 6 | 3 | 92995-06600 |
| 29 | GB/T9074.14-M6X35 | BOLT M6x35 | 3 |

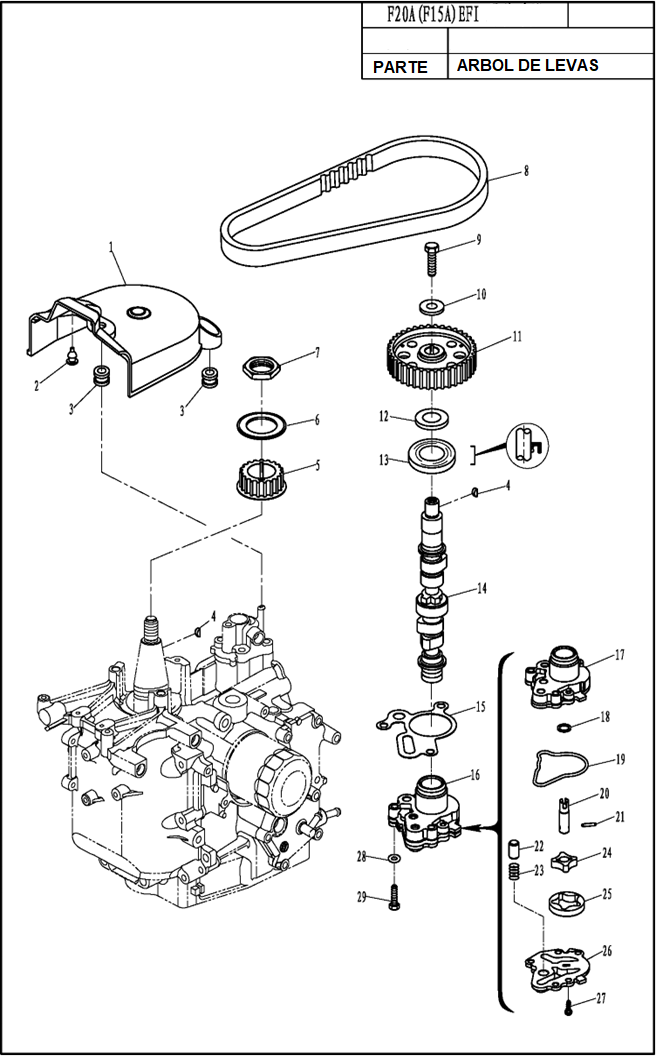

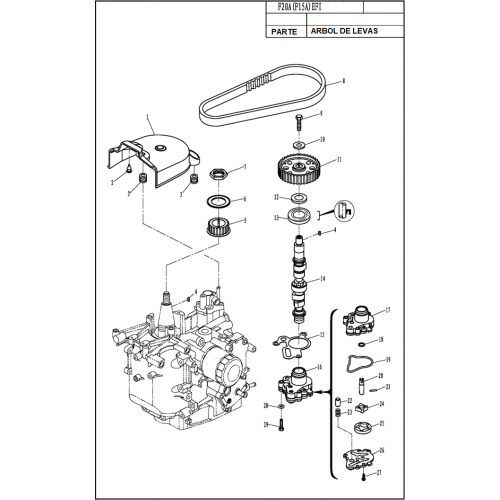

DIAGRAMA DE ARBOL DE LEVAS F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE ARBOL DE LEVAS F20EFI
