| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F20-05030001 | INTAKE VALVE | 2 | 6AH-12111-00 |
| 2 | F25-05050003 | SEAT, VALVE SPRING | 4 | 62Y-12116-00 |
| 3 | 166F-010003 | OIL SEAL | 4 | 51Y-12119-00 |
| 4 | F20-05030004 | SPRING, VALVE | 4 | 3YF-12113-00 |
| 5 | F15-07040006 | SEAT, VALVE SPRING | 4 | |
| 6 | F15-07040007 | SEAT, VALVE SPRING | 8 | 30X-12118-00 |
| 7 | F15-07040304 | LOCKED NUT | 4 | 62Y-12158-00 |
| 8 | F15-07040303 | SCREW, ADJUSTING | 4 | 62Y-12159-00 |
| 9 | F20-05030002 | VALVE, EXHAUST | 2 | 6AH-12121-00 |
| 10 | F20-05030007 | SPRING, ROCKER ARM | 2 | 90501-120A5 |
| 11 | F20-05030301 | ARM, ROCKER | 4 | 6AH-12151-00 |
| 12 | F20-05030006 | GUIDE, VALVE | 2 | 90387-13006 |
| 13 | F15-07040015 | SHAFT, ROCKER ARM | 1 | 66M-12146-00 |
| 14 | F20-05030008 | PLATE, ROCKER ARM | 1 | 6AH-12279-00 |
| 15 | GB/T5783-M6X12 | BOLT M6x12 | 1 |

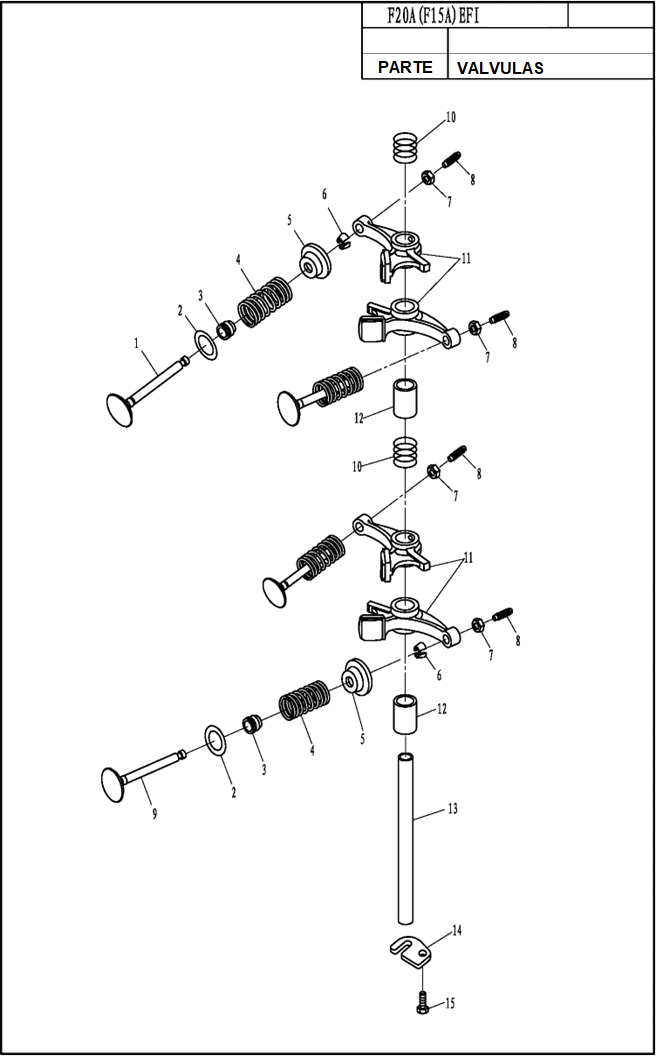

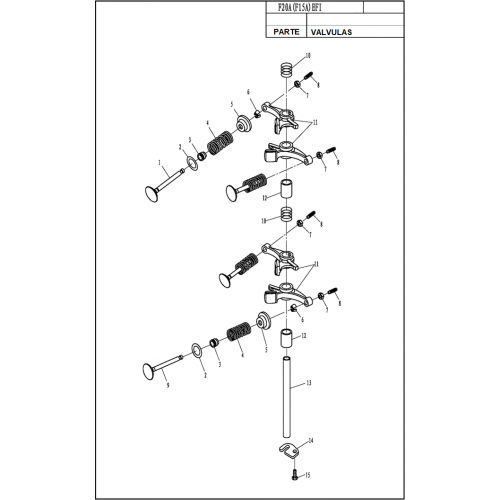

DIAGRAMA DE VALVULAS F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA DE VALVULAS F20EFI
