| SN. | PART NO. | DESCRIPTION-ENGLISH | QTY | OEM PART NO. |
| 1 | F20-05001800EFI | ELECTRIC FUEL PUMP ASSY | 1 | |
| 2 | F20-05001801EFI | BODY, ELECTRIC FUEL PUMP | 1 | |
| 3 | F20-05001802EFI | NOZZLE A, FUEL PUMP | 2 | |
| 4 | F20-05001803EFI | NOZZLE B, FUEL PUMP | 2 | |
| 5 | F20-05001804EFI | SEAT, NEEDLE VALVE | 1 | |
| 6 | F20-05001805EFI | HOSE | 1 | |
| 7 | GB/T818-M4x16 | SCREW M4x16 | 4 | |
| 8 | GB/T93-4 | WASHER,SPRING 4 | 4 | |
| 9 | F20-05001806EFI | NEEDLE VALVE | 1 | |
| 10 | F20-05001807EFI | FLOAT | 1 | |
| 11 | F20-05001808EFI | PIN, FLOAT | 1 | |
| 12 | GB/T818-M4x8 | SCREW M4x8 | 4 | 68580-04008 |
| 13 | F20-05001809EFI | SEAL, FUEL CAP | 1 | |
| 14 | F20-05001810EFI | FUEL CAP ASSY | 1 | |
| 15 | F20-05001811EFI | HOSE 3x5x240 | 1 | |
| 16 | F20-05001812EFI | O-RING, DRAIN BOLT | 1 | |
| 17 | F20-05001813EFI | SCREW, DRAIN | 1 | |
| 18 | F20-05001814EFI | FILTER, FUEL PUMP | 1 | |
| 19 | F20-05001815EFI | RUBBER PAD, FUEL PUMP | 1 | |
| 20 | F20-05001816EFI | TUBE, FUEL PUMP | 1 | |
| 21 | F20-05001817EFI | ELECTRIC FUEL PUMP | 1 | DM4785 |
| 22 | F20-05001818EFI | JACKET, WIRE | 1 | |
| 23 | F20-05001819EFI | O-RING, FUEL PUMP | 1 |

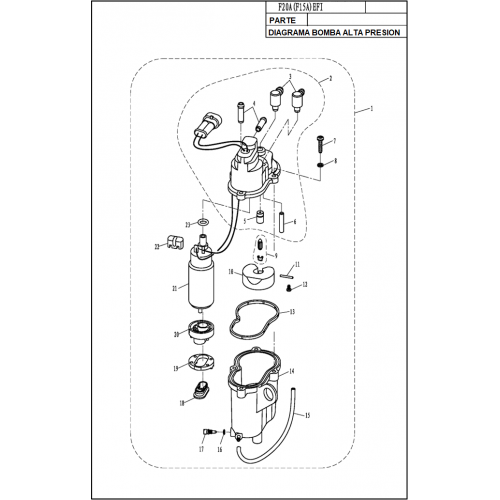

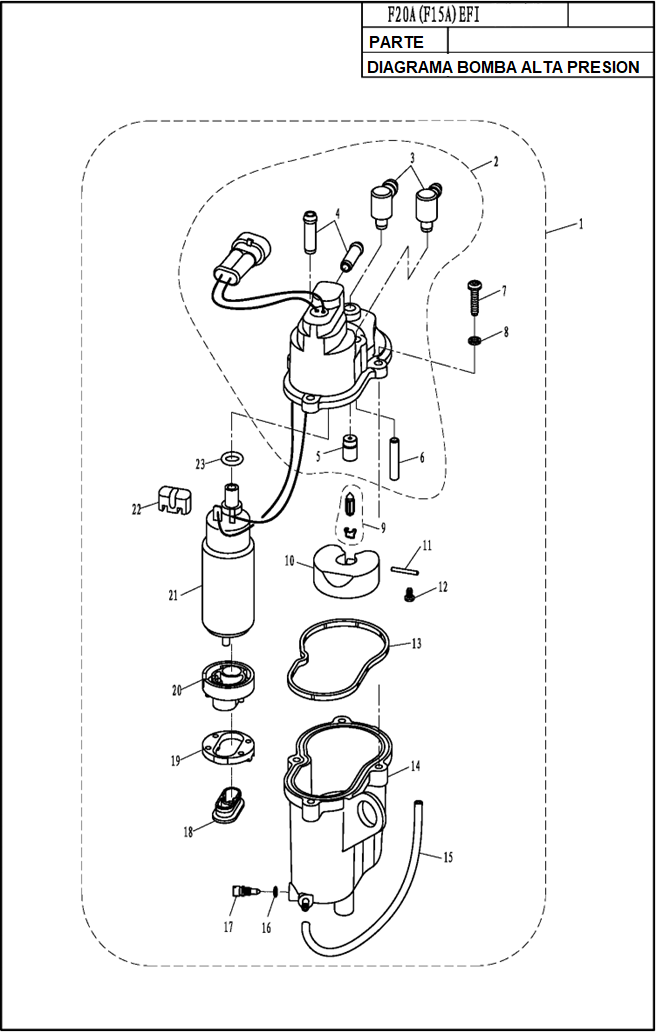

DIAGRAMA BOMBA ALTA PRESION F20EFI
- Marcas DERMA MARINE
- Código: DIAGRAMA BOMBA ALTA PRESION F20EFI
