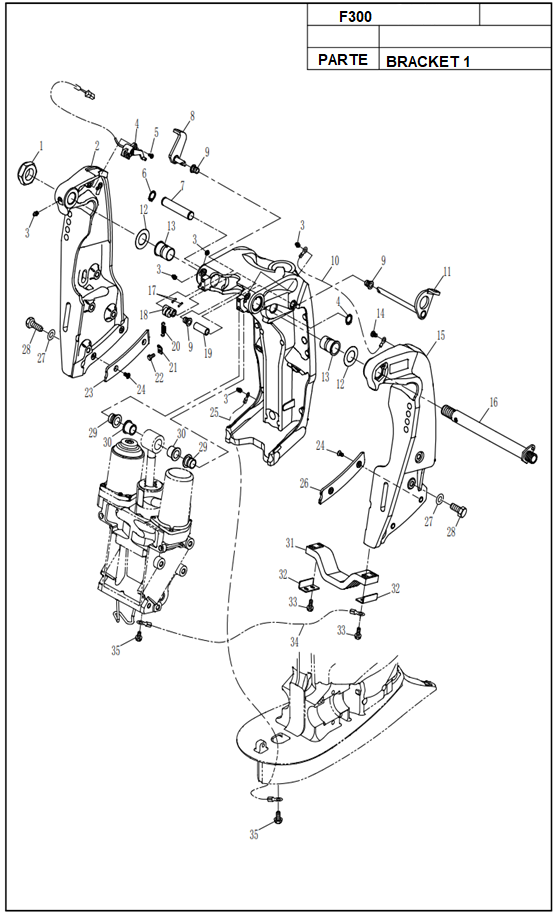

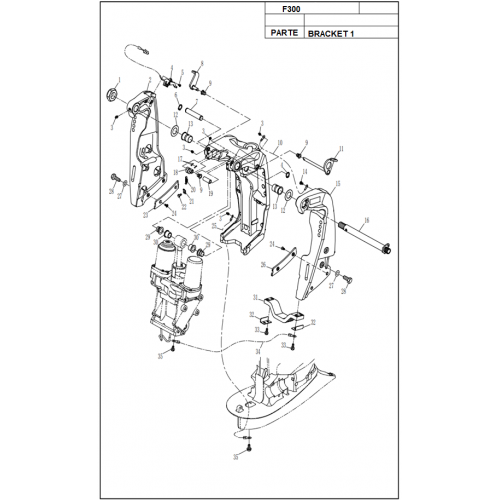

F300 DIAGRAMA DE PARTES
| SN. | PART NO. | DESCRIPTION | QTY | OEM PART NO. |
| 1 | F15-01010007 | NUT | 1 | 90185-22043 |
| 2 | F300-01010002 | BRACKET,CLAMP(RIGHT) | 1 | 69J-43112-03-8D |
| 3 | JB/T9740.1-M6 | NOPPLE,GREASE | 5 | 93700-06M03 |
| 4 | F300-05070460 | TILT SENSOR ASSY | 1 | 6BR-82563-01 |
| 5 | GB/T818-M6x14 | SCREW M6x14 | 2 | 90159-06M19 |
| 6 | GB/T894.1-18 | CIRCLIP 18 | 2 | 93410-18M02 |
| 7 | F115-00000017 | PIN UPPER SHOCK MOUN | 1 | |
| 8 | F300-01010102 | SUPPORT ASSY | 1 | |
| 9 | T85-01010203 | BUSHING,NYLON | 3 | 90386-10M16 |
| 10 | T85-01010003 | WIRE,LEAD A | 1 | 6E5-82148-00 |
| 11 | T85-01010204 | SUPPORT ASSY B | 1 | 6H1-43181-10 |
| 12 | F115-01010003 | STUD LINER | 2 | 90201-26M59 |
| 13 | F115-01010004 | BUSHING | 2 | 90386-25M31 |
| 14 | GB/T818-M6x10 | SCREW M6x10 | 1 | 97880-06012 |
| 15 | F300-01010001 | BRACKET,CLAMP(LEFT) | 1 | 691-4311103-90 |
| 16 | F300-01010200 | DOUBLE-EDGED TUBE ASSY | 1 | 6R3-43131-00 |
| 17 | GB/T879.3-3x16 | PIN φ3x16 | 2 | |
| 18 | T85-01010206 | COLLAR,DISTANCE ASSY | 1 | 6G5-43148-00 |
| 19 | F300-01010103 | TUBE,SUPPORT | 1 | 90387-1005 |
| 20 | F300-01010104 | TENSION SPRING | 1 | 90506-16003 |
| 21 | T85-01010208 | TENSION SPRING,BRACKET | 1 | 6G5-43144-00 |
| 22 | GB/T5783-M6x12 | BOLT M6x12 | 1 | 90119-06M73 |
| 23 | F300-01010008 | WAER-REDUCING TABLET(RIGHT) | 1 | |
| 24 | GB/T818-M6X10 | SCREW M6x10 | 4 | 97880-06012 |
| 25 | F300-02000003 | WIRE,LEAD | 1 | |
| 26 | F300-01010007 | WAER-REDUCING TABLET(LEFT) | 1 | 614-43132-00 |
| 27 | GB/T97.1-10 | WASHER 10 | 8 | 90201-10120 |
| 28 | T85-00000012 | BOLT M10x1.25x45 | 8 | 90105-10M67 |
| 29 | T85-00000017 | BUSH A | 2 | 90386-18M35 |
| 30 | T85-00000018 | BUSH B | 2 | 90386-18M63 |
| 31 | F300-01010003 | ANODE | 1 | 6G5-45251-02 |
| 32 | F300-01010004 | PLATE,ANODE | 2 | 6G5-44526-00 |
| 33 | GB/T9074.14-M6x25 | BOLT M6x25 | 4 | 97095-06025-00 |
| 34 | T85-01010209 | WIRE,LEAD B | 1 | 6H1-82148-00 |
| 35 | GB/T9074.14-M6x10 | BOLT M6x10 | 2 |
