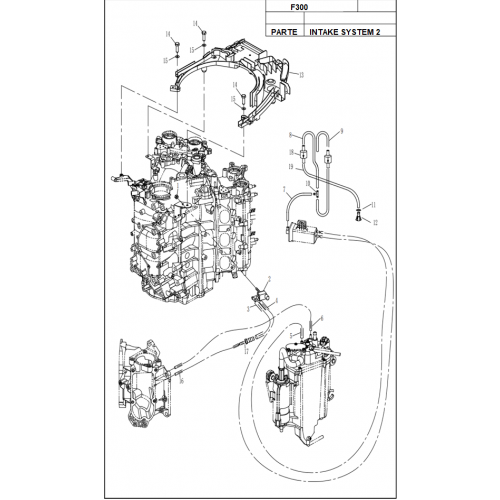

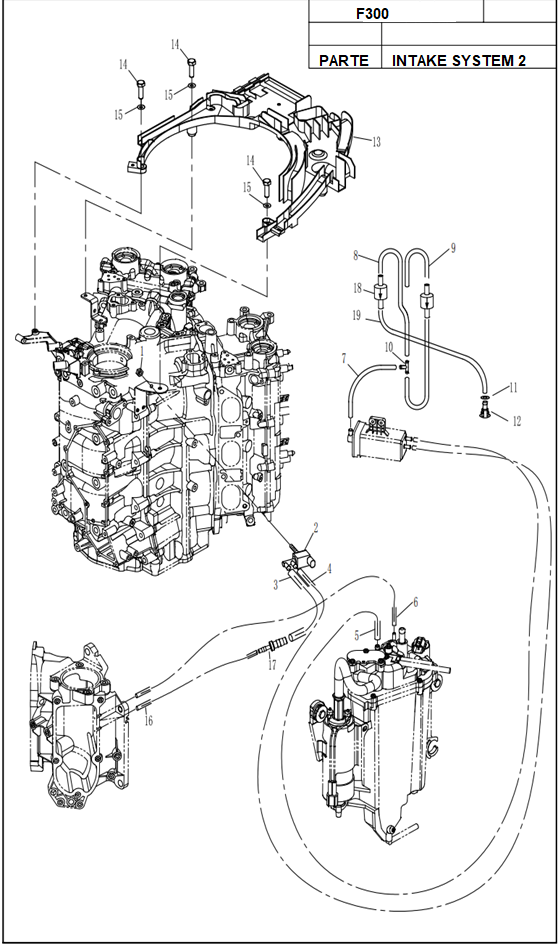

F300 DIAGRAMA DE PARTES
| SN. | PART NO. | DESCRIPTION | QTY | OEM PART NO. |
| 1 | GB/T6184-M6 | LOCK NUT M6 | 1 | 95680-06100 |
| 2 | F115-05000054 | RELAY, CANSITER | 1 | |
| 3 | F300-05050309-1 | PIPE 1 | 1 | |
| 4 | F300-05050309-2 | PIPE 2 | 1 | |
| 5 | F300-05050309-3 | PIPE 3 | 1 | |
| 6 | F300-05050309-4 | PIPE 4 | 1 | |
| 7 | F300-05050309-5 | PIPE 5 | 1 | |
| 8 | F300-05050309-6 | PIPE 6 | 1 | |
| 9 | F300-05050309-7 | PIPE 7 | 1 | |
| 10 | F60-05000054 | THREE WAY 6.5 | 1 | |
| 11 | F115-03000014-1 | WASHER, WATER NOZZLE | 1 | |
| 12 | F115-03000014 | PIPE, JOINT | 1 | |
| 13 | F300-05070505 | HARNESS PROTECTION BRACKET | 1 | 6CB-82589-01 |
| 14 | GB/T5783-M6x20 | BOLT M6x20 | 5 | |
| 15 | GB/T97.1-6 | WASHER 6 | 5 | 92995-06600 |
| 16 | F300-05050309-8 | PIPE 8 | 1 | |
| 17 | F300-05050500 | Variable reducer two-way | 1 | |
| 18 | T5-04000200 | Check valves ASSY | 2 | |
| 19 | F300-05050309-9 | PIPE 9 | 1 |
F300 INTAKE SYSTEM 2
- Código: F300 INTAKE SYSTEM 2
- Disponibilidad: SOBRE PEDIDO VERIFICAR PRECIO
-
$0,00MXN
- Sin impuestos: $0,00MXN
